Analyzing Apple Computer’s AppleTalk

Analyzing Apple Computer’s AppleTalk
7.4 AppleTalk Transport Layer Protocols
7.6 Protocol Analysis with AppleTalk

Apple Computer’s AppleTalk is an operating system with an architecture designed using the same philosophy behind developing the Apple Macintosh: to provide an easy-to-use user interface with “plug-and-play” networking capabilities. The concept of “plug-and-play” was designed into the Macintosh itself, since there is a LocalTalk network interface built into the computer. For example, a Mac connected to a LaserWriter printer could be easily configured with only a twisted-pair cable between them. This type of twisted-pair connection has come to be called LocalTalk, where the network architecture itself is referred to as AppleTalk.

There are many companies supporting AppleTalk networks. For example, Farallon Computing Inc., duPont Electronics, and Dayna Communications offer twisted-pair and fiber-optic cabling alternatives. Many firms, including Apple, Adaptec Inc., Everex, Racal-Interlan, Standard Microsystems Corporation, and Thomas-Conrad Corporation, supply network interface cards (NICs) for Ethernet/IEEE 802.3, token ring (IEEE 802.5), and ARCNET networks. Repeaters are available from such firms as TOPS Division, Sun Microsystems Inc., and Hayes Microcomputer Products Inc. Routers for internetworking are available from Apple and Kinetics Inc. Gateways for using TCP/IP within AppleTalk protocols can be obtained from Kinetics and Cayman Systems Inc. In addition, other operating systems vendors support the Macintosh and AppleTalk protocols within their networks, including TOPS, 3Com, and Novell. Apple provides AppleTalk protocol stacks for MS-DOS and DEC VMS environments as well. In summary, AppleTalk is a well-respected architecture with more than 2 million nodes installed on more than 250,000 networks.

What’s more, Apple continues to enhance the AppleTalk architecture. AppleTalk Phase 1 (1985) can handle up to 254 node connections per network. Phase 2 (1989) adds extended addressing that can accommodate up to 16 million unique nodes. Support for token-ring networks (IEEE 802.5) also has been added with Phase 2. Phases 1 and 2 are also referred to as non-extended and extended networks, respectively. There are some differences between Phases 1 and 2 protocols, primarily at the Network Layer for routers. We’ll point out those differences as they are encountered throughout this chapter.

Several references are invaluable for a more detailed study of the AppleTalk protocols. The Macintosh series (reference [7-1]) has good information about Macintosh communication issues as well as AppleTalk. The AppleTalk System Overview (reference [7-2]) provides a high-level tutorial on the network from Apple’s perspective, while reference [7-3] discusses the TOPS network and other vendors’ products. Bit-level detail on all the AppleTalk protocols is given in references [7-4] and [7-5], which cover AppleTalk Phase 1 and Phase 2, respectively.

To begin, we’ll compare the AppleTalk architecture with the OSI Reference Model.

7.1 AppleTalk and the OSI Model

As in previous chapters, we’ll begin our tour through the OSI model at the Physical and Data Link Layers (see Figure 7-1). AppleTalk defines Ethernet (the DEC, Intel, and Xerox versions) and LocalTalk in Phase 1; and CSMA/CD bus networks (IEEE 802.3) and token ring (IEEE 802.5) in Phase 2. In addition, Phase 2 packets use the IEEE 802.2 and Subnetwork Access Protocol (SNAP) headers (review section 1.4.5) within 802.3 or 802.5 frames.

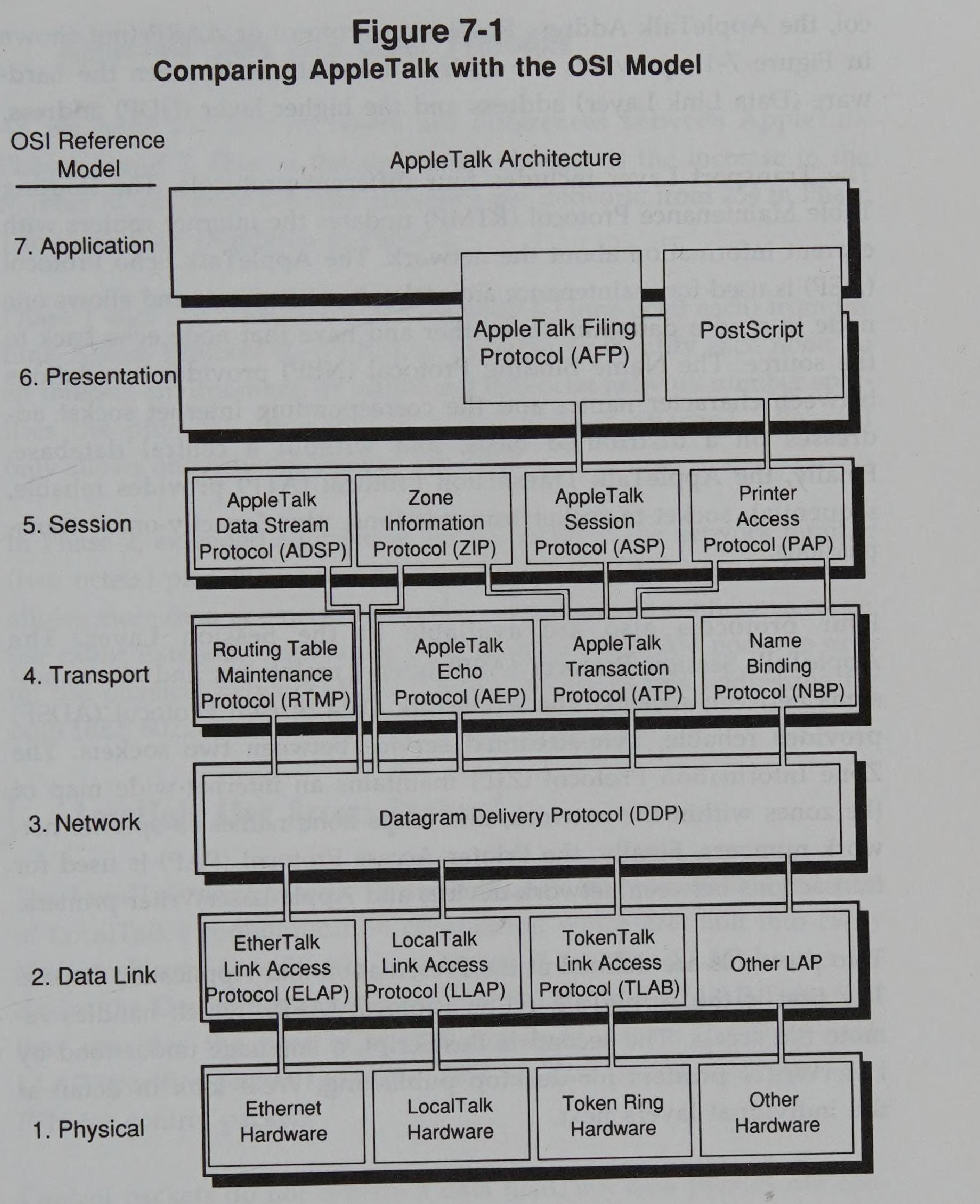

Figure 7-1 Comparing AppleTalk with the OSI Model

Diagram comparing the OSI Reference Model with the AppleTalk Architecture

OSI Reference Model	AppleTalk Architecture
7. Application
6. Presentation	AppleTalk Filing Protocol (AFP), PostScript
5. Session	AppleTalk Data Stream Protocol (ADSP), Zone Information Protocol (ZIP), AppleTalk Session Protocol (ASP), Printer Access Protocol (PAP)
4. Transport	Routing Table Maintenance Protocol (RTMP), AppleTalk Echo Protocol (AEP), AppleTalk Transaction Protocol (ATP), Name Binding Protocol (NBP)
3. Network	Datagram Delivery Protocol (DDP)
2. Data Link	EtherTalk Link Access Protocol (ELAP), LocalTalk Link Access Protocol (LLAP), TokenTalk Link Access Protocol (TLAB), Other LAP
1. Physical	Ethernet Hardware, LocalTalk Hardware, Token Ring Hardware, Other Hardware

The Network Layer is implemented using the Datagram Delivery Protocol (DDP) which provides for communication between two sockets, which are the addressable entities within a node. Another protocol, the AppleTalk Address Resolution Protocol or AARP (not shown in Figure 7-1), provides the address translations between the hardware (Data Link Layer) address and the higher layer (DDP) address.

The Transport Layer includes four different protocols. The Routing Table Maintenance Protocol (RTMP) updates the internet routers with current information about the network. The AppleTalk Echo Protocol (AEP) is used for maintenance and delay measurements and allows one node to send a datagram to another and have that node echo back to the source. The Name Binding Protocol (NBP) provides translations between character names and the corresponding internet socket addresses on a distributed basis, and without a central database. Finally, the AppleTalk Transaction Protocol (ATP) provides reliable, sequential, socket-to-socket transmissions, plus “exactly-once” transmissions.

Four protocols also are available at the Session Layer. The AppleTalk Session Protocol (ASP) opens, maintains, and closes sessions between sockets. The AppleTalk Data Stream Protocol (ADSP) provides reliable, byte-streamed service between two sockets. The Zone Information Protocol (ZIP) maintains an internet-wide map of the zones within the network, and maps zone names to specific network numbers. Finally, the Printer Access Protocol (PAP) is used for transactions between network devices and Apple LaserWriter printers.

Two protocols are defined at the Presentation and Application Layers. The first is the AppleTalk Filing Protocol (AFP), which handles remote file access. The second is PostScript, a language understood by LaserWriter printers for desktop publishing. We’ll look in detail at the individual layers next.

7.2 AppleTalk Data Link Layer Protocols

As we have touched on, there are differences between AppleTalk Phases 1 and 2. One of the significant changes is the increase in the number of addressable nodes allowable per network, from 254 in Phase 1 to more than 16 million in Phase 2.

Phase 1 uses the Destination/Source node ID (one octet each) from the Link Access Protocol (LAP) header to uniquely identify each node. In an internet environment, an additional two-octet network number specifies the physical cable to which that node is attached. Phase 1 only allows one network number per cable.

In Phase 2, extended addressing always includes the network number (two octets) plus the node ID (one octet) of the DDP header. Phase 2 allows more than one network number, specified as a contiguous range, per cable. Extended addressing permits up to 16,515,334 nodes to exist on the physical network. We’ll discuss the use of this addressing for both IEEE 802.3 and IEEE 802.5 networks.

7.2.1 LocalTalk Link Access Protocol

The LocalTalk Link Access Protocol (LLAP) frame is an integral part of LocalTalk’s communication capabilities, which are built into every Macintosh and LaserWriter (see Figure 7-2a). The LLAP header includes the Destination and Source Node IDs and the LLAP Type field that specifies the type of packet contained within the Data field. LLAP specifies packet types 01 - 7FH for data packets and types 80 - FFH for control packets.

Control packets do not contain a data field, but data packets can contain up to 600 octets of information. The low-order 10 bits of the first two octets within the data field contain the length (0 - 600) of the data field. Then comes the Frame Check Sequence (FCS), which is followed by a Flag (7EH), and an Abort Sequence (12 - 18 ONES) that indicates the end of the frame.

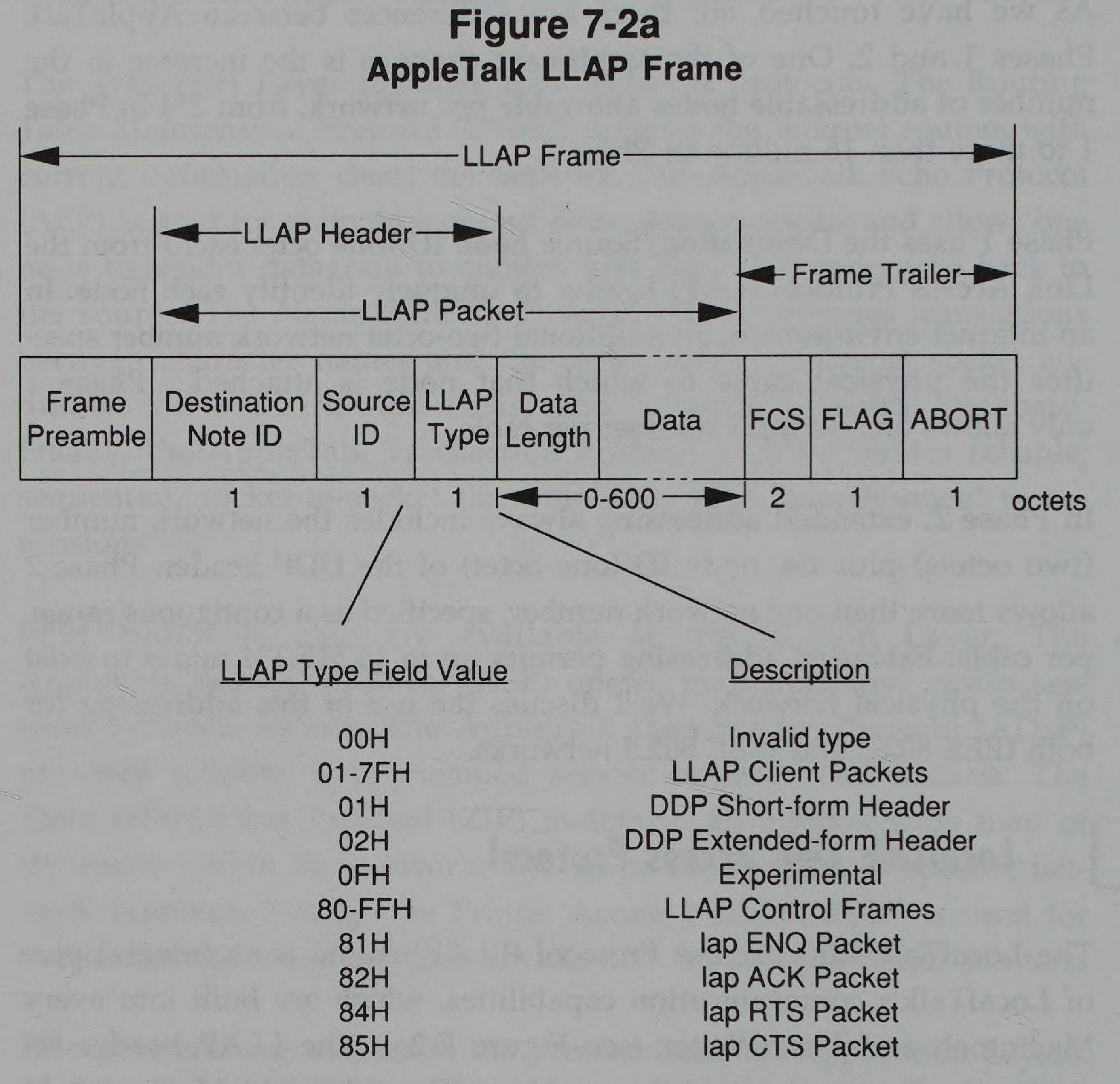

Figure 7-2a AppleTalk LLAP Frame

AppleTalk LLAP Frame structure and LLAP Type field values

packet-beta
0-7: "Destination Note ID"
8-15: "Source ID"
16-23: "LLAP Type"
24-39: "Data Length / Data"
40-55: "FCS"
56-63: "FLAG"
64-71: "ABORT"

Field	Bit offset	Width (bits)	Description
Destination Note ID	0	8	Destination node address (1 octet).
Source ID	8	8	Source node address (1 octet).
LLAP Type	16	8	LLAP packet type field (1 octet).
Data Length / Data	24	0-4800	Payload containing data length and the actual data (0-600 octets).
FCS	Variable	16	Frame Check Sequence (2 octets).
FLAG	Variable	8	End-of-frame flag (1 octet, 7EH).
ABORT	Variable	8	Abort sequence (1 octet, 12-18 ones).

LLAP Type Field Value	Description
00H	Invalid type
01-7FH	LLAP Client Packets
01H	DDP Short-form Header
02H	DDP Extended-form Header
0FH	Experimental
80-FFH	LLAP Control Frames
81H	lap ENQ Packet
82H	lap ACK Packet
84H	lap RTS Packet
85H	lap CTS Packet

7.2.2 EtherTalk 1.0 (Phase 1) Link Access Protocol

The EtherTalk Link Access Protocol (ELAP) encapsulates the LAP information within an Ethernet frame (see Figure 7-2b). The first 14 octets are the Ethernet header, including the Ethernet Destination and Source Addresses (six octets each) and the Ethernet Type (two octets), which is set to 809BH for AppleTalk. Next are the AppleTalk Address and Type fields, as with LLAP, and then the Data Length and Data fields. Note that a Pad may be required to satisfy the minimum length requirement for an Ethernet frame.

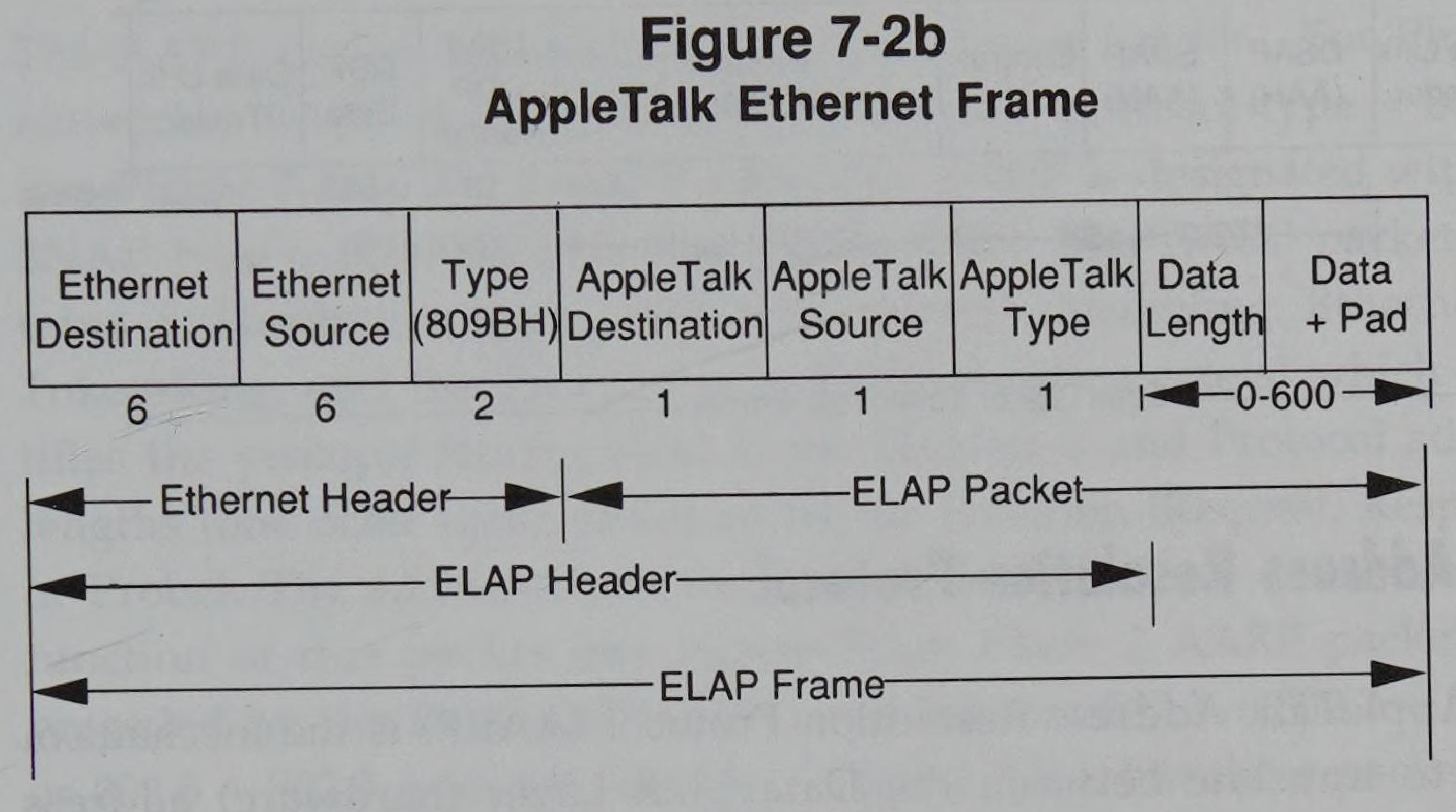

Figure 7-2b AppleTalk Ethernet Frame

AppleTalk Ethernet Frame diagram

packet-beta
0-47: "Ethernet Destination"
48-95: "Ethernet Source"
96-111: "Type (809BH)"
112-119: "AppleTalk Destination"
120-127: "AppleTalk Source"
128-135: "AppleTalk Type"
136-143: "Data Length"
144-175: "Data + Pad"

Field	Bit offset	Width (bits)	Description
Ethernet Destination	0	48	Destination MAC address (6 octets)
Ethernet Source	48	48	Source MAC address (6 octets)
Type (809BH)	96	16	Ethernet protocol type, set to 0x809B for AppleTalk (2 octets)
AppleTalk Destination	112	8	AppleTalk destination node ID (1 octet)
AppleTalk Source	120	8	AppleTalk source node ID (1 octet)
AppleTalk Type	128	8	AppleTalk protocol type (1 octet)
Data Length	136	8	Length of the data field (1 octet)
Data + Pad	144	Variable	Data field plus optional padding (0-600 octets)

7.2.3 EtherTalk 2.0 (Phase 2) and TokenTalk Link Access Protocols

Apple has revised the Data Link Layer frame formats in AppleTalk Phase 2 so they conform to IEEE 802.2, 802.3, and 802.5 standards (see Figure 7-2c). In Phase 2, the Data Link header for either 802.3 or 802.5 is followed by the 802.2 and SNAP headers. The LLC header contains the DSAP and SSAP addresses (both set to AAH) and a Control field (set to 03H for unnumbered information). The next five octets are the SNAP header containing the Organization Code (080007H for Apple) and EtherType (809BH for AppleTalk Phase 2). Following the SNAP header is the DDP header (note that there is no LAP header) and DDP data that will be discussed in detail in Section 7.3.

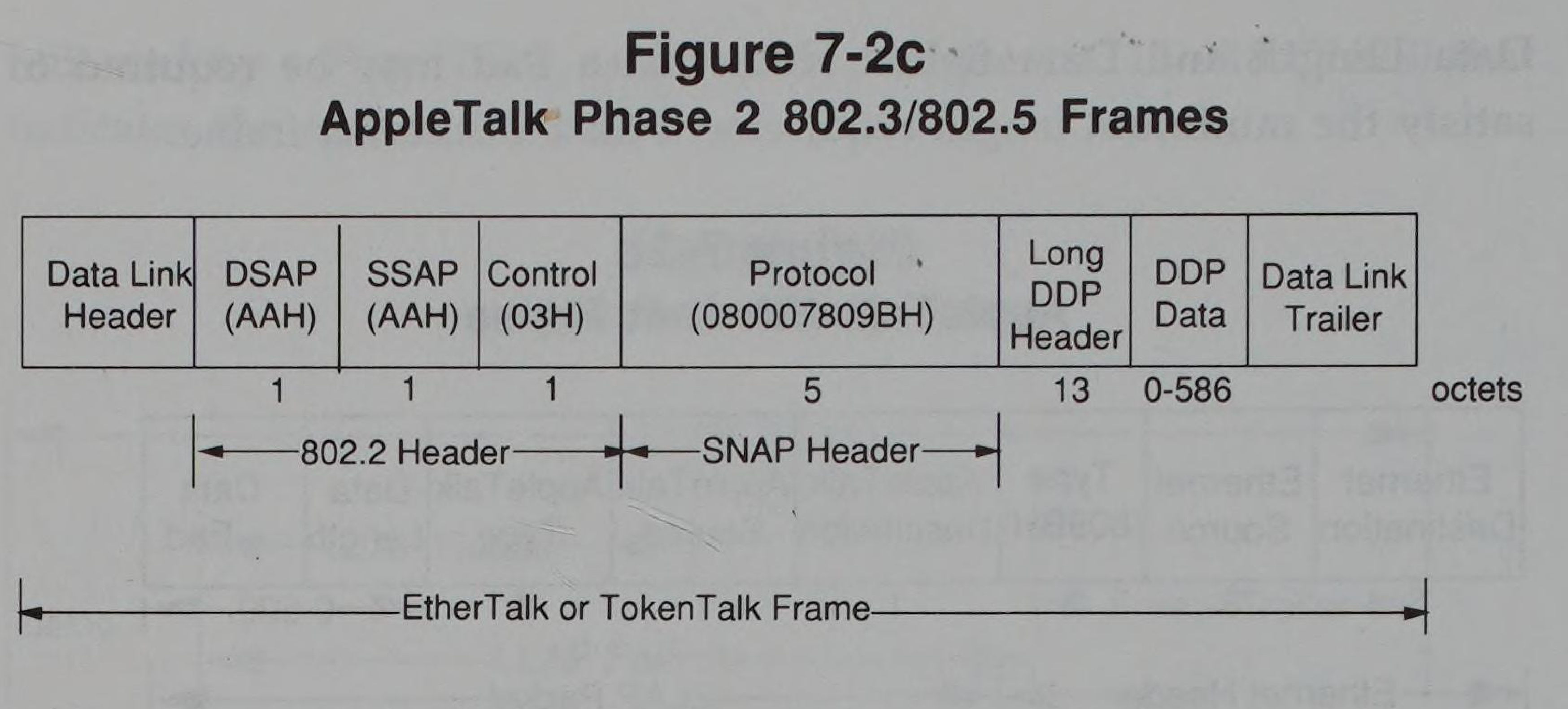

Figure 7-2c AppleTalk Phase 2 802.3/802.5 Frames

AppleTalk Phase 2 802.3/802.5 Frames

packet-beta
0-7: "DSAP (AAH)"
8-15: "SSAP (AAH)"
16-23: "Control (03H)"
24-63: "Protocol (080007809BH)"
64-167: "Long DDP Header"
168-231: "DDP Data"

Field	Bit offset	Width (bits)	Description
Data Link Header	-	-	Variable length data link layer header (e.g. IEEE 802.3 or 802.5)
DSAP (AAH)	0	8	Destination Service Access Point, set to 0xAA (part of 802.2 Header)
SSAP (AAH)	8	8	Source Service Access Point, set to 0xAA (part of 802.2 Header)
Control (03H)	16	8	Control field, set to 0x03 (Unnumbered Information, part of 802.2 Header)
Protocol (080007809BH)	24	40	SNAP Header Protocol ID (OUI 080007 + Protocol Type 809B)
Long DDP Header	64	104	AppleTalk Datagram Delivery Protocol (DDP) Header (13 octets)
DDP Data	168	0-4688	AppleTalk payload data (up to 586 octets)
Data Link Trailer	-	-	Variable length data link layer trailer

7.2.4 Address Resolution Protocol

The AppleTalk Address Resolution Protocol (AARP) is the mechanism used to translate between the Data Link Layer (hardware) address and the higher layer protocol address. Each node maintains an Address Mapping Table (AMT) for each higher layer protocol suite in use, and AARP maps between any two sets of the hardware and higher layer addresses.

If a node receives an AARP Request for a protocol address that matches its own, it sends an AARP Response containing its hardware address. In this instance the AMT is not involved. If a node wishes to transmit a packet, the AMT is checked by AARP. If a match for the desired higher layer protocol stack is not found, an AARP Request is initiated in order to find a match, as above. AARP dynamically performs this function using one of three different packet types: Request, Response, and Probe.

When a node is initialized, AARP assigns a tentative address for each protocol set on that node, which in most cases is just AppleTalk). AARP then broadcasts Probe packets to determine if any other node is using that address. A Response packet from another node would indicate that the address is already in use and the process must be repeated with a new tentative address. If the address is unique, the tentative address is considered permanent, and the node will now re-

ply to any AARP Request or Probe packets that contain its protocol address.

The AARP packet follows the Data Link Layer header. For Phase 1 networks, AARP is designated with Ethernet protocol type = 80F3H (see Figure 7-3a). For Phase 2 networks, AARP is designated with the SNAP type = 00000080F3H (see Figure 7-3b). The AARP packet contains a Hardware type field (two octets) specifying Ethernet or Token-Ring, and the Protocol type field (also two octets) which identifies the protocol family. Next is the Hardware and Protocol address lengths (one octet each), followed by the Function (Request, Response, or Probe). The addresses are then transmitted, and are defined by the function of that packet (see Figure 7-3a). Phase 2 AARP packets are preceded by the Phase 2 Data Link header, e.g. 802.3 + 802.2 + SNAP or 802.5 + 802.2 + SNAP (shown in Figure 7-3b), but these packets are otherwise identical. A value of 0 in the Destination Hardware Address field indicates that an unknown quantity is being requested in Request and Probe packets.

AARP packet format diagram

packet-beta
0-15: "Hardware type"
16-31: "Protocol type"
32-39: "Hardware address length"
40-47: "Protocol address length"
48-63: "Function"
64-111: "Source Hardware Address"
112-143: "Source Protocol Address"
144-191: "Destination Hardware Address"
192-223: "Destination Protocol Address"

Field	Bit offset	Width (bits)	Description
Hardware type	0	16	Specifies Ethernet or Token-Ring.
Protocol type	16	16	Identifies the protocol family (e.g., AppleTalk).
Hardware address length	32	8	Length of the hardware address in octets.
Protocol address length	40	8	Length of the protocol address in octets.
Function	48	16	Request (1), Response (2), or Probe (3).
Source Hardware Address	64	n*8	Hardware address of the sender (n octets).
Source Protocol Address	64 + n*8	m*8	Protocol address of the sender (m octets).
Destination Hardware Address	64 + n8 + m8	n*8	Hardware address of the target (n octets).
Destination Protocol Address	64 + 2n8 + m8	m*8	Protocol address of the target (m octets).

An example of the AppleTalk protocols at work is shown in Figure 7-4. Details of frame 105 (Figure 7-5) show that it is an AARP packet. Workstation 08000720b113 (in practice) is broadcasting a Probe to determine if anyone is using destination address 2000.7 (network number 2000, node number 7, given in decimal).

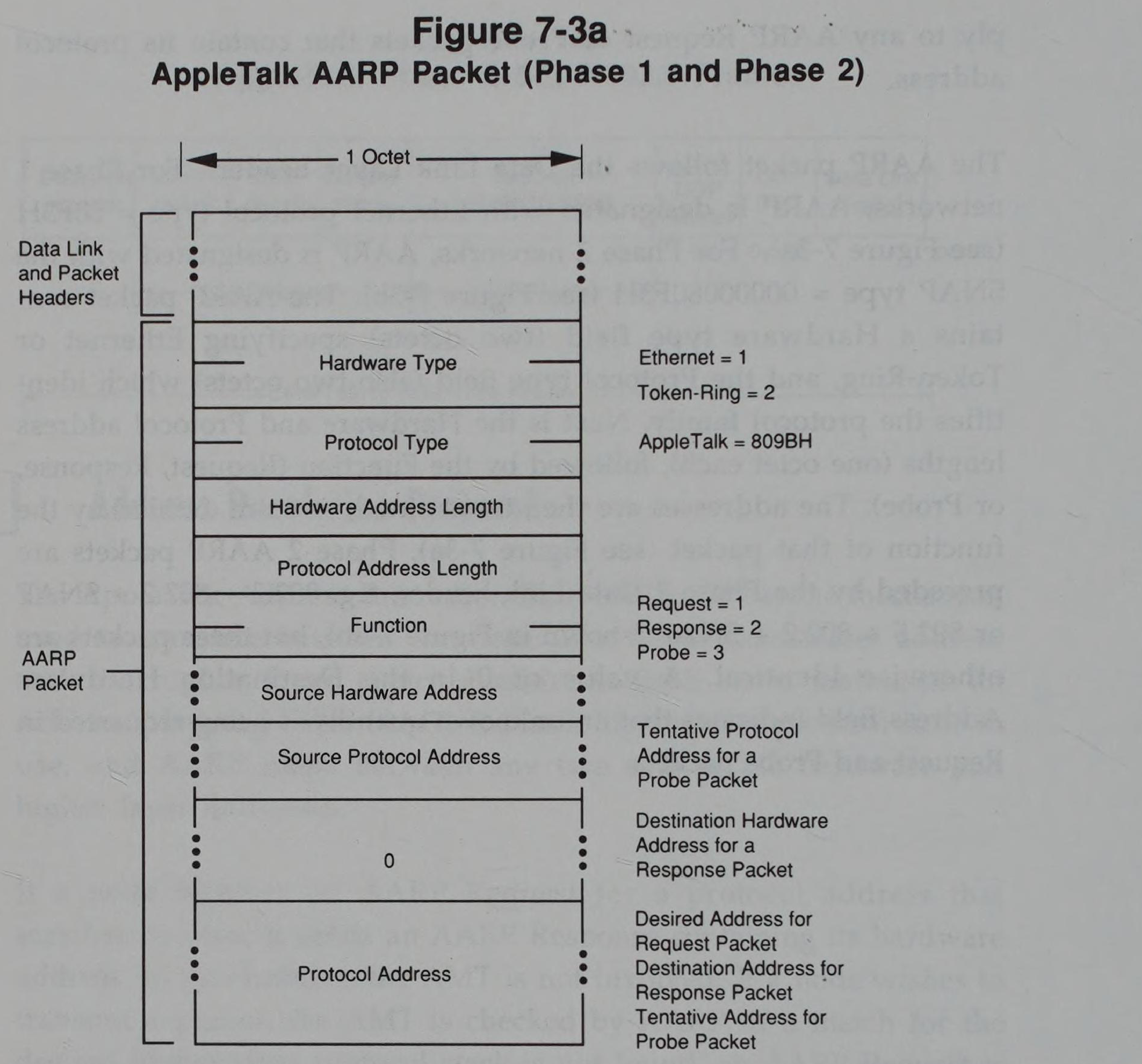

Figure 7-3a AppleTalk AARP Packet (Phase 1 and Phase 2)

Diagram of AppleTalk AARP Packet format showing fields and their values

packet-beta
0-15: "Hardware Type"
16-31: "Protocol Type"
32-39: "Hardware Address Length"
40-47: "Protocol Address Length"
48-63: "Function"
64-111: "Source Hardware Address"
112-143: "Source Protocol Address"
144-191: "Destination Hardware Address"
192-223: "Protocol Address"

Field	Bit offset	Width (bits)	Description
Hardware Type	0	16	Hardware type identifier (Ethernet = 1, Token-Ring = 2)
Protocol Type	16	16	Protocol type identifier (AppleTalk = 809BH)
Hardware Address Length	32	8	Length of hardware address in octets
Protocol Address Length	40	8	Length of protocol address in octets
Function	48	16	Packet function: Request = 1, Response = 2, Probe = 3
Source Hardware Address	64	Variable	Hardware address of the source node
Source Protocol Address	Variable	Variable	Protocol address of the source node. This is the tentative protocol address for a Probe Packet.
Destination Hardware Address	Variable	Variable	Set to 0 in Request and Probe packets. Contains the destination hardware address for a Response Packet.
Protocol Address	Variable	Variable	Desired address for Request Packet; Destination address for Response Packet; Tentative address for Probe Packet.

Field Values and Descriptions

Hardware Type
- Ethernet = 1
- Token-Ring = 2
Protocol Type
- AppleTalk = 809BH
Function
- Request = 1
- Response = 2
- Probe = 3
Source Protocol Address: Tentative Protocol Address for a Probe Packet
Destination Hardware Address (0): Destination Hardware Address for a Response Packet
Protocol Address:
- Desired Address for Request Packet
- Destination Address for Response Packet
- Tentative Address for Probe Packet

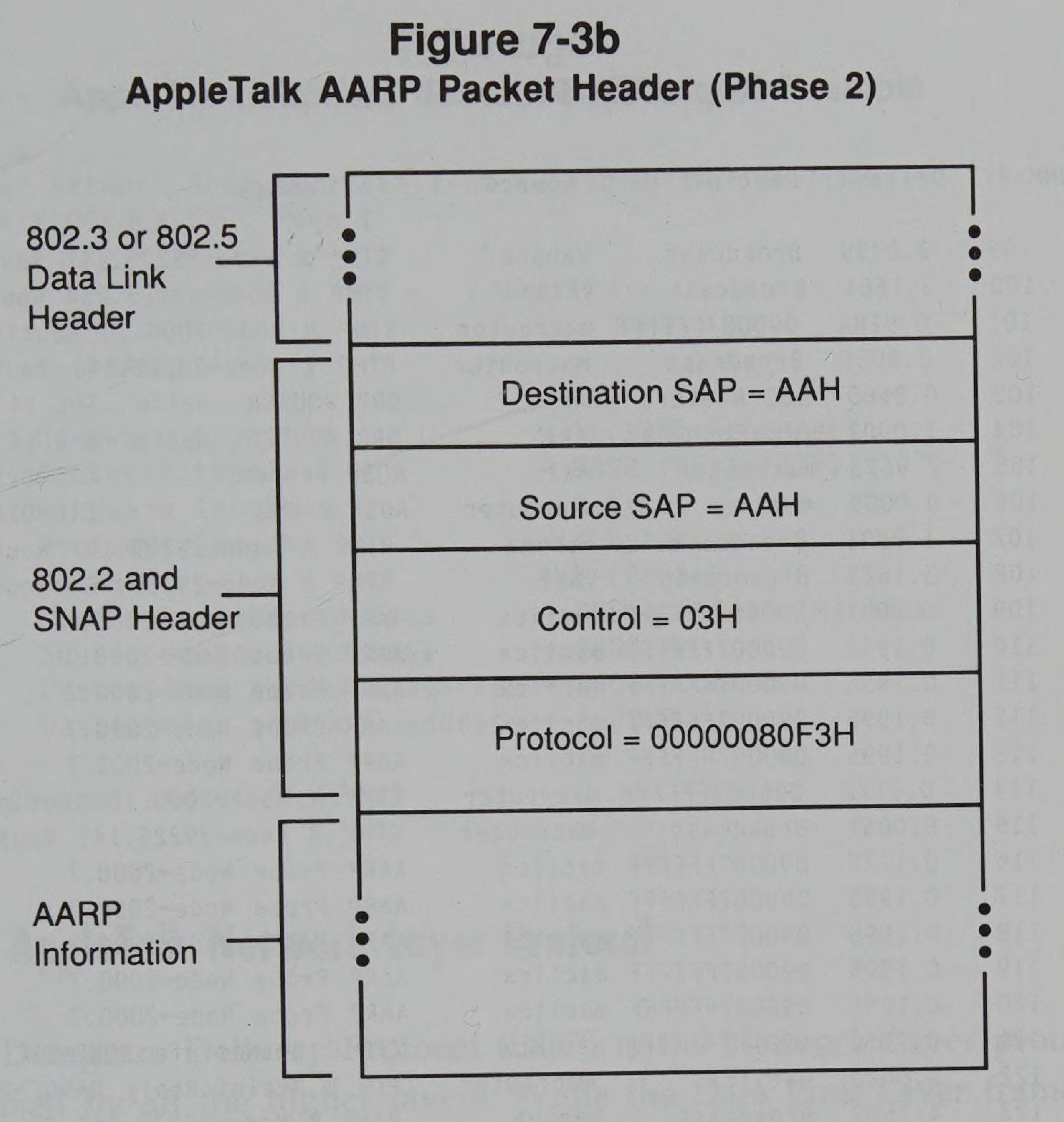

Figure 7-3b AppleTalk AARP Packet Header (Phase 2)

AppleTalk AARP Packet Header (Phase 2) diagram

packet-beta
0-31: "802.3 or 802.5 Data Link Header"
32-39: "Destination SAP = AAH"
40-47: "Source SAP = AAH"
48-55: "Control = 03H"
56-95: "Protocol = 00000080F3H"
96-127: "AARP Information"

Field	Bit offset	Width (bits)	Description
802.3 or 802.5 Data Link Header	0	Variable	Standard MAC layer header for Ethernet or Token Ring networks.
Destination SAP	Variable	8	Destination Service Access Point, set to AAH (SNAP).
Source SAP	Variable + 8	8	Source Service Access Point, set to AAH (SNAP).
Control	Variable + 16	8	LLC Control field, set to 03H (Unnumbered Information).
Protocol	Variable + 24	40	SNAP Protocol Identifier (OUI 000000 + Type 80F3H for AARP).
AARP Information	Variable + 64	Variable	Contains the AARP protocol-specific information.

An example of several of the AppleTalk protocols at work is shown in Figure 7-4. Details of frame 109 (Figure 7-5) show that it is an AARP packet. Workstation DECnet006418 (maciicx) is broadcasting a Probe to determine if anyone is using destination address 2000.7 (network number 2000, node number 7, given in decimal).

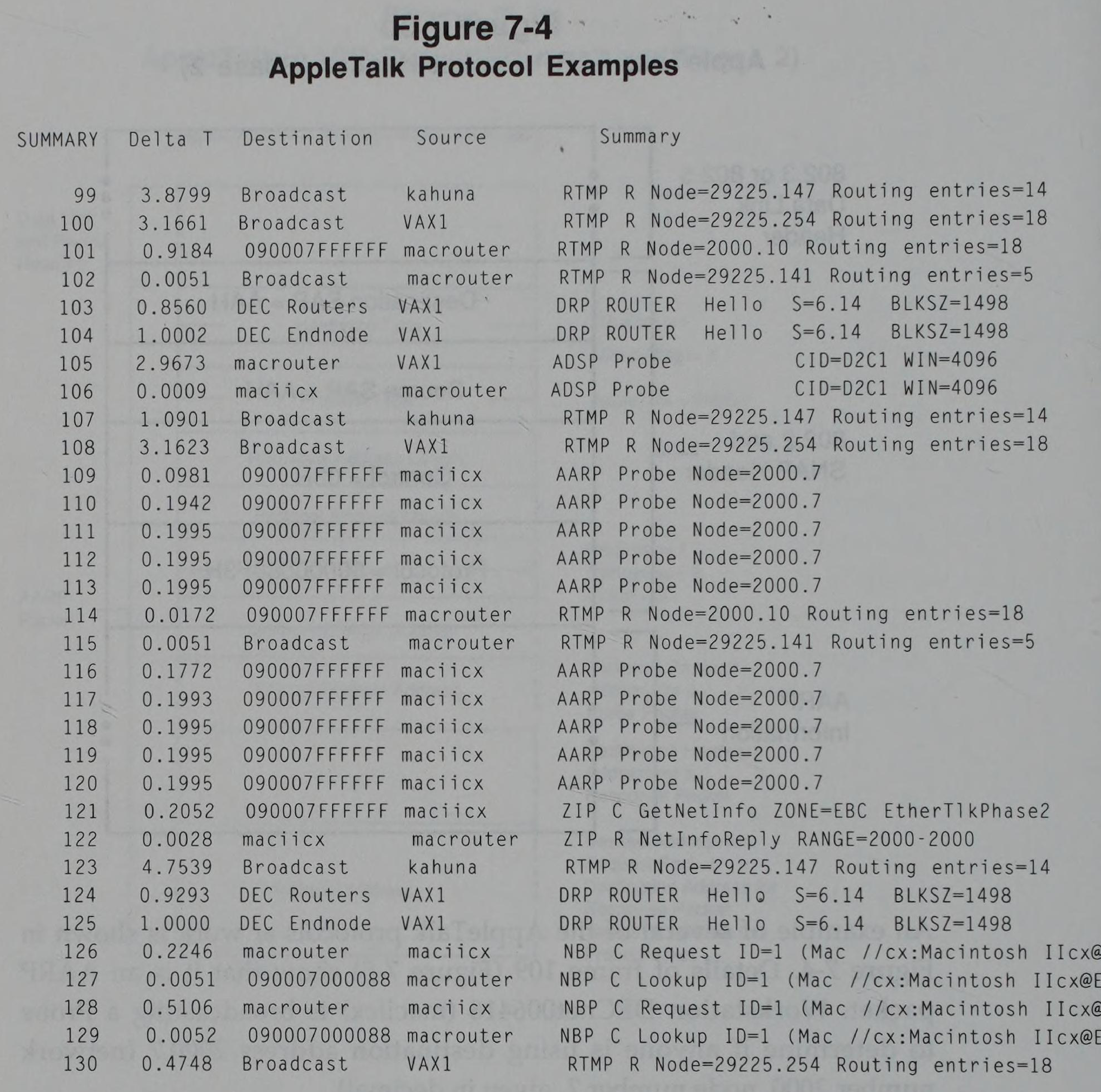

Figure 7-4 AppleTalk Protocol Examples

AppleTalk protocol analyzer trace examples

SUMMARY	Delta T	Destination	Source	Summary
99	3.8799	Broadcast	kahuna	RTMP R Node=29225.147 Routing entries=14
100	3.1661	Broadcast	VAX1	RTMP R Node=29225.254 Routing entries=18
101	0.9184	090007FFFFFF	macrouter	RTMP R Node=2000.10 Routing entries=18
102	0.0051	Broadcast	macrouter	RTMP R Node=29225.141 Routing entries=5
103	0.8560	DEC Routers	VAX1	DRP ROUTER Hello S=6.14 BLKSZ=1498
104	1.0002	DEC Endnode	VAX1	DRP ROUTER Hello S=6.14 BLKSZ=1498
105	2.9673	macrouter	VAX1	ADSP Probe CID=D2C1 WIN=4096
106	0.0009	maciicx	macrouter	ADSP Probe CID=D2C1 WIN=4096
107	1.0901	Broadcast	kahuna	RTMP R Node=29225.147 Routing entries=14
108	3.1623	Broadcast	VAX1	RTMP R Node=29225.254 Routing entries=18
109	0.0981	090007FFFFFF	maciicx	AARP Probe Node=2000.7
110	0.1942	090007FFFFFF	maciicx	AARP Probe Node=2000.7
111	0.1995	090007FFFFFF	maciicx	AARP Probe Node=2000.7
112	0.1995	090007FFFFFF	maciicx	AARP Probe Node=2000.7
113	0.1995	090007FFFFFF	maciicx	AARP Probe Node=2000.7
114	0.0172	090007FFFFFF	macrouter	RTMP R Node=2000.10 Routing entries=18
115	0.0051	Broadcast	macrouter	RTMP R Node=29225.141 Routing entries=5
116	0.1772	090007FFFFFF	maciicx	AARP Probe Node=2000.7
117	0.1993	090007FFFFFF	maciicx	AARP Probe Node=2000.7
118	0.1995	090007FFFFFF	maciicx	AARP Probe Node=2000.7
119	0.1995	090007FFFFFF	maciicx	AARP Probe Node=2000.7
120	0.1995	090007FFFFFF	maciicx	AARP Probe Node=2000.7
121	0.2052	090007FFFFFF	maciicx	ZIP C GetNetInfo ZONE=EBC EtherTlkPhase2
122	0.0028	maciicx	macrouter	ZIP R NetInfoReply RANGE=2000-2000
123	4.7539	Broadcast	kahuna	RTMP R Node=29225.147 Routing entries=14
124	0.9293	DEC Routers	VAX1	DRP ROUTER Hello S=6.14 BLKSZ=1498
125	1.0000	DEC Endnode	VAX1	DRP ROUTER Hello S=6.14 BLKSZ=1498
126	0.2246	macrouter	maciicx	NBP C Request ID=1 (Mac //cx:Macintosh IIcx@EBC)
127	0.0051	090007000088	macrouter	NBP C Lookup ID=1 (Mac //cx:Macintosh IIcx@EBC)
128	0.5106	macrouter	maciicx	NBP C Request ID=1 (Mac //cx:Macintosh IIcx@EBC)
129	0.0052	090007000088	macrouter	NBP C Lookup ID=1 (Mac //cx:Macintosh IIcx@EBC)
130	0.4748	Broadcast	VAX1	RTMP R Node=29225.254 Routing entries=18

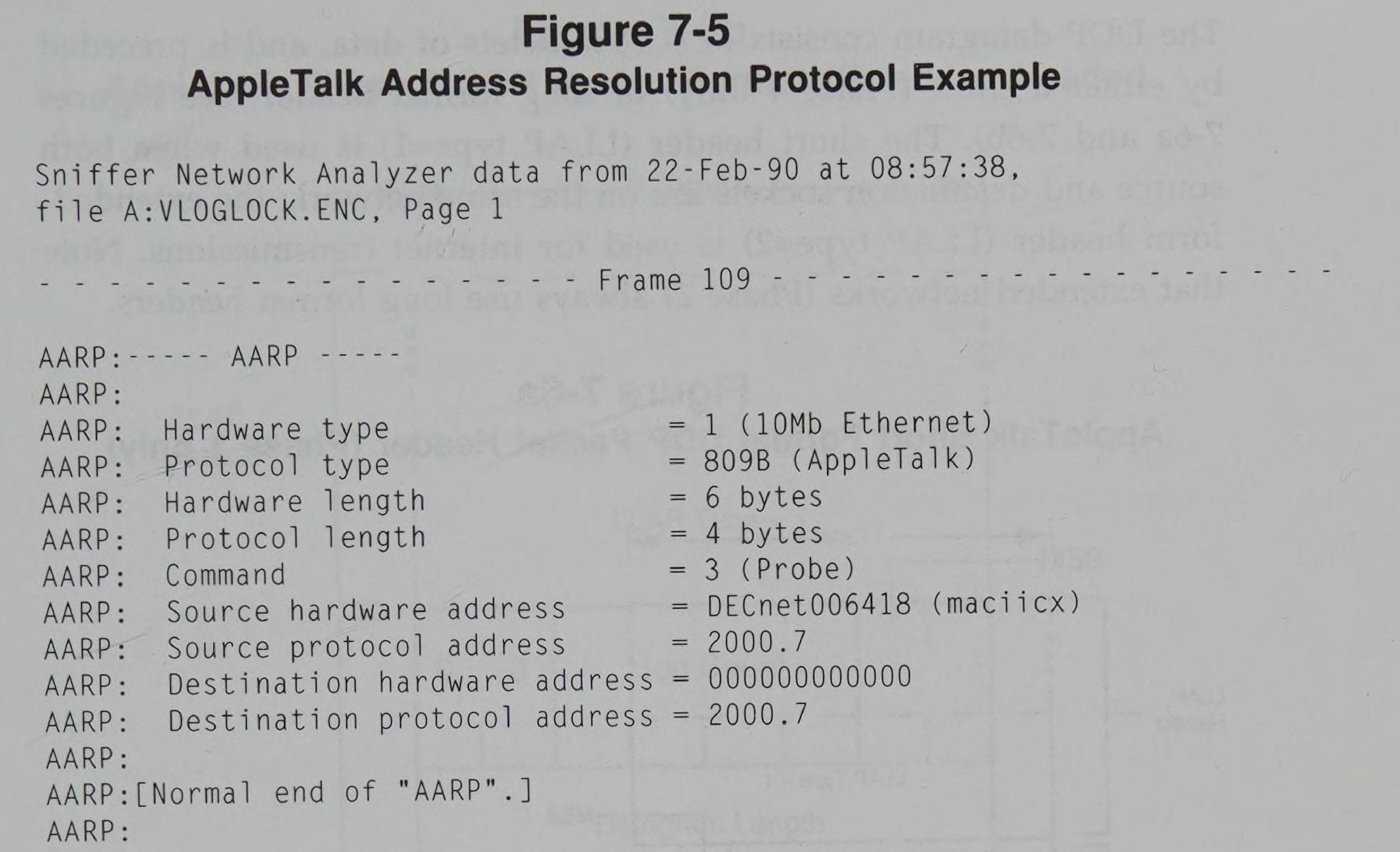

Figure 7-5 AppleTalk Address Resolution Protocol Example

AppleTalk Address Resolution Protocol Example Sniffer Trace

Sniffer Network Analyzer data from 22-Feb-90 at 08:57:38,
file A:VLOGLOCK.ENC, Page 1

- - - - - - - - - - - - - - - Frame 109 - - - - - - - - - - - - - - -

AARP:----- AARP -----
AARP:
AARP: Hardware type                = 1 (10Mb Ethernet)
AARP: Protocol type                = 809B (AppleTalk)
AARP: Hardware length              = 6 bytes
AARP: Protocol length              = 4 bytes
AARP: Command                      = 3 (Probe)
AARP: Source hardware address      = DECnet006418 (maciicx)
AARP: Source protocol address      = 2000.7
AARP: Destination hardware address = 000000000000
AARP: Destination protocol address = 2000.7
AARP:
AARP:[Normal end of "AARP".]
AARP:

7.3 AppleTalk Network Layer Protocol

The Datagram Delivery Protocol (DDP) is the Network Layer protocol used by all the higher layers. While the Data Link Layer frames deliver information between nodes on a single network, DDP is responsible for delivering datagrams between sockets (higher layer process addresses) on the internet. The internet consists of individual AppleTalk networks connected by routers, and these routers, in turn, could be connected via telephone circuits, a public data network, or higher speed LAN backbones such as IEEE 802.3 or 802.5.

Node addresses within the internet consist of a network number (two octets) followed by a node ID (one octet). Sockets are addressed with a network number (two octets), node ID (one octet), and a socket number (one octet). Network number 0 is reserved for unknown networks. On AppleTalk Phase 2, however, only broadcast to net zero is supported, i.e. Net=0, Node=FFH means “all nodes on my network (cable)”.

The DDP datagram consists of 0 - 586 octets of data, and is preceded by either a short (Phase 1 only) or long format header (see Figures 7-6a and 7-6b). The short header (LLAP type=1) is used when both source and destination sockets are on the same network; the extended-form header (LLAP type=2) is used for internet transmissions. Note that extended networks (Phase 2) always use long format headers.

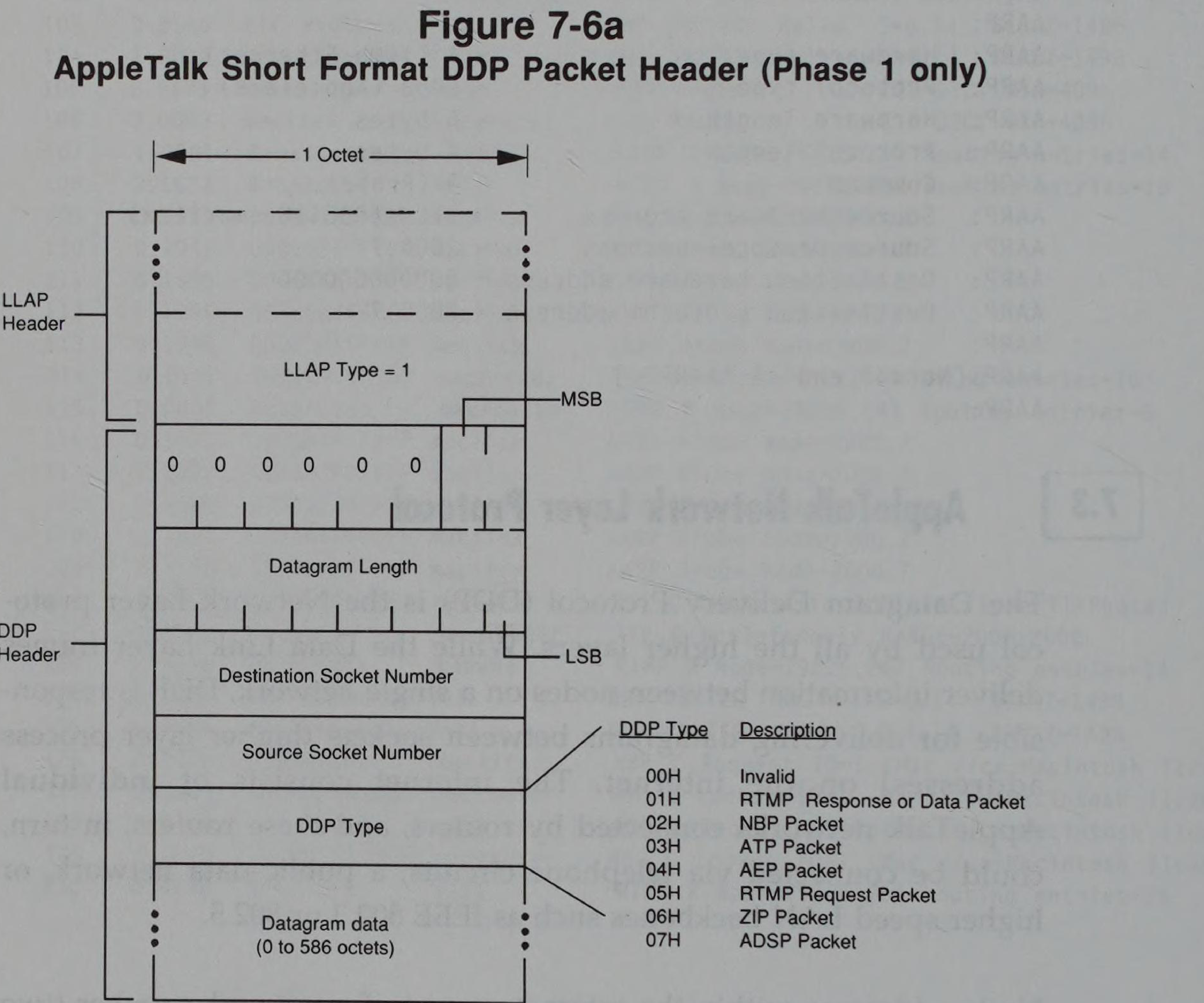

Figure 7-6a AppleTalk Short Format DDP Packet Header (Phase 1 only)

AppleTalk Short Format DDP Packet Header diagram showing LLAP and DDP header fields.

packet-beta
0-5: "Reserved (0)"
6-15: "Datagram Length"
16-23: "Destination Socket Number"
24-31: "Source Socket Number"
32-39: "DDP Type"
40-71: "Datagram data (0 to 586 octets)"

Field	Bit offset	Width (bits)	Description
Reserved	0	6	Must be zero.
Datagram Length	6	10	Length of the DDP datagram including the header.
Destination Socket Number	16	8	Socket number on the destination node.
Source Socket Number	24	8	Socket number on the source node.
DDP Type	32	8	Protocol type of the data field.
Datagram data	40	0-4688	0 to 586 octets of data.

DDP Type	Description
00H	Invalid
01H	RTMP Response or Data Packet
02H	NBP Packet
03H	ATP Packet
04H	AEP Packet
05H	RTMP Request Packet
06H	ZIP Packet
07H	ADSP Packet

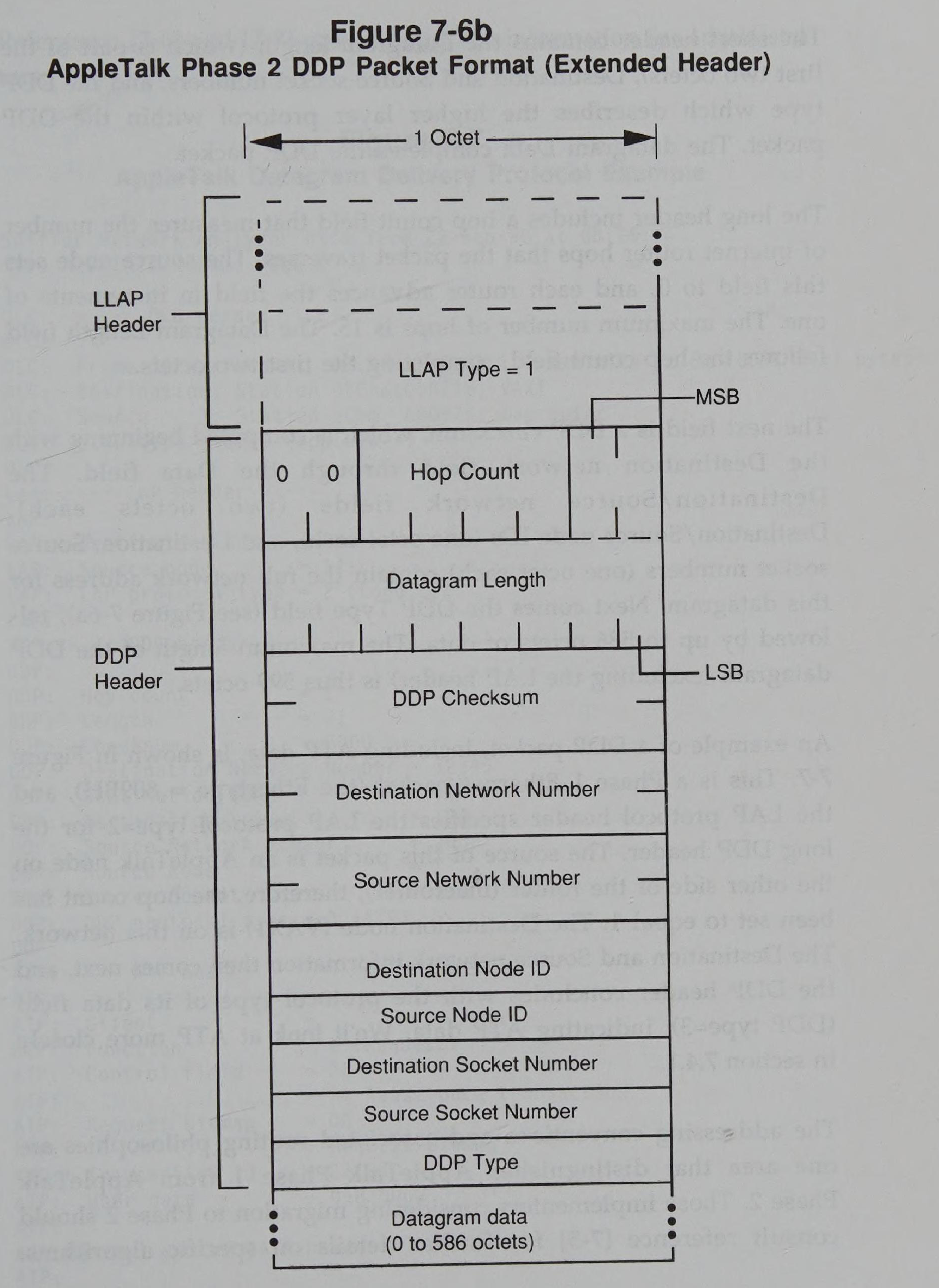

Figure 7-6b AppleTalk Phase 2 DDP Packet Format (Extended Header)

AppleTalk Phase 2 DDP Packet Format (Extended Header)

packet-beta
0-1: "0 0"
2-5: "Hop Count"
6-15: "Datagram Length"
16-31: "DDP Checksum"
32-47: "Destination Network Number"
48-63: "Source Network Number"
64-71: "Destination Node ID"
72-79: "Source Node ID"
80-87: "Destination Socket Number"
88-95: "Source Socket Number"
96-103: "DDP Type"
104-127: "Datagram data (0 to 586 octets)"

Field	Bit offset	Width (bits)	Description
Reserved	0	2	Must be set to zero.
Hop Count	2	4	Number of routers the packet has passed through.
Datagram Length	6	10	The total length of the DDP datagram including the header, in octets.
DDP Checksum	16	16	A 16-bit checksum used for error detection in the DDP datagram.
Destination Network Number	32	16	The 16-bit network number of the destination node.
Source Network Number	48	16	The 16-bit network number of the source node.
Destination Node ID	64	8	The 8-bit identifier of the destination node.
Source Node ID	72	8	The 8-bit identifier of the source node.
Destination Socket Number	80	8	The 8-bit socket number of the process on the destination node.
Source Socket Number	88	8	The 8-bit socket number of the process on the source node.
DDP Type	96	8	Specifies the protocol type of the data payload.
Datagram data	104	0-4688	The data payload from a higher-layer protocol, up to 586 octets.

The short header contains the Datagram length (which is part of the first two octets), Destination and Source socket numbers, and the DDP type which describes the higher layer protocol within the DDP packet. The datagram Data completes the DDP packet.

The long header includes a hop count field that measures the number of internet router hops that the packet traverses. The source node sets this field to 0, and each router advances the field in increments of one. The maximum number of hops is 15. The Datagram Length field follows the hop count field, completing the first two octets.

The next field is a DDP checksum, which is computed beginning with the Destination network field through the Data field. The Destination/Source network fields (two octets each), Destination/Source node IDs (one octet each), and Destination/Source socket numbers (one octet each) contain the full network address for this datagram. Next comes the DDP Type field (see Figure 7-6a), followed by up to 586 octets of data. The maximum length of the DDP datagram (excluding the LAP header) is thus 599 octets.

An example of a DDP packet, including ATP data, is shown in Figure 7-7. This is a Phase 1 Ethernet packet (the Ethertype = 809BH), and the LAP protocol header specifies the LAP protocol type=2 for the long DDP header. The source of this packet is an AppleTalk node on the other side of the router (macrouter), therefore, the hop count has been set to equal 1. The Destination node (VAX1) is on this network. The Destination and Source network information then comes next, and the DDP header concludes with the protocol type of its data field (DDP type=3), indicating ATP data. We’ll look at ATP more closely in section 7.4.1.

The addressing conventions and associated routing philosophies are one area that distinguishes AppleTalk Phase 1 from AppleTalk Phase 2. Those implementers considering migration to Phase 2 should consult reference [7-5] for further details on specific algorithms.

References [7-6] and [7-7] provide upgrade information for administrators.

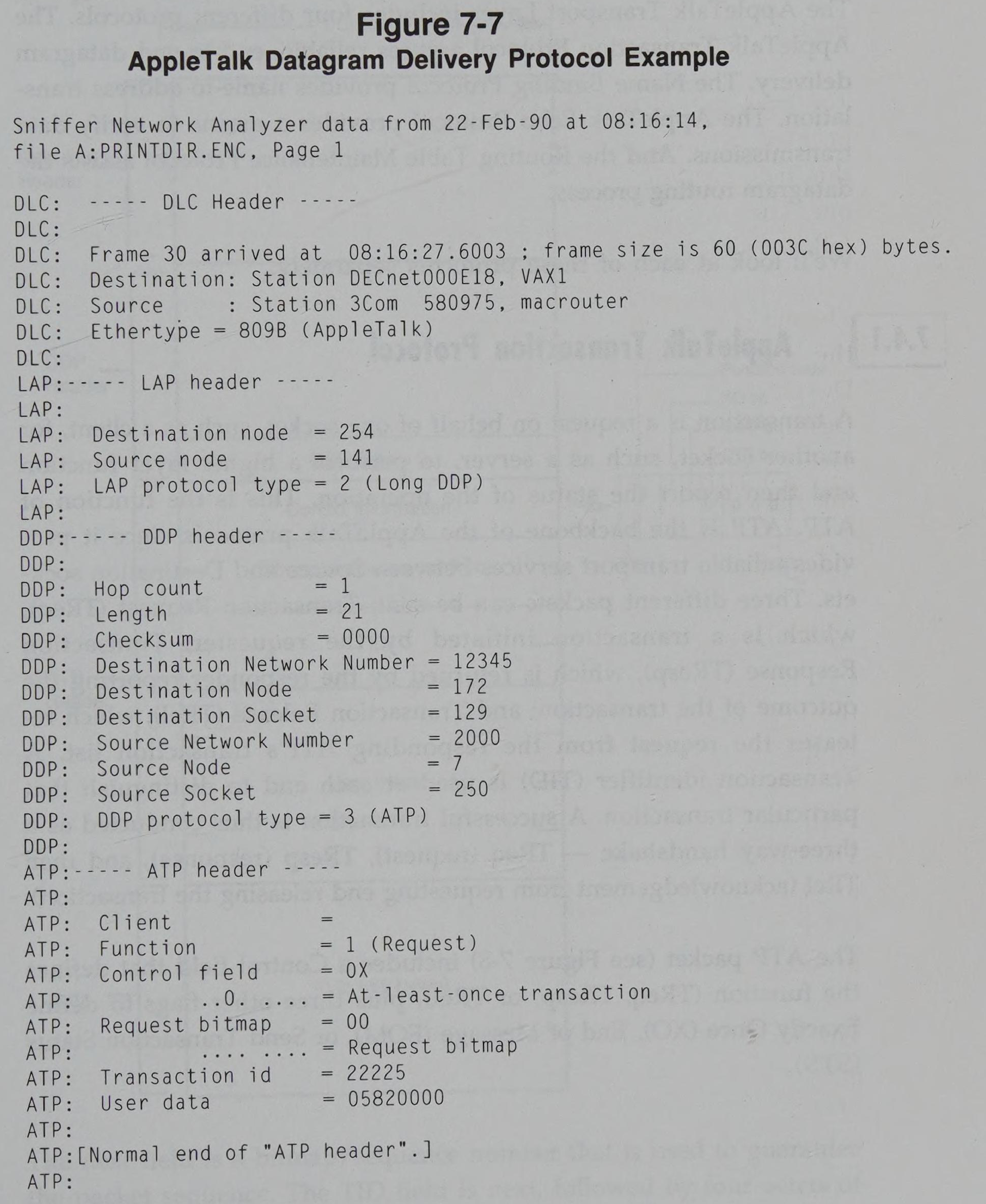

Figure 7-7 AppleTalk Datagram Delivery Protocol Example

Sniffer Network Analyzer trace showing an AppleTalk DDP example

Sniffer Network Analyzer data from 22-Feb-90 at 08:16:14,
file A:PRINTDIR.ENC, Page 1

DLC:  ----- DLC Header -----
DLC:
DLC:  Frame 30 arrived at  08:16:27.6003 ; frame size is 60 (003C hex) bytes.
DLC:  Destination: Station DECnet000E18, VAX1
DLC:  Source      : Station 3Com 580975, macrouter
DLC:  Ethertype = 809B (AppleTalk)
DLC:
LAP:----- LAP header -----
LAP:
LAP:  Destination node = 254
LAP:  Source node      = 141
LAP:  LAP protocol type = 2 (Long DDP)
LAP:
DDP:----- DDP header -----
DDP:
DDP:  Hop count            = 1
DDP:  Length               = 21
DDP:  Checksum             = 0000
DDP:  Destination Network Number = 12345
DDP:  Destination Node           = 172
DDP:  Destination Socket         = 129
DDP:  Source Network Number      = 2000
DDP:  Source Node                = 7
DDP:  Source Socket              = 250
DDP:  DDP protocol type = 3 (ATP)
DDP:
ATP:----- ATP header -----
ATP:
ATP:  Client            =
ATP:  Function          = 1 (Request)
ATP:  Control field     = 0X
ATP:       ..0. ....    = At-least-once transaction
ATP:  Request bitmap    = 00
ATP:       .... ....    = Request bitmap
ATP:  Transaction id    = 22225
ATP:  User data         = 05820000
ATP:
ATP:[Normal end of "ATP header".]
ATP:

7.4 AppleTalk Transport Layer Protocols

The AppleTalk Transport Layer includes four different protocols. The AppleTalk Transaction Protocol assures reliable, end-to-end datagram delivery. The Name Binding Protocol provides name-to-address translation. The AppleTalk Echo Protocol provides a means to verify data transmissions. And the Routing Table Maintenance Protocol assists the datagram routing process.

We’ll look at each of these protocols separately.

7.4.1 AppleTalk Transaction Protocol

A transaction is a request on behalf of one socket, such as a client, for another socket, such as a server, to perform a higher layer function and then report the status of the operation. This is the function of ATP. ATP is the backbone of the AppleTalk protocols since it provides reliable transport services between Source and Destination sockets. Three different packets can be sent: Transaction Request (TReq), which is a transaction initiated by the requester; Transaction Response (TResp), which is returned by the responder reporting the outcome of the transaction; and Transaction Release (TRel), which releases the request from the responding ATP’s transaction list. A Transaction identifier (TID) is used at each end to distinguish that particular transaction. A successful transaction is thus conducted as a three-way handshake — TReq (request), TResp (response), and then TRel (acknowledgement from requesting end releasing the transaction).

The ATP packet (see Figure 7-8) includes a Control field that defines the function (TReq, TResp, or TRel), plus three other flags to define Exactly Once (XO), End of Message (EOM), or Send Transaction Status (STS).

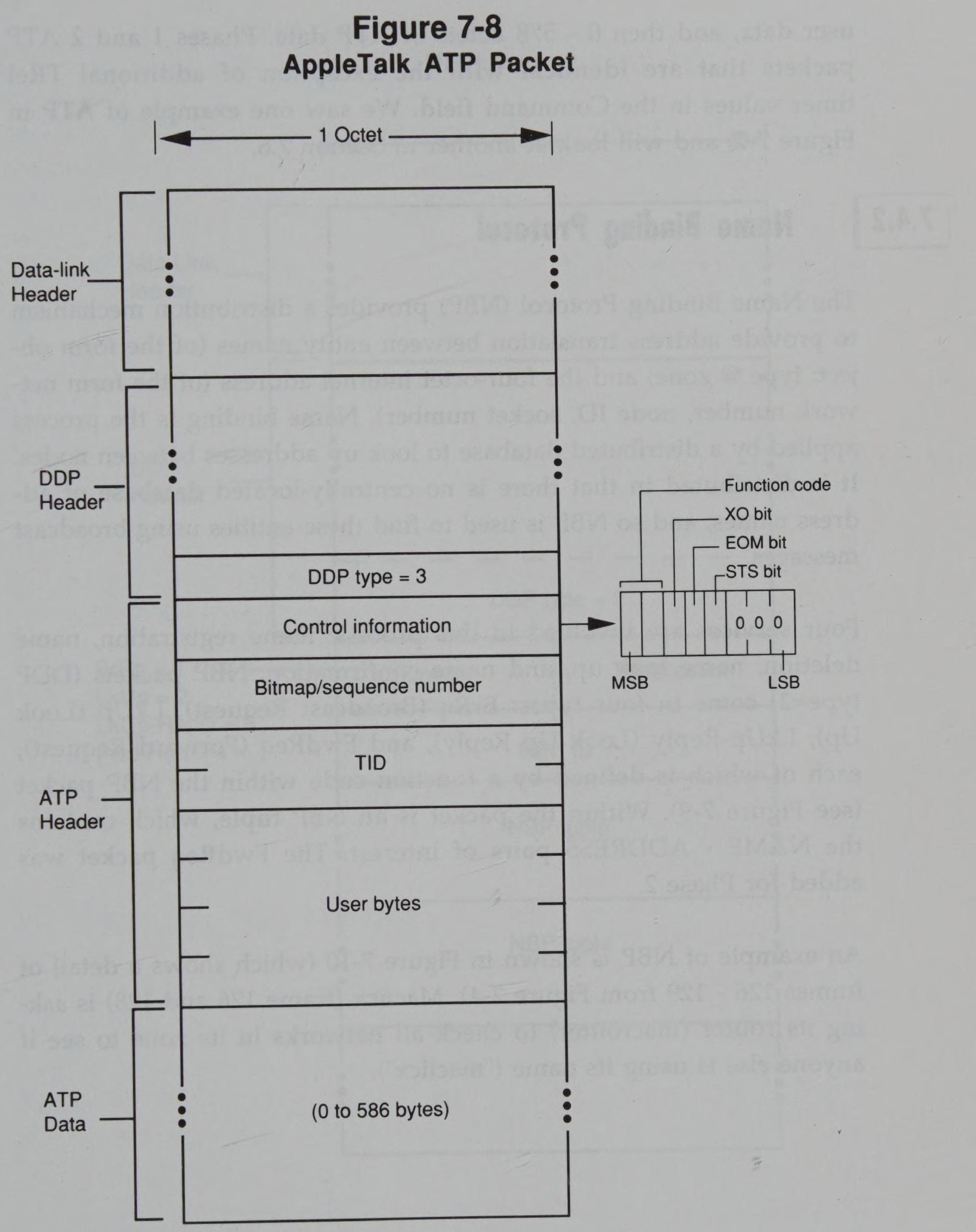

Figure 7-8 AppleTalk ATP Packet

Diagram showing the structure of an AppleTalk ATP Packet, detailing the headers and the control information bits.

packet-beta
0-1: "Function code"
2: "XO bit"
3: "EOM bit"
4: "STS bit"
5-7: "000"
8-15: "Bitmap/sequence number"
16-31: "TID"
32-47: "User bytes"
48-63: "ATP Data..."

Field	Bit offset	Width (bits)	Description
Function code	0	2	Identifies the ATP function code.
XO bit	2	1	Exactly-once bit.
EOM bit	3	1	End-of-message bit.
STS bit	4	1	Send-transmission-status bit.
Reserved	5	3	Constant bits set to 000.
Bitmap/sequence number	8	8	Used for transaction bitmap or packet sequencing.
TID	16	16	Transaction ID.
User bytes	32	16	Transaction-specific user bytes.
ATP Data	48	0-4688	Data field (0 to 586 bytes).

The next field is a bitmap/sequence number that is used to guarantee the packet sequence. The TID field is next, followed by four octets of user data, and then 0 - 578 octets of ATP data. Phases 1 and 2 ATP packets that are identical with the exception of additional TRel timer values in the Command field. We saw one example of ATP in Figure 7-7, and will look at another in Section 7.6.

7.4.2 Name Binding Protocol

The Name Binding Protocol (NBP) provides a distribution mechanism to provide address translation between entity names (of the form object: type @ zone) and the four-octet internet address (of the form network number, node ID, socket number). Name binding is the process applied by a distributed database to look up addresses between nodes. It is distributed in that there is no centrally-located database of address names, and so NBP is used to find these entities using broadcast messages.

Four services are involved in this process: name registration, name deletion, name look up, and name confirmation. NBP packets (DDP type=2) come in four types: BrRq (Broadcast Request), LkUp (Look Up), LkUp-Reply (Look Up Reply), and FwdReq (Forward Request), each of which is defined by a function code within the NBP packet (see Figure 7-9). Within the packet is an NBP tuple, which contains the NAME - ADDRESS pairs of interest. The FwdReq packet was added for Phase 2.

An example of NBP is shown in Figure 7-10 (which shows a detail of frames 126 - 129 from Figure 7-4). Maciicx (frame 126 and 128) is asking its router (macrouter) to check all networks in its zone to see if anyone else is using its name (“maciicx”).

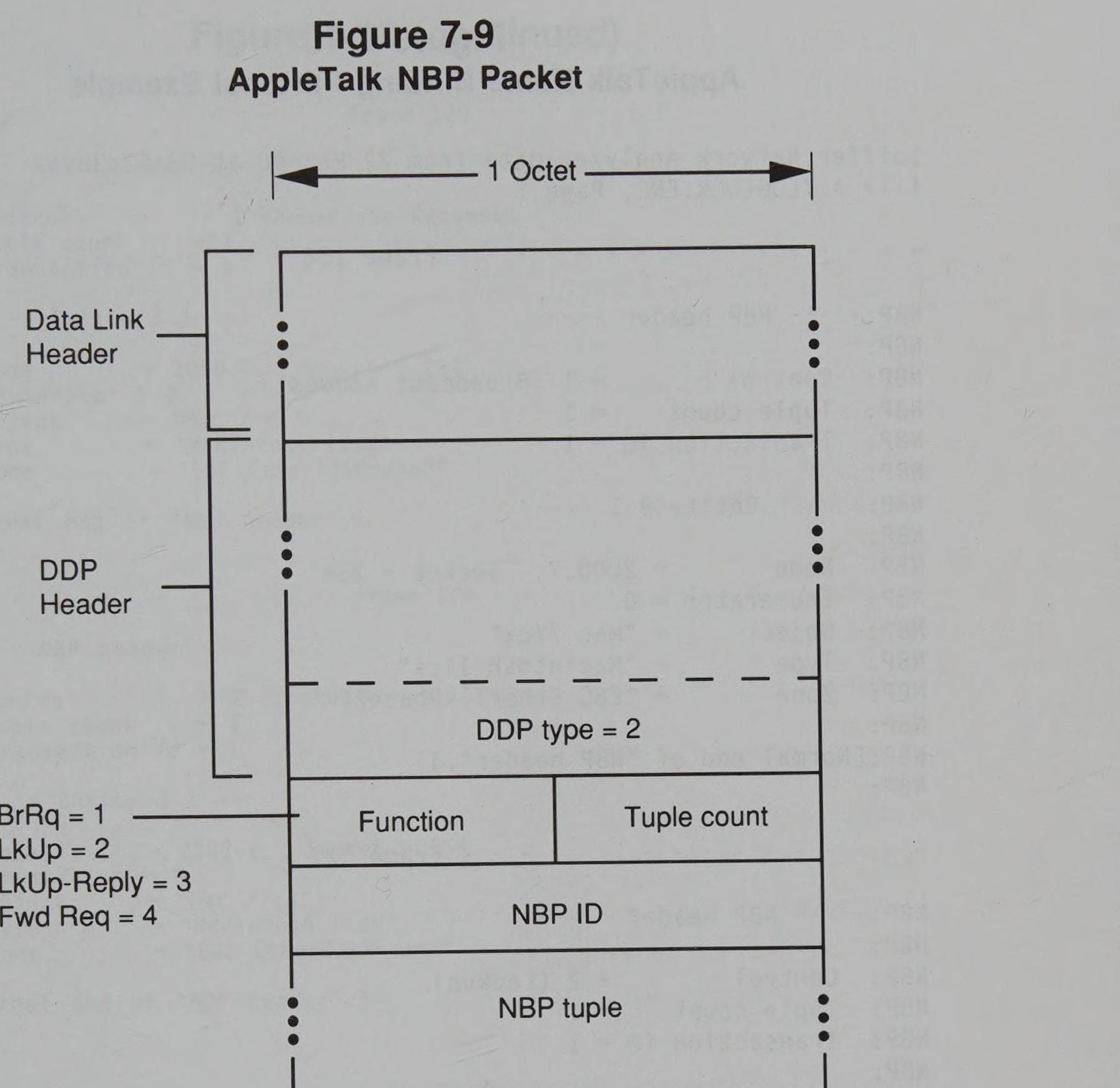

Figure 7-9 AppleTalk NBP Packet

Diagram showing the layout of an AppleTalk NBP Packet, including its encapsulation within Data Link and DDP headers.

packet-beta
0-3: "Function"
4-7: "Tuple count"
8-15: "NBP ID"
16-31: "NBP tuple"
32-47: "NBP tuple"

Field	Bit offset	Width (bits)	Description
Function	0	4	NBP function: 1=BrRq (Broadcast Request), 2=LkUp (Lookup), 3=LkUp-Reply, 4=Fwd Req (Forward Request)
Tuple count	4	4	Number of tuples contained in the packet
NBP ID	8	8	Identifier used to match replies to requests
NBP tuple	16	Variable	Contains the name, address, and socket of a service

7.4.3 AppleTalk Echo Protocol

Each AppleTalk node contains a process known as an Echoer process that is used to respond to requests from an Echoer process. AEP uses DDP type 4, and includes an Echo-Request and an Echo-Reply (see Figure 7-11). Phase 1 and Phase 2 use the same format, and echo data is simply taken from the Echo-Request packet and returned to the sender. AEP is used for two applications: to determine if a particular node is accessible over an internet, or to obtain an estimate of the round-trip delay time for a data transmission to a particular node.

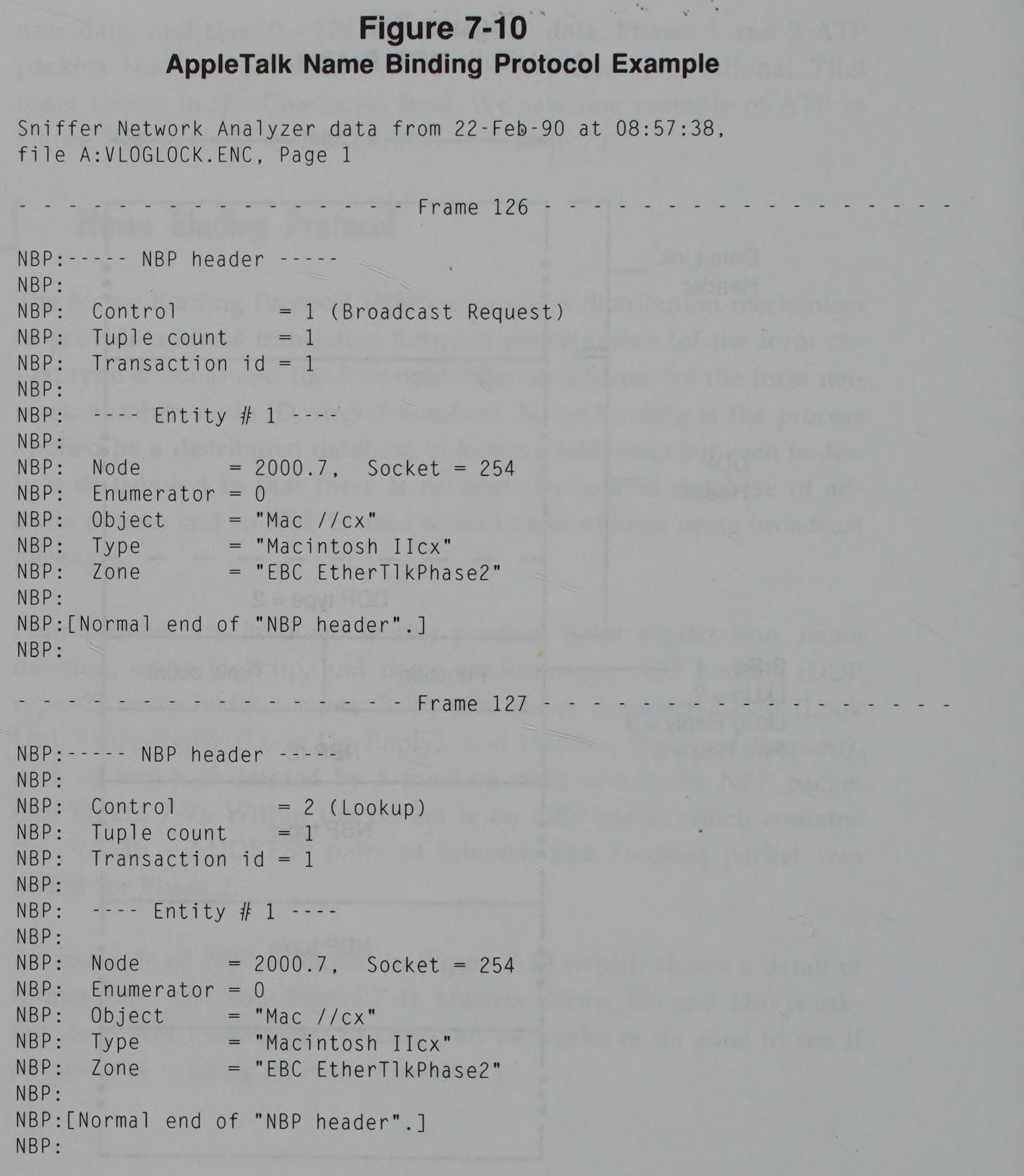

Figure 7-10 AppleTalk Name Binding Protocol Example

Sniffer trace of AppleTalk Name Binding Protocol frames 126 and 127 NBP broadcast request and lookup frame traces

Sniffer Network Analyzer data from 22-Feb-90 at 08:57:38,
file A:VLOGLOCK.ENC, Page 1

- - - - - - - - - - - - - - - - Frame 126 - - - - - - - - - - - - - - - - -

NBP:----- NBP header -----
NBP:
NBP:  Control         = 1 (Broadcast Request)
NBP:  Tuple count     = 1
NBP:  Transaction id  = 1
NBP:
NBP:  ---- Entity # 1 ----
NBP:
NBP:  Node            = 2000.7,  Socket = 254
NBP:  Enumerator      = 0
NBP:  Object          = "Mac //cx"
NBP:  Type            = "Macintosh IIcx"
NBP:  Zone            = "EBC EtherTlkPhase2"
NBP:
NBP:[Normal end of "NBP header".]
NBP:

- - - - - - - - - - - - - - - - Frame 127 - - - - - - - - - - - - - - - - -

NBP:----- NBP header -----
NBP:
NBP:  Control         = 2 (Lookup)
NBP:  Tuple count     = 1
NBP:  Transaction id  = 1
NBP:
NBP:  ---- Entity # 1 ----
NBP:
NBP:  Node            = 2000.7,  Socket = 254
NBP:  Enumerator      = 0
NBP:  Object          = "Mac //cx"
NBP:  Type            = "Macintosh IIcx"
NBP:  Zone            = "EBC EtherTlkPhase2"
NBP:
NBP:[Normal end of "NBP header".]
NBP:

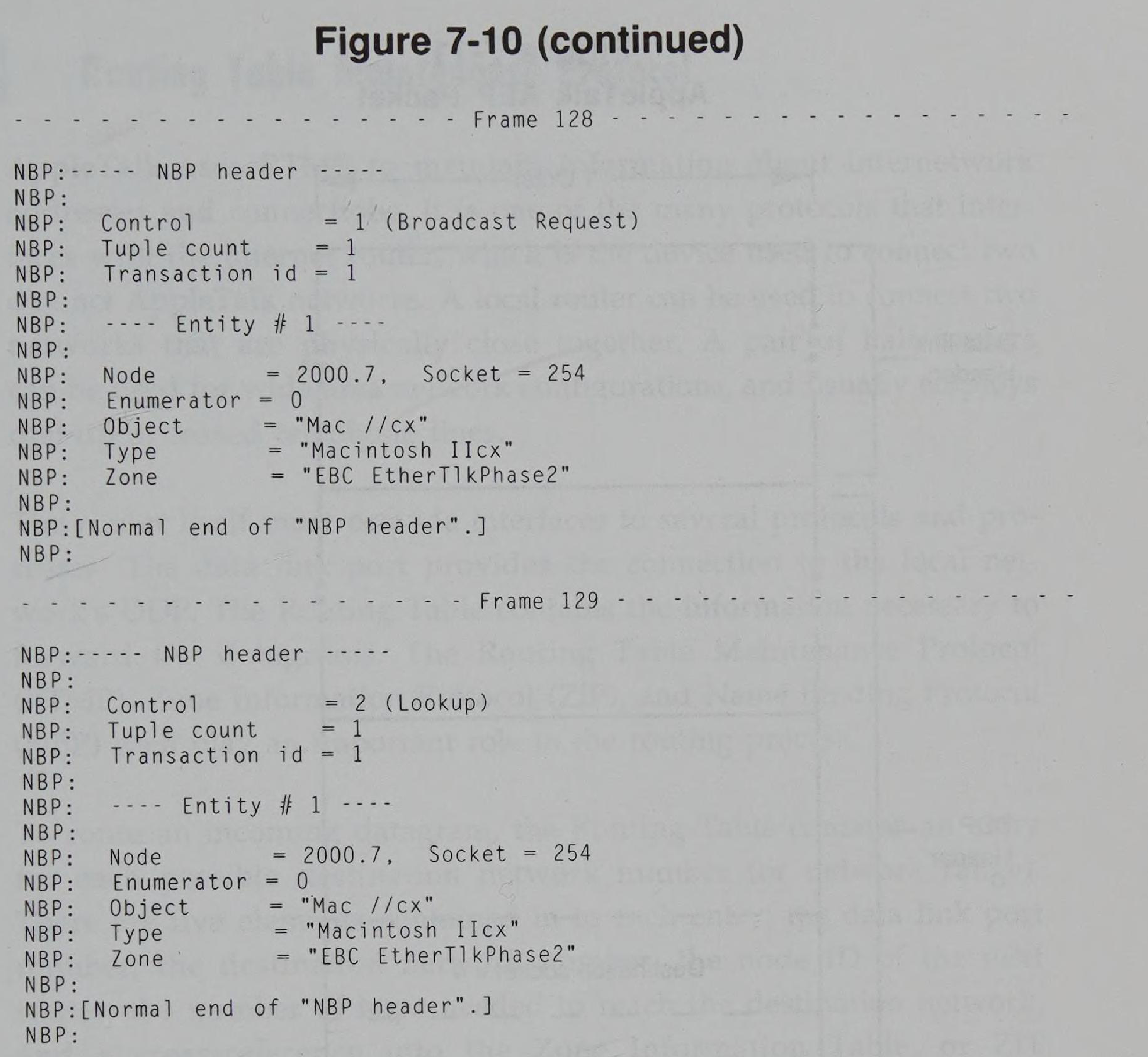

- - - - - - - - - - - - - - Frame 128 - - - - - - - - - - - - - -
NBP:----- NBP header -----
NBP:
NBP: Control          = 1 (Broadcast Request)
NBP: Tuple count      = 1
NBP: Transaction id   = 1
NBP:
NBP: ---- Entity # 1 ----
NBP:
NBP: Node             = 2000.7, Socket = 254
NBP: Enumerator       = 0
NBP: Object           = "Mac //cx"
NBP: Type             = "Macintosh IIcx"
NBP: Zone             = "EBC EtherTlkPhase2"
NBP:
NBP:[Normal end of "NBP header".]
NBP:

- - - - - - - - - - - - - - Frame 129 - - - - - - - - - - - - - -
NBP:----- NBP header -----
NBP:
NBP: Control          = 2 (Lookup)
NBP: Tuple count      = 1
NBP: Transaction id   = 1
NBP:
NBP: ---- Entity # 1 ----
NBP:
NBP: Node             = 2000.7, Socket = 254
NBP: Enumerator       = 0
NBP: Object           = "Mac //cx"
NBP: Type             = "Macintosh IIcx"
NBP: Zone             = "EBC EtherTlkPhase2"
NBP:
NBP:[Normal end of "NBP header".]
NBP:

7.4.3 AppleTalk Echo Protocol

Each AppleTalk node contains a socket, known as the Echoer socket, that is used to return (or echo) incoming data back to the sender. AEP uses DDP type=4, and has only two functions: Echo Request and Echo Reply (see Figure 7-11). Phase 1 and Phase 2 use the same packet format, and echoed data (0 - 586 octets) is sent to the destination node and returned to the sender. AEP is used for two applications: to determine if a particular node is accessible over an internet; or to obtain an estimate of the round-trip delay time for a data transmission to a particular node.

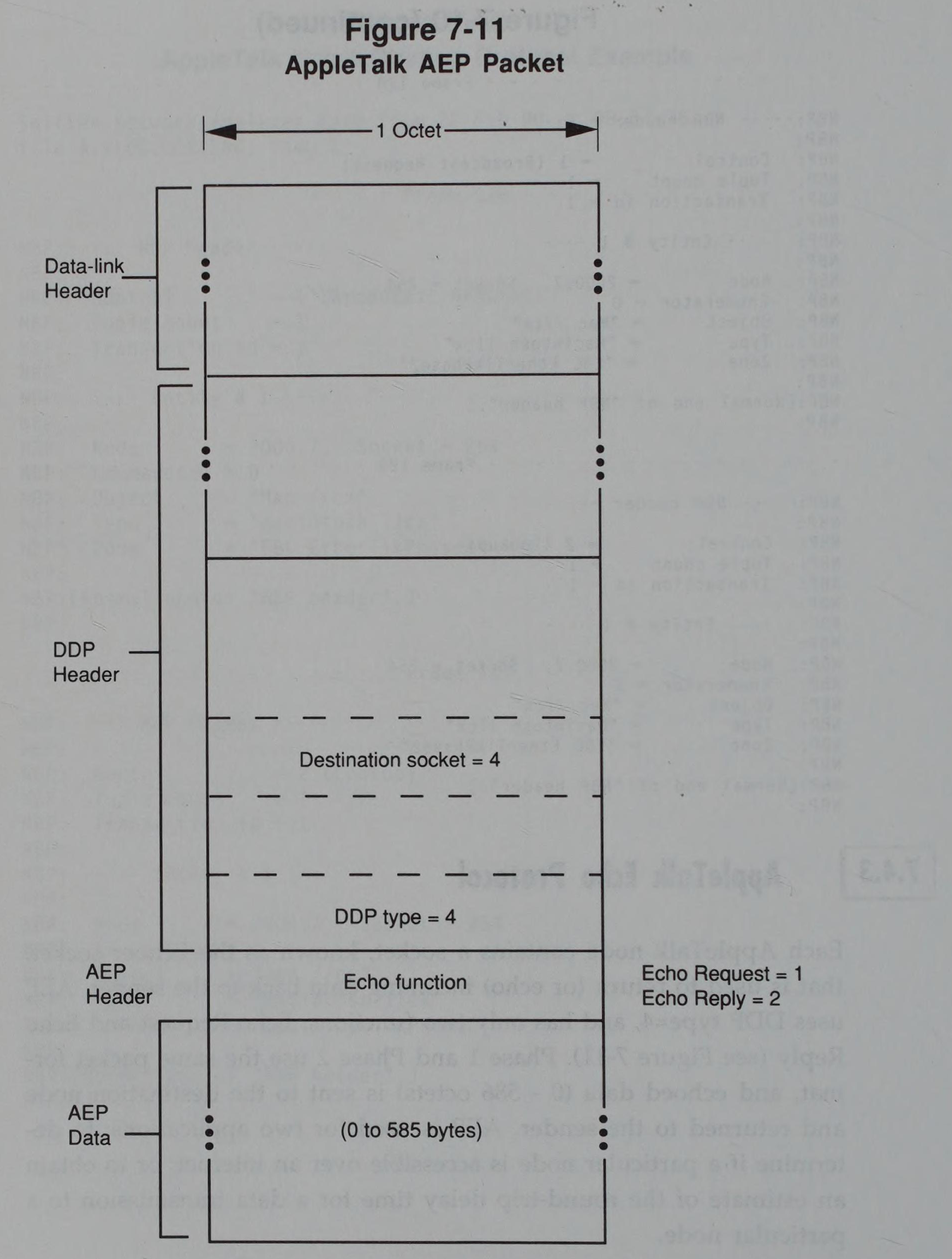

Figure 7-11 AppleTalk AEP Packet

AppleTalk AEP Packet structure

packet-beta
0-7: "Data-link Header"
8-15: "..."
16-23: "DDP Header"
24-31: "..."
32-39: "Destination socket = 4"
40-47: "DDP type = 4"
48-55: "Echo function"
56-63: "AEP Data (0 to 585 bytes)"

Field	Bit offset	Width (bits)	Description
Data-link Header	0	Variable	Underlying network media header (e.g., Ethernet, Token Ring).
DDP Header	Variable	Variable	AppleTalk Datagram Delivery Protocol header.
Destination socket	Variable	8	The destination socket for AppleTalk Echo Protocol (AEP), which is always 4.
DDP type	Variable	8	The DDP protocol type for AEP, which is always 4.
Echo function	Variable	8	Specifies the AEP message type: Echo Request = 1, Echo Reply = 2.
AEP Data	Variable	0–4680	Data field containing between 0 and 585 bytes.

7.4.4 Routing Table Maintenance Protocol

AppleTalk uses RTMP to maintain information about internetwork addresses and connections. It is one of the many protocols that interfaces with the internet router, which is the device used to connect two distinct AppleTalk networks. A local router can be used to connect two networks that are physically close together. A pair of half routers can be used for wide area network configurations, and usually employs dial-up or leased telephone lines.

The router itself must provide interfaces to several protocols and processes. The data link port provides the connection to the local network’s DDP. The Routing Table contains the information necessary to forward the datagrams. The Routing Table Maintenance Protocol (RTMP), Zone Information Protocol (ZIP), and Name Binding Protocol (NBP) each play an important role in the routing process.

To route an incoming datagram, the Routing Table contains an entry for each possible destination network number (or network range). There are five elements contained in to each entry: the data link port number, the destination network number, the node ID of the next router, the number of hops needed to reach the destination network, and a cross-reference into the Zone Information Table, or ZIT (discussed in section 7.5.1). RTMP is used by the routers to exchange this routing information, thereby keeping their respective tables current and minimizing internetwork processing delays.

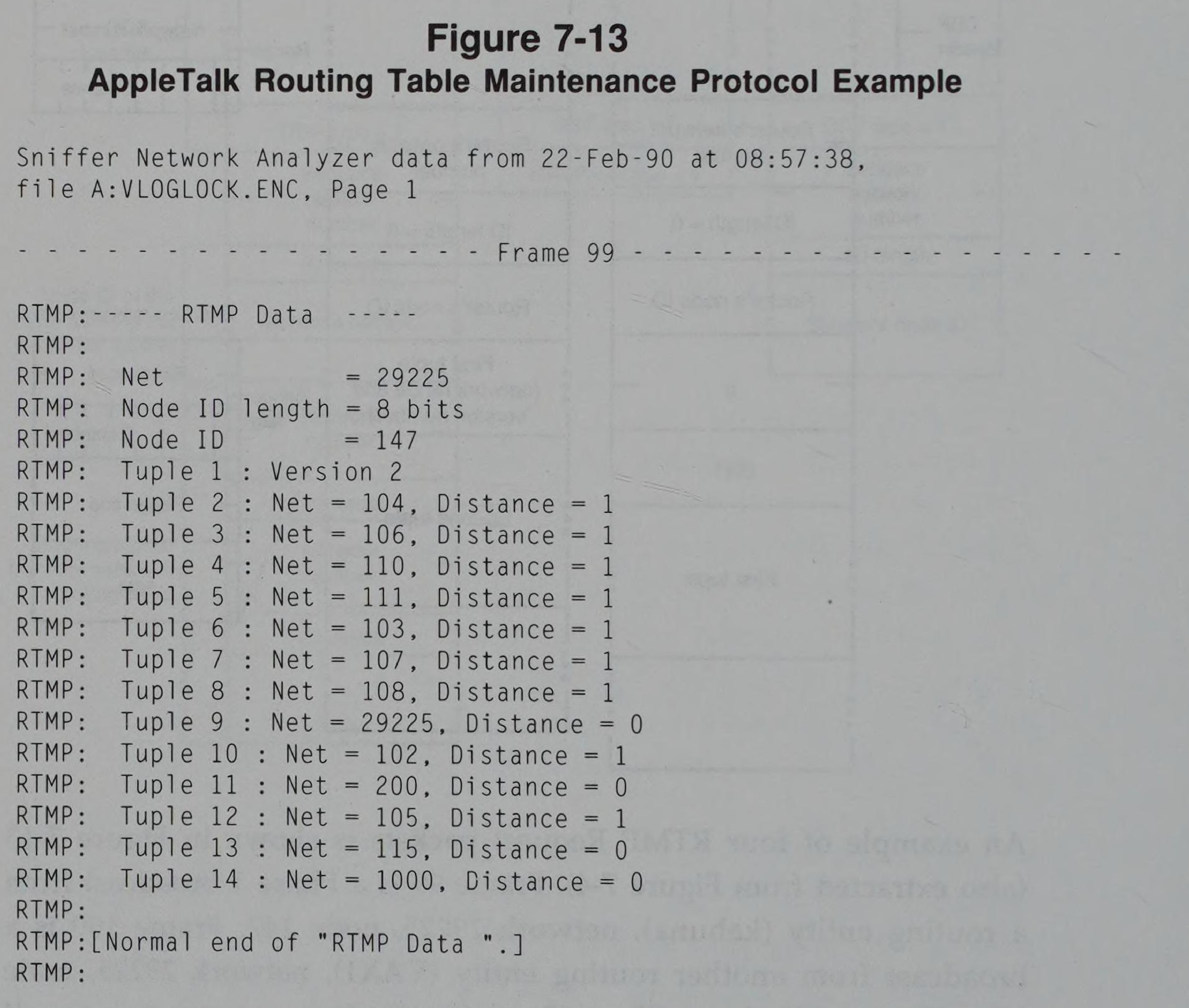

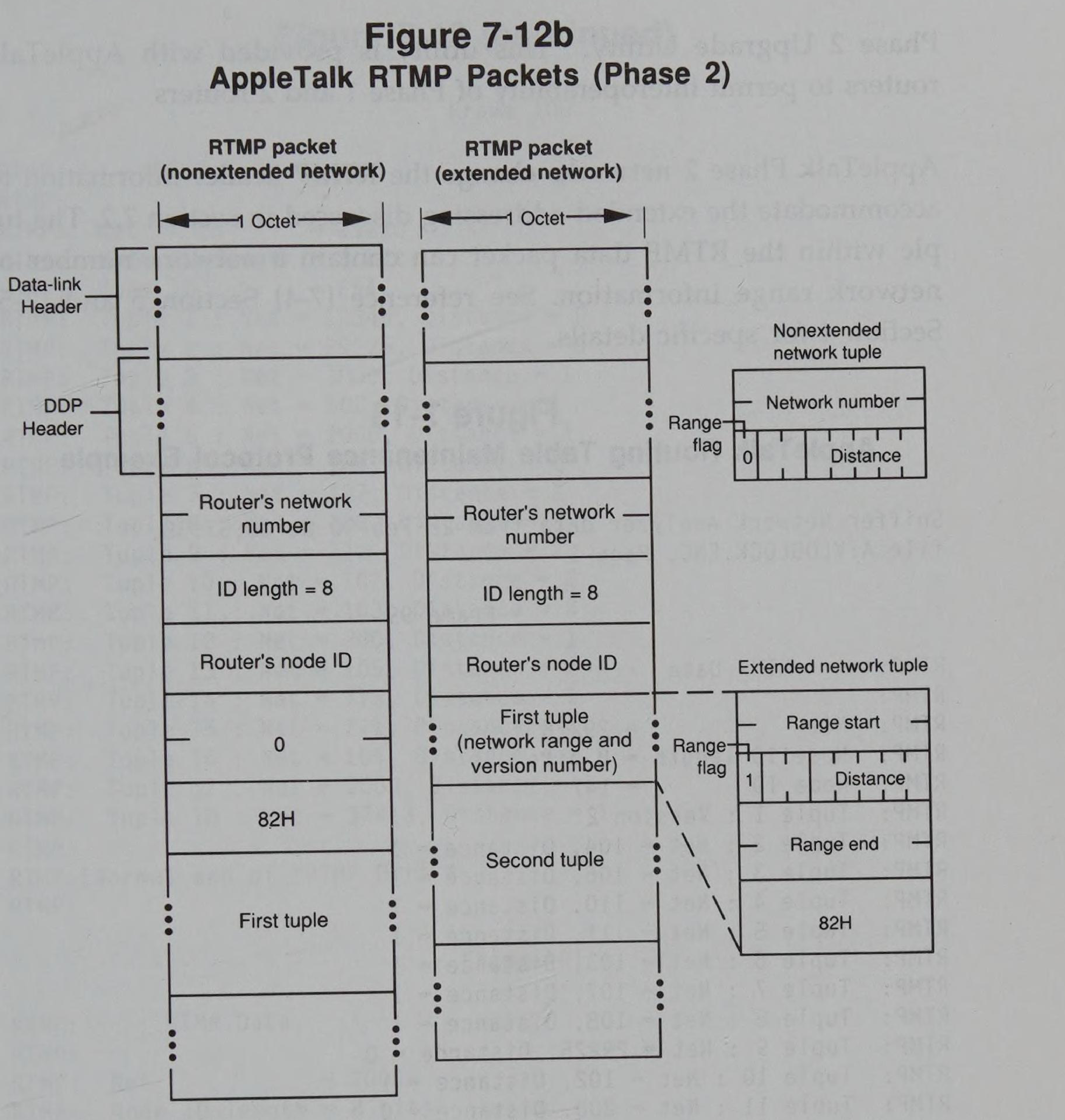

RTMP has three different packets: Data, Request, and Response (see Figures 7-12a and 7-12b). The Data packet (DDP type 1) is used to maintain the routing tables and contains routing tuples (network number and distance) which are the table entries to be exchanged. RTMP Request (DDP type 5) and RTMP Response (DDP type 1) packets are used by non-router nodes to obtain information about the routers connected to their network. Phase 2 has added a fourth packet, a Route Data Request (RDR) packet that is used to obtain information on demand from any router.

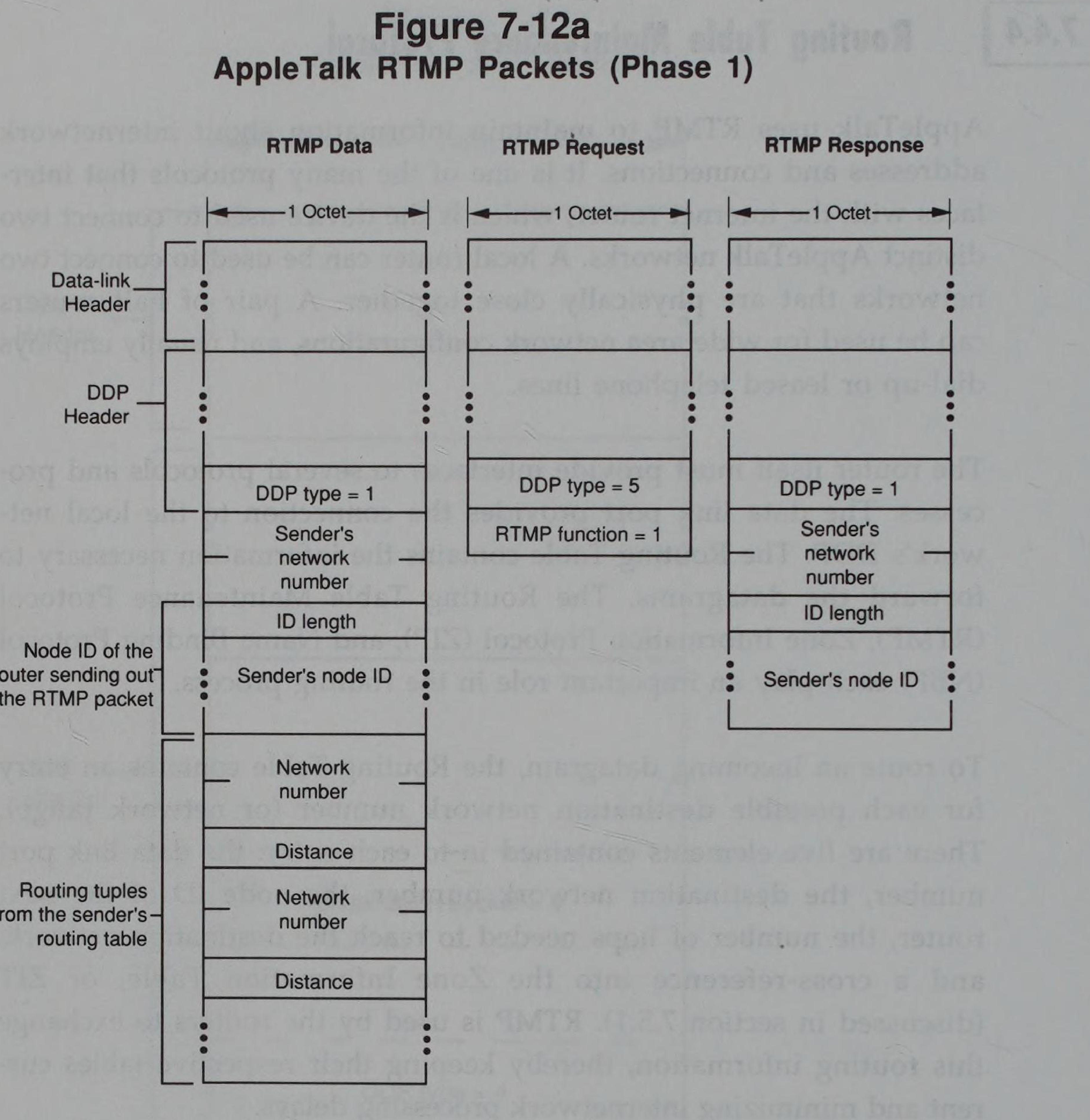

Figure 7-12a AppleTalk RTMP Packets (Phase 1)

Diagram of AppleTalk RTMP packet formats for Phase 1, illustrating RTMP Data, RTMP Request, and RTMP Response structures.

RTMP Data (Phase 1)

packet-beta
0-7: "DDP type = 1"
8-23: "Sender's network number"
24-31: "ID length"
32-39: "Sender's node ID"
40-55: "Network number (Tuple 1)"
56-63: "Distance (Tuple 1)"
64-79: "Network number (Tuple 2)"
80-87: "Distance (Tuple 2)"

Field	Bit offset	Width (bits)	Description
DDP type	0	8	The DDP protocol type. For RTMP Data, this is 1.
Sender’s network number	8	16	The network number of the router sending the RTMP packet.
ID length	24	8	The length of the Node ID field. In Phase 1, this is 8 bits.
Sender’s node ID	32	8	The node ID of the router sending the RTMP packet.
Network number	40 + 24n	16	The network number for a routing tuple from the sender’s routing table.
Distance	56 + 24n	8	The distance (hop count) to the network specified in the network number field.

RTMP Request (Phase 1)

packet-beta
0-7: "DDP type = 5"
8-15: "RTMP function = 1"

Field	Bit offset	Width (bits)	Description
DDP type	0	8	The DDP protocol type. For RTMP Request, this is 5.
RTMP function	8	8	The RTMP function code. Set to 1 for an RTMP request.

RTMP Response (Phase 1)

packet-beta
0-7: "DDP type = 1"
8-23: "Sender's network number"
24-31: "ID length"
32-39: "Sender's node ID"

Field	Bit offset	Width (bits)	Description
DDP type	0	8	The DDP protocol type. For RTMP Response, this is 1.
Sender’s network number	8	16	The network number of the router sending the RTMP packet.
ID length	24	8	The length of the Node ID field.
Sender’s node ID	32	8	The node ID of the router sending the RTMP packet.

Figure 7-12b AppleTalk RTMP Packets (Phase 2)

AppleTalk RTMP Packets (Phase 2) diagram showing the structure of nonextended and extended network packets along with their tuple formats.

RTMP packet (nonextended network)

packet-beta
0-7: "Data-link Header"
8-15: "DDP Header"
16-31: "Router's network number"
32-39: "ID length = 8"
40-47: "Router's node ID"
48-55: "0"
56-63: "82H"
64-95: "First tuple"

Field	Bit offset	Width (bits)	Description
Data-link Header	0	8	Data-link layer header (variable length, shown as 1 octet for diagram purposes)
DDP Header	8	8	Datagram Delivery Protocol header (variable length, shown as 1 octet for diagram purposes)
Router’s network number	16	16	Network number of the sending router
ID length = 8	32	8	Length of the node ID in bits, must be 8
Router’s node ID	40	8	Node ID of the sending router
0	48	8	Constant value 0
82H	56	8	Version number (0x82)
First tuple	64	32	The first routing tuple in the packet

RTMP packet (extended network)

packet-beta
0-7: "Data-link Header"
8-15: "DDP Header"
16-31: "Router's network number"
32-39: "ID length = 8"
40-47: "Router's node ID"
48-95: "First tuple (network range and version number)"
96-127: "Second tuple"

Field	Bit offset	Width (bits)	Description
Data-link Header	0	8	Data-link layer header (variable length, shown as 1 octet for diagram purposes)
DDP Header	8	8	Datagram Delivery Protocol header (variable length, shown as 1 octet for diagram purposes)
Router’s network number	16	16	Network number of the sending router
ID length = 8	32	8	Length of the node ID in bits, must be 8
Router’s node ID	40	8	Node ID of the sending router
First tuple	48	48	First tuple containing network range and version number (6 octets)
Second tuple	96	32	The second routing tuple in the packet

Nonextended network tuple

packet-beta
0-15: "Network number"
16: "Range flag (0)"
17-23: "Distance"

Field	Bit offset	Width (bits)	Description
Network number	0	16	16-bit AppleTalk network number
Range flag	16	1	Bit indicating a non-extended network tuple (0)
Distance	17	7	Hop count to the specified network

Extended network tuple

packet-beta
0-15: "Range start"
16: "Range flag (1)"
17-23: "Distance"
24-39: "Range end"
40-47: "82H"

Field	Bit offset	Width (bits)	Description
Range start	0	16	Start of the network number range
Range flag	16	1	Bit indicating an extended network tuple (1)
Distance	17	7	Hop count to the specified network range
Range end	24	16	End of the network number range
82H	40	8	Version number (0x82)

An example of four RTMP Request packets is shown in Figure 7-13 (also extracted from Figure 7-4). Frame 99 is a Phase 1 broadcast from a routing entity (kahuna), network 29225, node 147. Frame 100 is a broadcast from another routing entity (VAX1), network 29225, node 254. Frame 101 is a Phase 2 multicast from macrouter to all AppleTalk nodes (delineated by the destination address 090007FFFFFFH) on network 2000. Frame 102 is a Phase 1 broadcast from macrouter, network 29225, node 141. Note that macrouter is handling both Phase 1 and Phase 2 protocols, and is running the Apple Phase 2 Upgrade Utility. This utility is provided with AppleTalk routers to permit interoperability of Phase 1 and 2 routers.

AppleTalk Phase 2 networks change the RTMP header information to accommodate the extended addressing discussed in section 7.2. The tuple within the RTMP data packet can contain a network number or network range information. See reference [7-4] Section 5 and [7-5] Section 4 for specific details.

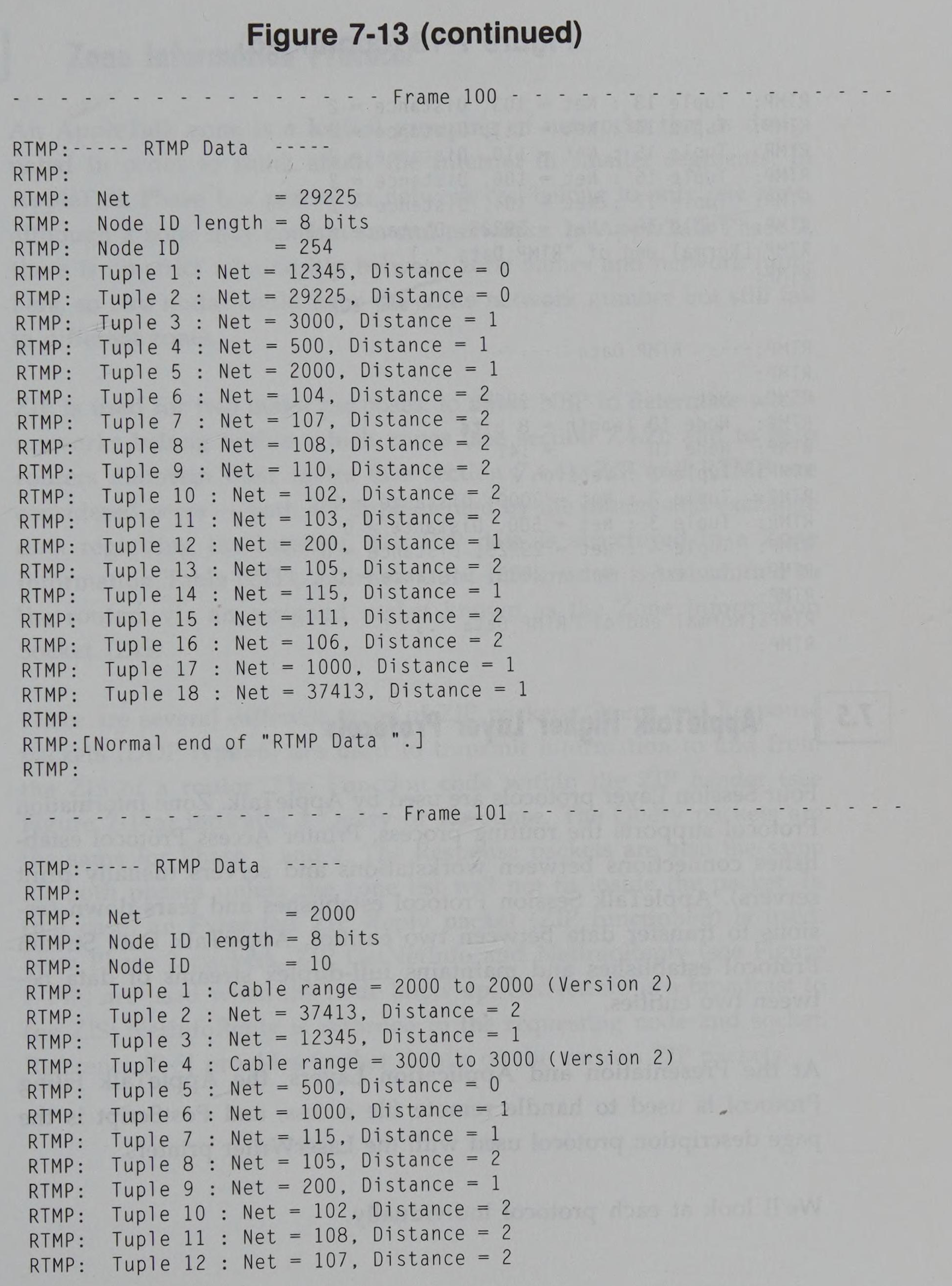

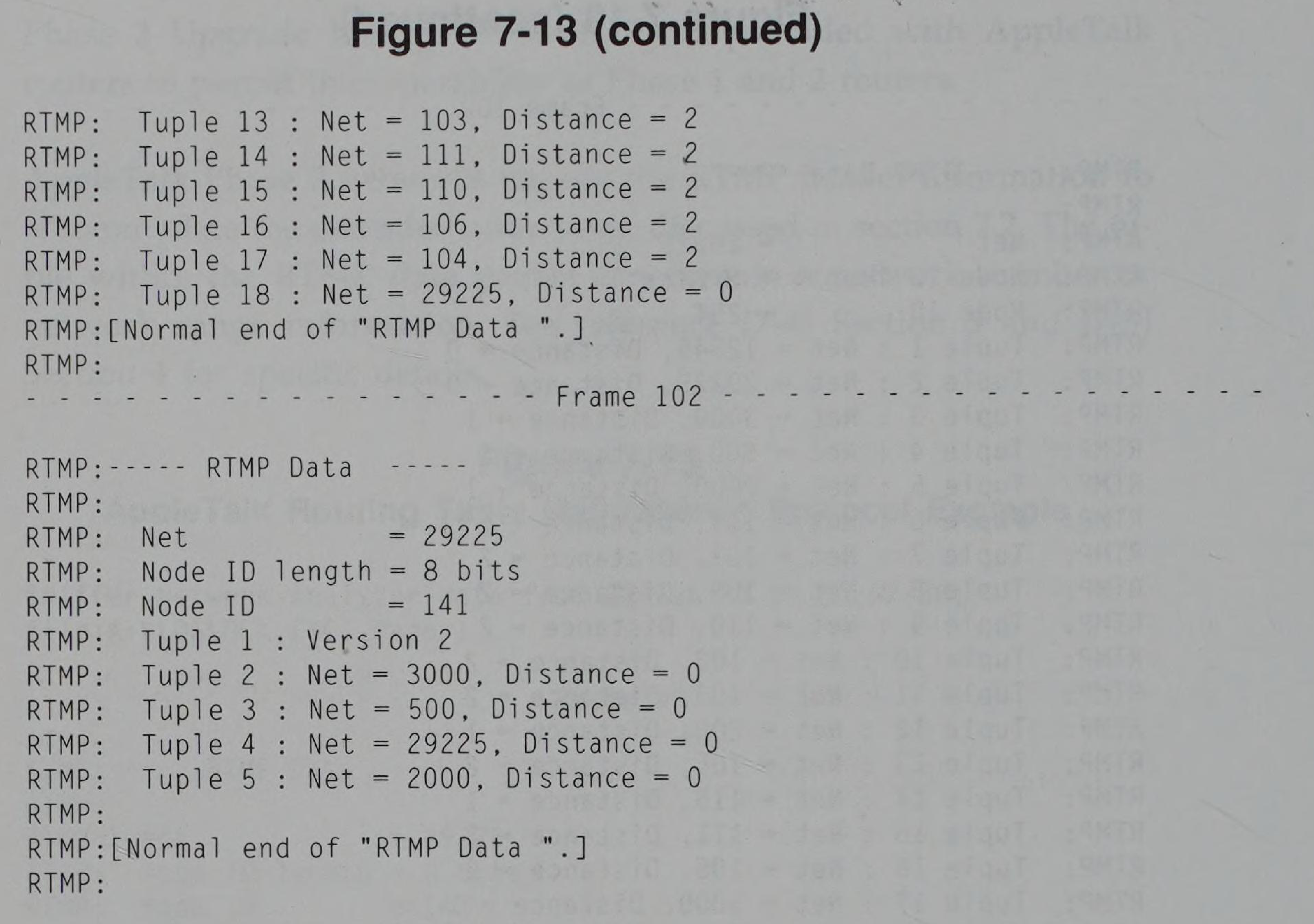

Figure 7-13 AppleTalk Routing Table Maintenance Protocol Example

AppleTalk Routing Table Maintenance Protocol Example sniffer trace RTMP data for frames 100 and 101 RTMP data tuples trace for Frame 102

Sniffer Network Analyzer data from 22-Feb-90 at 08:57:38,
file A:VLOGLOCK.ENC, Page 1

- - - - - - - - - - - - - - Frame 99 - - - - - - - - - - - - - -

RTMP:----- RTMP Data -----
RTMP:
RTMP: Net = 29225
RTMP: Node ID length = 8 bits
RTMP: Node ID = 147
RTMP: Tuple 1 : Version 2
RTMP: Tuple 2 : Net = 104, Distance = 1
RTMP: Tuple 3 : Net = 106, Distance = 1
RTMP: Tuple 4 : Net = 110, Distance = 1
RTMP: Tuple 5 : Net = 111, Distance = 1
RTMP: Tuple 6 : Net = 103, Distance = 1
RTMP: Tuple 7 : Net = 107, Distance = 1
RTMP: Tuple 8 : Net = 108, Distance = 1
RTMP: Tuple 9 : Net = 29225, Distance = 0
RTMP: Tuple 10 : Net = 102, Distance = 1
RTMP: Tuple 11 : Net = 200, Distance = 0
RTMP: Tuple 12 : Net = 105, Distance = 1
RTMP: Tuple 13 : Net = 115, Distance = 0
RTMP: Tuple 14 : Net = 1000, Distance = 0
RTMP:
RTMP:[Normal end of "RTMP Data ".]
RTMP:

- - - - - - - - - - - - - - - Frame 100 - - - - - - - - - - - - - - -

RTMP:----- RTMP Data -----
RTMP:
RTMP: Net             = 29225
RTMP: Node ID length  = 8 bits
RTMP: Node ID         = 254
RTMP: Tuple 1 : Net = 12345, Distance = 0
RTMP: Tuple 2 : Net = 29225, Distance = 0
RTMP: Tuple 3 : Net = 3000, Distance = 1
RTMP: Tuple 4 : Net = 500, Distance = 1
RTMP: Tuple 5 : Net = 2000, Distance = 1
RTMP: Tuple 6 : Net = 104, Distance = 2
RTMP: Tuple 7 : Net = 107, Distance = 2
RTMP: Tuple 8 : Net = 108, Distance = 2
RTMP: Tuple 9 : Net = 110, Distance = 2
RTMP: Tuple 10 : Net = 102, Distance = 2
RTMP: Tuple 11 : Net = 103, Distance = 2
RTMP: Tuple 12 : Net = 200, Distance = 1
RTMP: Tuple 13 : Net = 105, Distance = 2
RTMP: Tuple 14 : Net = 115, Distance = 1
RTMP: Tuple 15 : Net = 111, Distance = 2
RTMP: Tuple 16 : Net = 106, Distance = 2
RTMP: Tuple 17 : Net = 1000, Distance = 1
RTMP: Tuple 18 : Net = 37413, Distance = 1
RTMP:
RTMP: [Normal end of "RTMP Data ".]
RTMP:

- - - - - - - - - - - - - - - Frame 101 - - - - - - - - - - - - - - -

RTMP:----- RTMP Data -----
RTMP:
RTMP: Net             = 2000
RTMP: Node ID length  = 8 bits
RTMP: Node ID         = 10
RTMP: Tuple 1 : Cable range = 2000 to 2000 (Version 2)
RTMP: Tuple 2 : Net = 37413, Distance = 2
RTMP: Tuple 3 : Net = 12345, Distance = 1
RTMP: Tuple 4 : Cable range = 3000 to 3000 (Version 2)
RTMP: Tuple 5 : Net = 500, Distance = 0
RTMP: Tuple 6 : Net = 1000, Distance = 1
RTMP: Tuple 7 : Net = 115, Distance = 1
RTMP: Tuple 8 : Net = 105, Distance = 2
RTMP: Tuple 9 : Net = 200, Distance = 1
RTMP: Tuple 10 : Net = 102, Distance = 2
RTMP: Tuple 11 : Net = 108, Distance = 2
RTMP: Tuple 12 : Net = 107, Distance = 2
RTMP: Tuple 13 : Net = 103, Distance = 2
RTMP: Tuple 14 : Net = 111, Distance = 2
RTMP: Tuple 15 : Net = 110, Distance = 2
RTMP: Tuple 16 : Net = 106, Distance = 2
RTMP: Tuple 17 : Net = 104, Distance = 2
RTMP: Tuple 18 : Net = 29225, Distance = 0
RTMP:[Normal end of "RTMP Data ".]
RTMP:
- - - - - - - - - - - - - Frame 102 - - - - - - - - - - - - -

RTMP:----- RTMP Data -----
RTMP:
RTMP:  Net            = 29225
RTMP:  Node ID length = 8 bits
RTMP:  Node ID        = 141
RTMP:  Tuple 1 : Version 2
RTMP:  Tuple 2 : Net = 3000, Distance = 0
RTMP:  Tuple 3 : Net = 500, Distance = 0
RTMP:  Tuple 4 : Net = 29225, Distance = 0
RTMP:  Tuple 5 : Net = 2000, Distance = 0
RTMP:
RTMP:[Normal end of "RTMP Data ".]
RTMP:

7.5 AppleTalk Higher Layer Protocols

Four Session Layer protocols are used by AppleTalk. Zone Information Protocol supports the routing process. Printer Access Protocol establishes connections between workstations and servers (usually print servers). AppleTalk Session Protocol establishes and tears down sessions to transfer data between two entities. AppleTalk Data Stream Protocol establishes and maintains full-duplex streams of data between two entities.

At the Presentation and Application Layers, the AppleTalk Filing Protocol is used to handle remote file access, and PostScript is the page description protocol used with the LaserWriter printers.

We’ll look at each protocol individually.

7.5.1 Zone Information Protocol

An AppleTalk zone is a logical grouping of networks that is designated in order to think about the internet in smaller segments. In AppleTalk Phase 1, a particular network can belong to only one zone, although a zone may contain several networks. In AppleTalk Phase 2, there is no strict relationship between zone names and network numbers, so two nodes could have the same network number but still fall in different zones.

ZIP is used for two major purposes: to allow NBP to determine which networks belong within which zones (see section 7.4.2); and to help routers maintain their tables (see section 7.4.4). ZIP and RTMP are considered peers — both are implemented by the routers and exchange data regarding the internet. The ZIP data is structured in a Zone Information Table (ZIT), and new zone information is transmitted to the routers via an assigned socket known as the Zone Information Socket (ZIS).

There are several different types of ZIP packets. Query and Response packets (DDP type=6) are used to transmit information to and from the ZIS of a router. The Function code within the ZIP header (see Figure 7-14a) indicates a Query or Response. The Query packets are the same for Phase 1 and 2. The Response packets are also the same for both phases unless the zone list will not fit inside the packet. In that case, an Extended ZIP Reply packet (ZIP function=8) is used. New Phase 2 packets, ZIP GetNetInfo and NetInfoReply (see Figure 7-14b) are used when the node boots up. GetNetInfo is a broadcast to the ZIS; NetInfoReply is returned to the requesting node and socket. Reference [7-5] provides further details on the various ZIP packets.

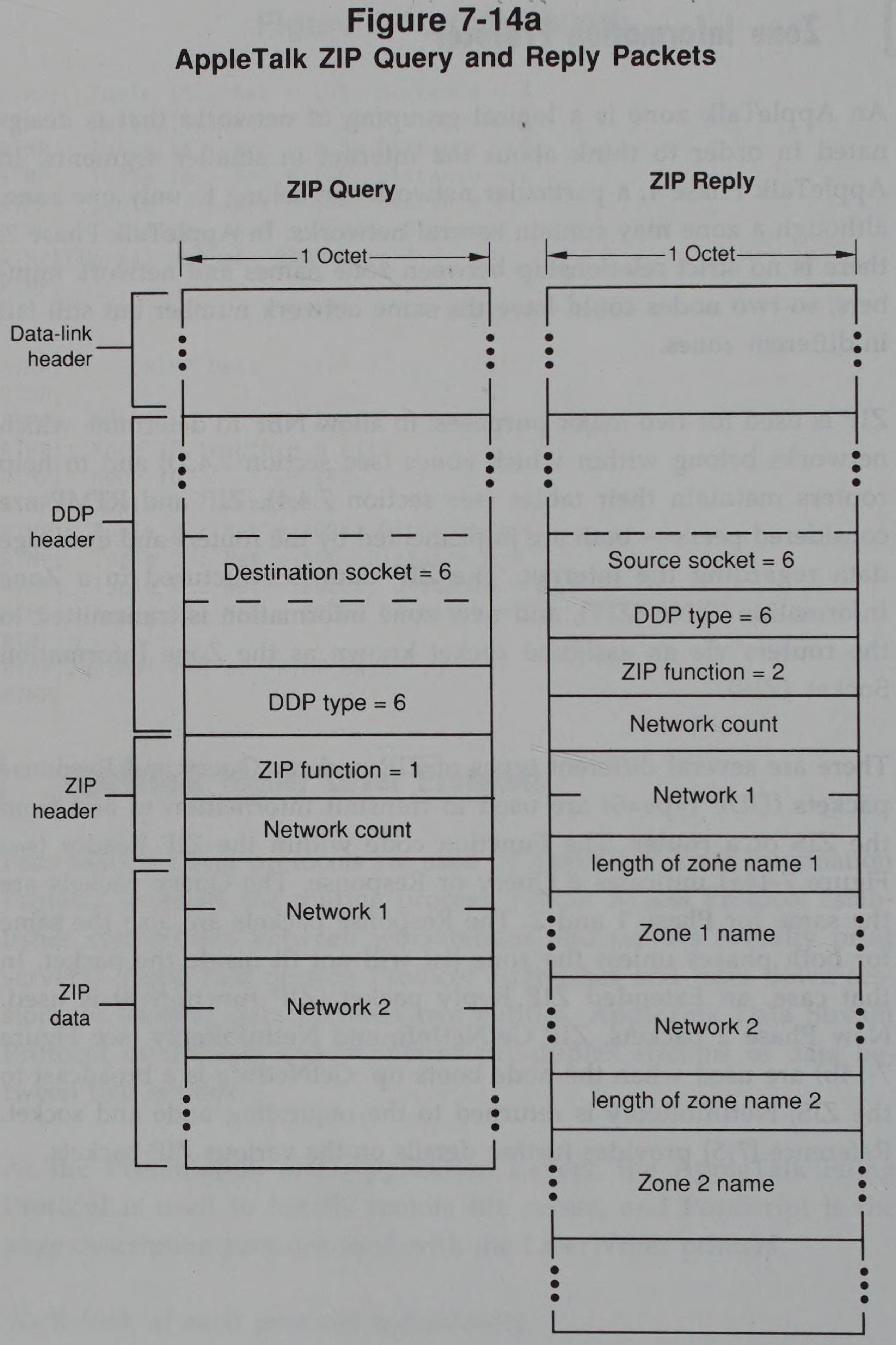

Figure 7-14a AppleTalk ZIP Query and Reply Packets

AppleTalk ZIP Query and Reply Packets

ZIP Query

Data-link header (variable length)

DDP header

…
Destination socket = 6
DDP type = 6

ZIP header

ZIP function = 1
Network count

ZIP data

Network 1
Network 2
…

packet-beta
0-7: "Destination Socket (6)"
8-15: "DDP Type (6)"
16-23: "ZIP Function (1)"
24-31: "Network Count"
32-47: "Network 1"
48-63: "Network 2"

Field	Bit offset	Width (bits)	Description
Destination socket	0	8	DDP Destination Socket, set to 6 for ZIP packets.
DDP type	8	8	DDP Protocol Type, set to 6 for ZIP.
ZIP function	16	8	ZIP function code, 1 for ZIP Query.
Network count	24	8	The number of network numbers following in the query.
Network 1	32	16	The first 16-bit network number being queried.
Network 2	48	16	The second 16-bit network number being queried.

ZIP Reply

Data-link header (variable length)

DDP header

…
Source socket = 6
DDP type = 6

ZIP header

ZIP function = 2
Network count

ZIP data

Network 1
length of zone name 1
Zone 1 name
Network 2
length of zone name 2
Zone 2 name
…

packet-beta
0-7: "Source Socket (6)"
8-15: "DDP Type (6)"
16-23: "ZIP Function (2)"
24-31: "Network Count"
32-47: "Network 1"
48-55: "length of zone name 1"
56-87: "Zone 1 name (variable)"
88-103: "Network 2"
104-111: "length of zone name 2"
112-143: "Zone 2 name (variable)"

Field	Bit offset	Width (bits)	Description
Source socket	0	8	DDP Source Socket, set to 6 for ZIP packets.
DDP type	8	8	DDP Protocol Type, set to 6 for ZIP.
ZIP function	16	8	ZIP function code, 2 for ZIP Reply.
Network count	24	8	The number of networks in the reply.
Network 1	32	16	The first 16-bit network number.
length of zone name 1	48	8	The length of the first zone name in octets.
Zone 1 name	56	Variable	The name of the zone associated with Network 1.
Network 2	Variable	16	The second 16-bit network number.
length of zone name 2	Variable	8	The length of the second zone name in octets.
Zone 2 name	Variable	Variable	The name of the zone associated with Network 2.

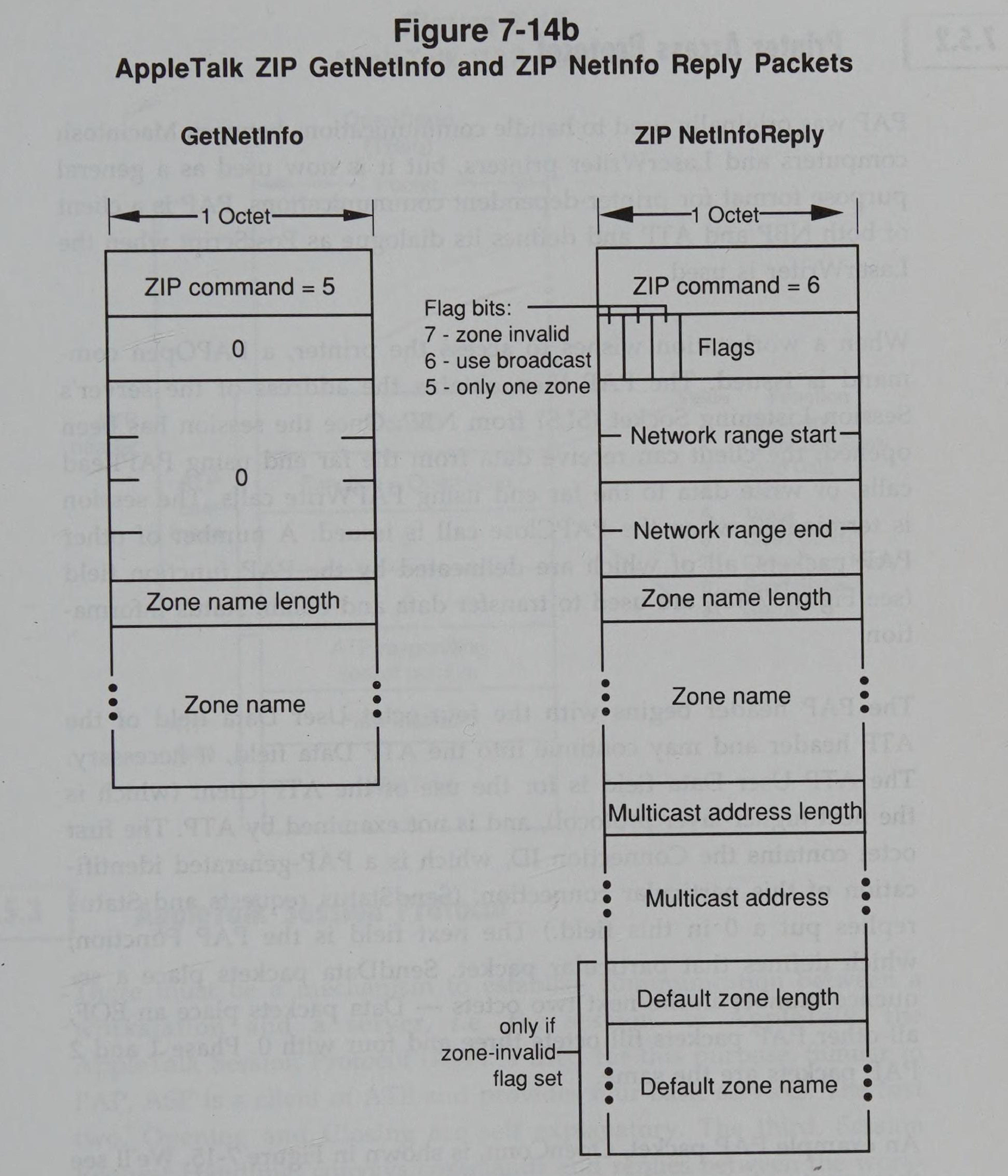

Figure 7-14b AppleTalk ZIP GetNetInfo and ZIP NetInfo Reply Packets

ZIP GetNetInfo and ZIP NetInfo Reply Packets

GetNetInfo

packet-beta
0-7: "ZIP command = 5"
8-15: "0"
16-31: "0"
32-39: "Zone name length"
40-47: "Zone name"

Field	Bit offset	Width (bits)	Description
ZIP command	0	8	ZIP command code (5 for GetNetInfo).
Reserved	8	8	Reserved field, set to 0.
Reserved	16	16	Reserved field, set to 0.
Zone name length	32	8	Length of the zone name field in octets.
Zone name	40	Variable	The zone name.

ZIP NetInfoReply

packet-beta
0-7: "ZIP command = 6"
8: "Zone invalid"
9: "Use broadcast"
10: "Only one zone"
11-15: "Reserved"
16-31: "Network range start"
32-47: "Network range end"
48-55: "Zone name length"
56-63: "Zone name"
64-71: "Multicast address length"
72-79: "Multicast address"
80-87: "Default zone length"
88-95: "Default zone name"

Field	Bit offset	Width (bits)	Description
ZIP command	0	8	ZIP command code (6 for NetInfoReply).
Flags	8	8	Control flags for the reply.
- Zone invalid	8	1	Bit 7: set if the requested zone is invalid.
- Use broadcast	9	1	Bit 6: set if broadcast should be used.
- Only one zone	10	1	Bit 5: set if there is only one zone on this network.
- Reserved	11	5	Bits 4-0 are reserved and set to 0.
Network range start	16	16	Start of the cable network number range.
Network range end	32	16	End of the cable network number range.
Zone name length	48	8	Length of the zone name field.
Zone name	56	Variable	The zone name.
Multicast address length	64	8	Length of the multicast address field.
Multicast address	72	Variable	The multicast address for the zone.
Default zone length	80	8	Length of the default zone name (only present if zone-invalid flag is set).
Default zone name	88	Variable	The default zone name (only present if zone-invalid flag is set).

7.5.2 Printer Access Protocol

PAP was originally used to handle communications between Macintosh computers and LaserWriter printers, but it is now used as a general purpose format for printer-dependent communications. PAP is a client of both NBP and ATP and defines its dialogue as PostScript when the LaserWriter is used.

When a workstation wishes to access the printer, a PAPOpen command is issued. The PAP then obtains the address of the server’s Session Listening Socket (SLS) from NBP. Once the session has been opened, the client can receive data from the far end using PAPRead calls, or write data to the far end using PAPWrite calls. The session is terminated when the PAPClose call is issued. A number of other PAP packets, all of which are delineated by the PAP function field (see Figure 7-15), are used to transfer data and obtain status information.

The PAP header begins with the four-octet User Data field of the ATP header and may continue into the ATP Data field, if necessary. The ATP User Data field is for the use of the ATP client (which is the next higher layer protocol), and is not examined by ATP. The first octet contains the Connection ID, which is a PAP-generated identification of this particular connection. (SendStatus requests and Status replies put a 0 in this field.) The next field is the PAP Function, which defines that particular packet. SendData packets place a sequence number in the next two octets — Data packets place an EOF; all other PAP packets fill octets three and four with 0. Phase 1 and 2 PAP packets are the same.

An example PAP packet, OpenConn, is shown in Figure 7-15. We’ll see these protocols in use later when we analyze a print job.

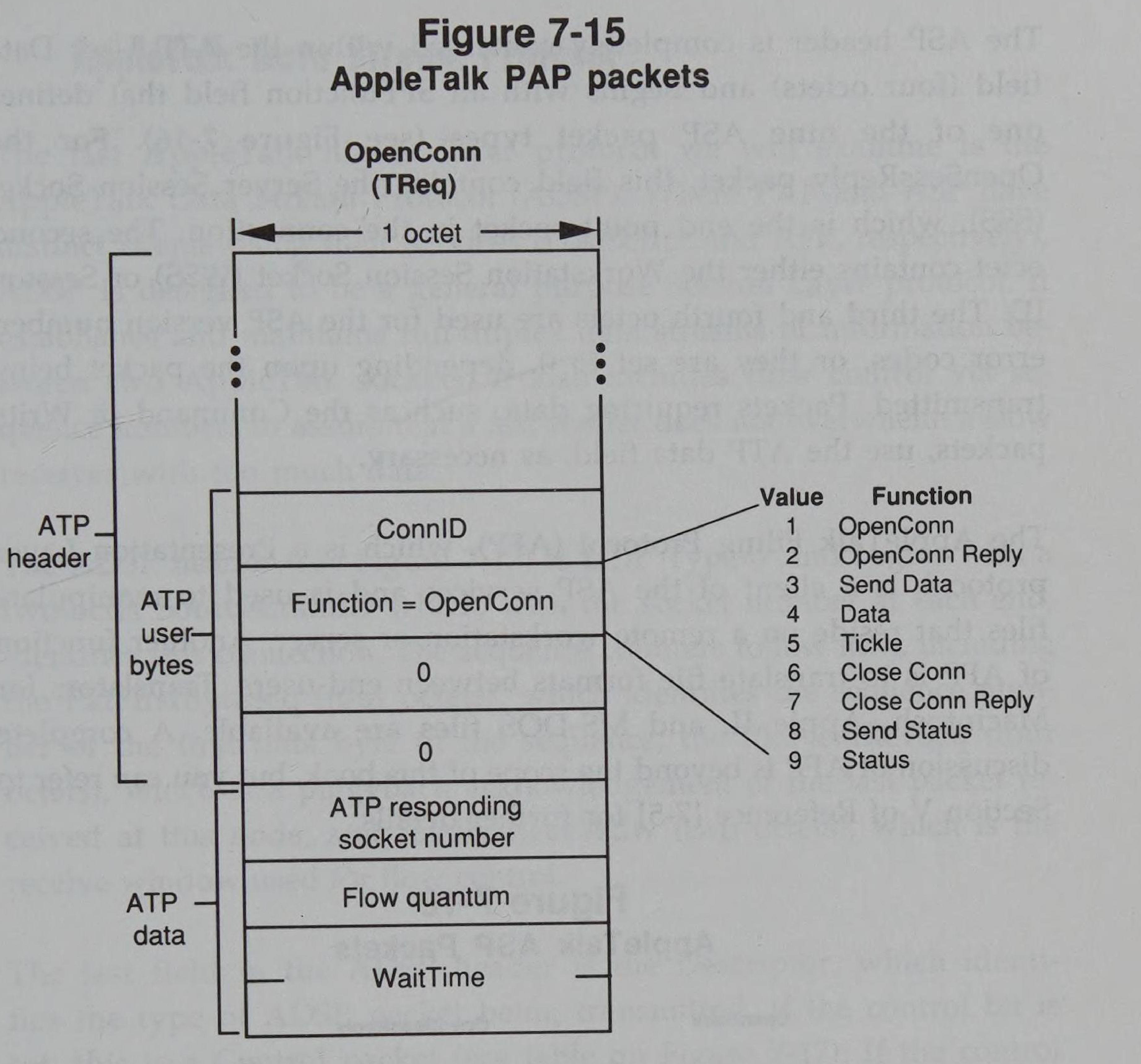

Figure 7-15 AppleTalk PAP packets

OpenConn (TReq)

Diagram showing the structure of an AppleTalk PAP OpenConn (TReq) packet including the ATP header, user bytes, and data, with a function code lookup table.

packet-beta
0-7: "ConnID"
8-15: "Function"
16-23: "0"
24-31: "0"
32-39: "ATP responding socket number"
40-47: "Flow quantum"
48-63: "WaitTime"

Field	Bit offset	Width (bits)	Description
ConnID	0	8	Connection Identifier
Function	8	8	PAP function code (e.g., 1 for OpenConn)
0	16	8	Reserved (zero)
0	24	8	Reserved (zero)
ATP responding socket number	32	8	Socket number for PAP response
Flow quantum	40	8	Flow quantum for PAP flow control
WaitTime	48	16	Time to wait for PAP response

Function Values:

Value	Function
1	OpenConn
2	OpenConn Reply
3	Send Data
4	Data
5	Tickle
6	Close Conn
7	Close Conn Reply
8	Send Status
9	Status

7.5.3 AppleTalk Session Protocol

There must be a mechanism to establish communication between a workstation and a server, i.e. the session. In AppleTalk, the AppleTalk Session Protocol (ASP) is used for this purpose. Similar to PAP, ASP is a client of ATP and provides four basic services. The first two, Opening and Closing are self explanatory. The third, Session Request Handling, conveys commands and replies between the workstation and the server. The fourth, Session Management, determines the current status of the remote end (known as tickling), and assures the reliability of the session packets.

The ASP header is completely contained within the ATP User Data field (four octets) and begins with an SPFunction field that defines one of the nine ASP packet types (see Figure 7-16). For the OpenSessReply packet, this field contains the Server Session Socket (SSS), which is the end point socket in the connection. The second octet contains either the Workstation Session Socket (WSS) or Session ID. The third and fourth octets are used for the ASP version number, error codes, or they are set to 0, depending upon the packet being transmitted. Packets requiring data, such as the Command or Write packets, use the ATP data field, as necessary.

The AppleTalk Filing Protocol (AFP), which is a Presentation Layer protocol, is a client of the ASP services and is used to manipulate files that reside on a remote workstation or server. Another function of AFP is to translate file formats between end-users. Translators for Macintosh, Apple II, and MS-DOS files are available. A complete discussion of AFP is beyond the scope of this book, but you can refer to Section V of Reference [7-5] for further details.

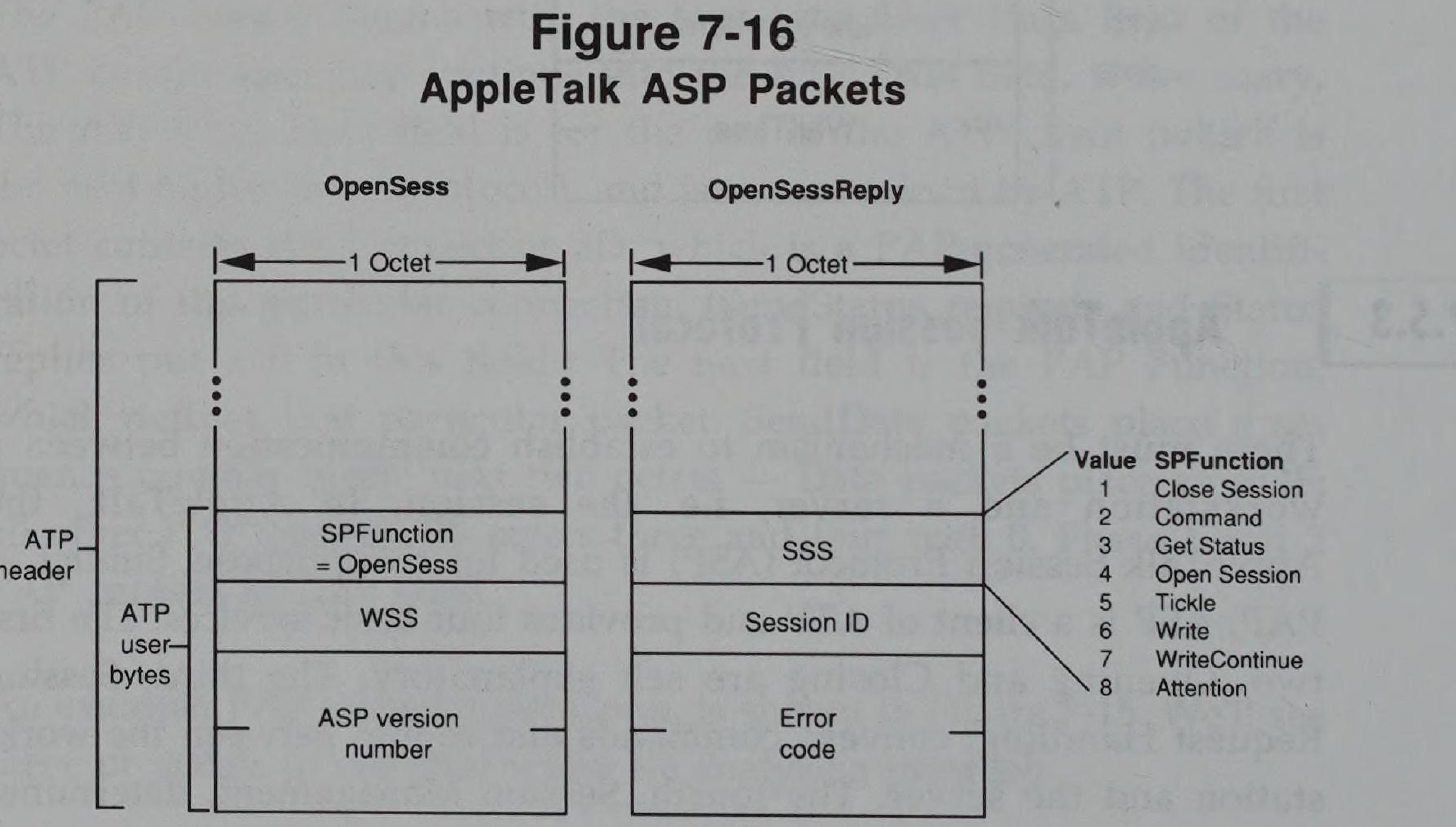

Figure 7-16 AppleTalk ASP Packets

Diagram of OpenSess and OpenSessReply packet structures within the ATP header.

OpenSess Packet

packet-beta
0-7: "SPFunction = OpenSess"
8-15: "WSS"
16-31: "ASP version number"

Field	Bit offset	Width (bits)	Description
SPFunction	0	8	Packet type identifier (set to OpenSess/4)
WSS	8	8	Workstation Session Socket
ASP version number	16	16	Version of the ASP protocol being used

OpenSessReply Packet

packet-beta
0-7: "SSS"
8-15: "Session ID"
16-31: "Error code"

Field	Bit offset	Width (bits)	Description
SSS	0	8	Server Session Socket
Session ID	8	8	Unique session identifier
Error code	16	16	ASP error code result

SPFunction Values

Value	SPFunction
1	Close Session
2	Command
3	Get Status
4	Open Session
5	Tickle
6	Write
7	WriteContinue
8	Attention

7.5.4 AppleTalk Data Stream Protocol

The last AppleTalk higher layer protocol we will examine is the AppleTalk Data Stream Protocol (ADSP). Where PAP and ASP have distinct clients using their services (PostScript and AFP, respectively), ADSP is designed to be a general purpose Session Layer protocol. It establishes and maintains full-duplex data streams of information between two AppleTalk sockets. It also includes flow control via sequence numbers to assure that a fast sender does not overwhelm a slow receiver with too much data.

The ADSP header (see Figure 7-17) is DDP Type=7 and begins with a two-octet SourceConnID which, with the socket number at each end, identifies this connection. The sequence counters follow next, including the PktFirstByteSeq (four octets), which identifies the sequence number of the first data byte in the sequence; the PktNextRcvSeq (four octets), which is a piggyback acknowledgement of the last packet received at this node; and finally RecvWdw (two octets), which is the receive window used for flow control.

The last field in the ADSP header is the Descriptor, which identifies the type of ADSP packet being transmitted. If the control bit is set, this is a Control packet (see table on Figure 7-17). If the control bit is not set, the packet is a data packet. The Ack Request forces the receiving end to send an immediate acknowledgement; the EOM bit indicates the logical end of message in a data stream; and the Attention bit indicates an attention packet.

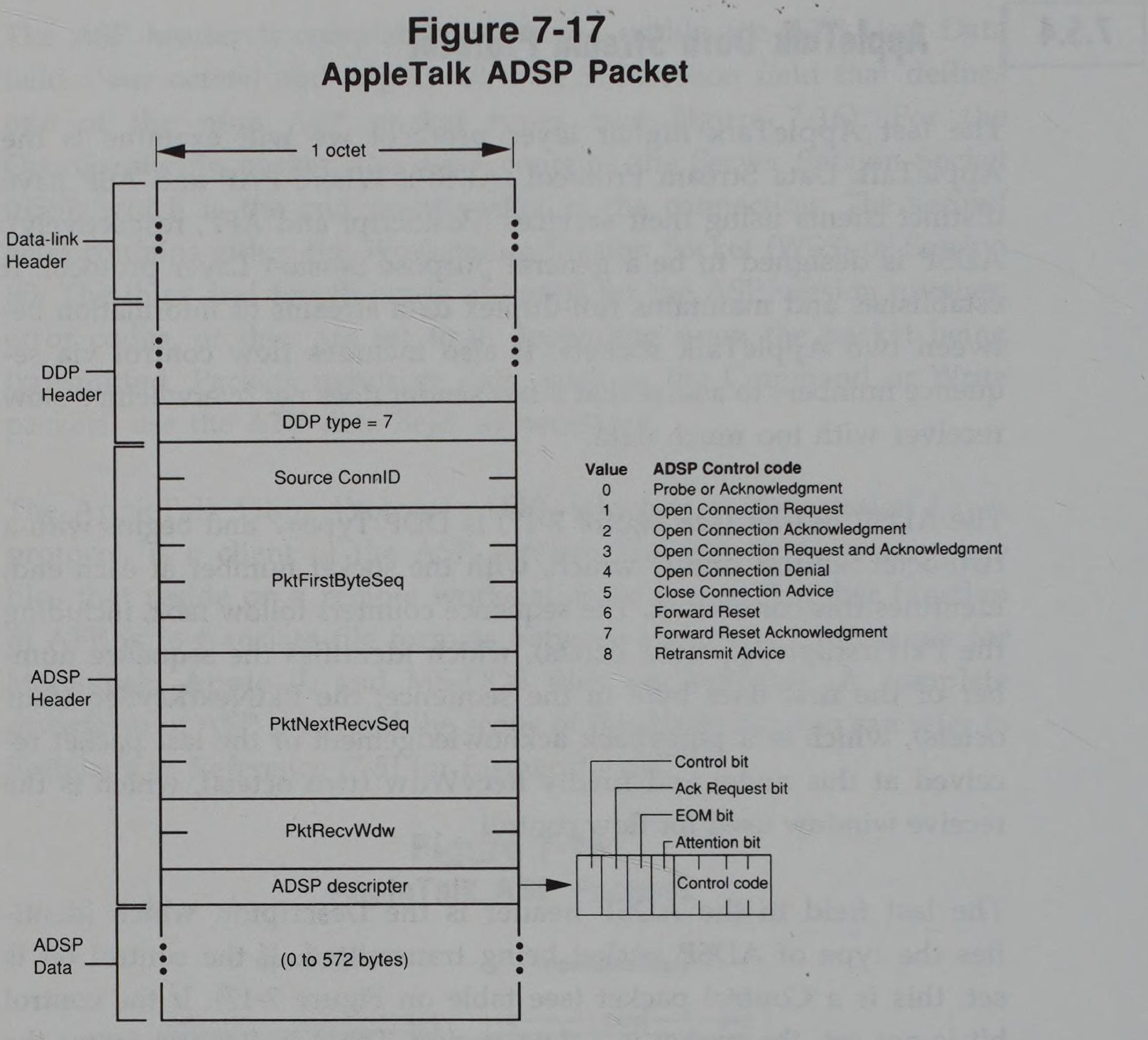

Figure 7-17 AppleTalk ADSP Packet

Diagram showing the AppleTalk ADSP packet format including headers, ADSP header fields, and data. Includes a breakdown of the ADSP descripter byte and a table of control codes.

packet-beta
0-7: "DDP type = 7"
8-23: "Source ConnID"
24-55: "PktFirstByteSeq"
56-87: "PktNextRecvSeq"
88-103: "PktRecvWdw"
104: "Control bit"
105: "Ack Request bit"
106: "EOM bit"
107: "Attention bit"
108-111: "Control code"
112-143: "ADSP Data (0 to 572 bytes)"

Field	Bit offset	Width (bits)	Description
DDP type	0	8	Protocol type, set to 7 for AppleTalk Data Stream Protocol (ADSP).
Source ConnID	8	16	Source Connection Identifier.
PktFirstByteSeq	24	32	Sequence number of the first data byte in the packet.
PktNextRecvSeq	56	32	Sequence number of the next expected data byte from the other end.
PktRecvWdw	88	16	Available receive window size in bytes.
Control bit	104	1	1 indicates a control packet, 0 indicates a data packet.
Ack Request bit	105	1	If set, requests the receiver to send an acknowledgment packet.
EOM bit	106	1	End-of-message flag.
Attention bit	107	1	Indicates an attention message.
Control code	108	4	Specifies the control operation.
ADSP Data	112	0-4576	Variable length data field (0 to 572 bytes).

ADSP Control code values:

Value	ADSP Control code
0	Probe or Acknowledgment
1	Open Connection Request
2	Open Connection Acknowledgment
3	Open Connection Request and Acknowledgment
4	Open Connection Denial
5	Close Connection Advice
6	Forward Reset
7	Forward Reset Acknowledgment
8	Retransmit Advice

7.6 Protocol Analysis with AppleTalk

To complete our study of the AppleTalk protocols, let’s examine the details of two common operations: printing to a LaserWriter located on another AppleTalk network, and accessing a file on the same network.

In the first example, to access the printer, the client (maciicx, which is a Phase 2 node) must communicate with the router (macrouter, which is running both Phase 1 and 2 in the AppleTalk Upgrade Utility) that provides the connection to the other network. The printing process begins in frame 2 of Figure 7-18, and includes two ZIP packets (frames 31 and 32) that provide zone information to the client. The internet router tables are updated with the RTMP packets broadcast from the Phase 1 servers, such as kahuna (frame 1) and VAX1 (frame 14). The NBP request to find the name LaserWriter in frame 46 initiates the logical connection. The PAP connection is started in frame 59, and confirmed in frame 68. Actual transfer of the data begins in frame 72.

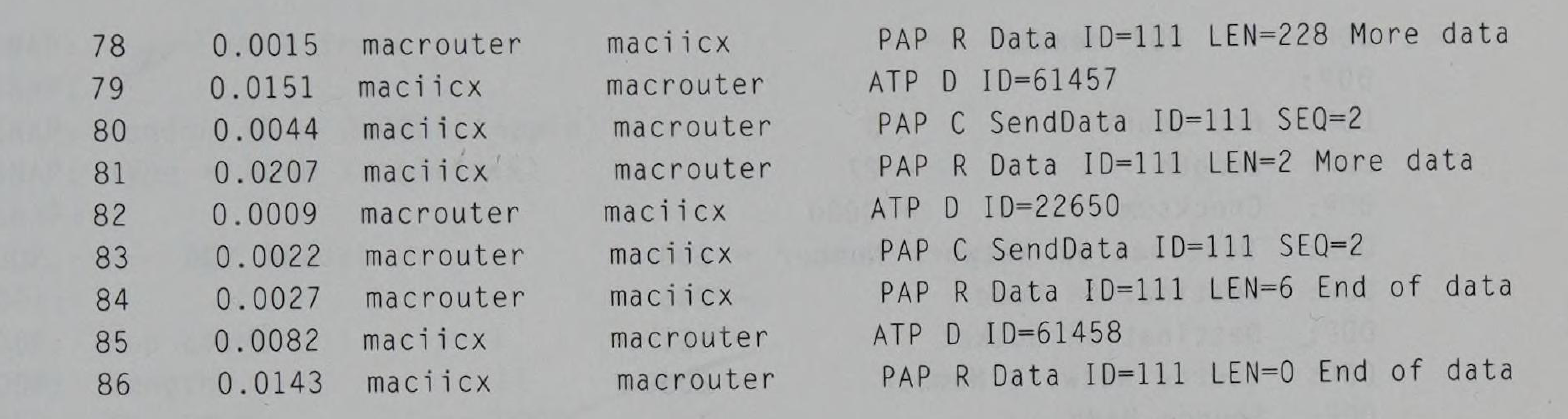

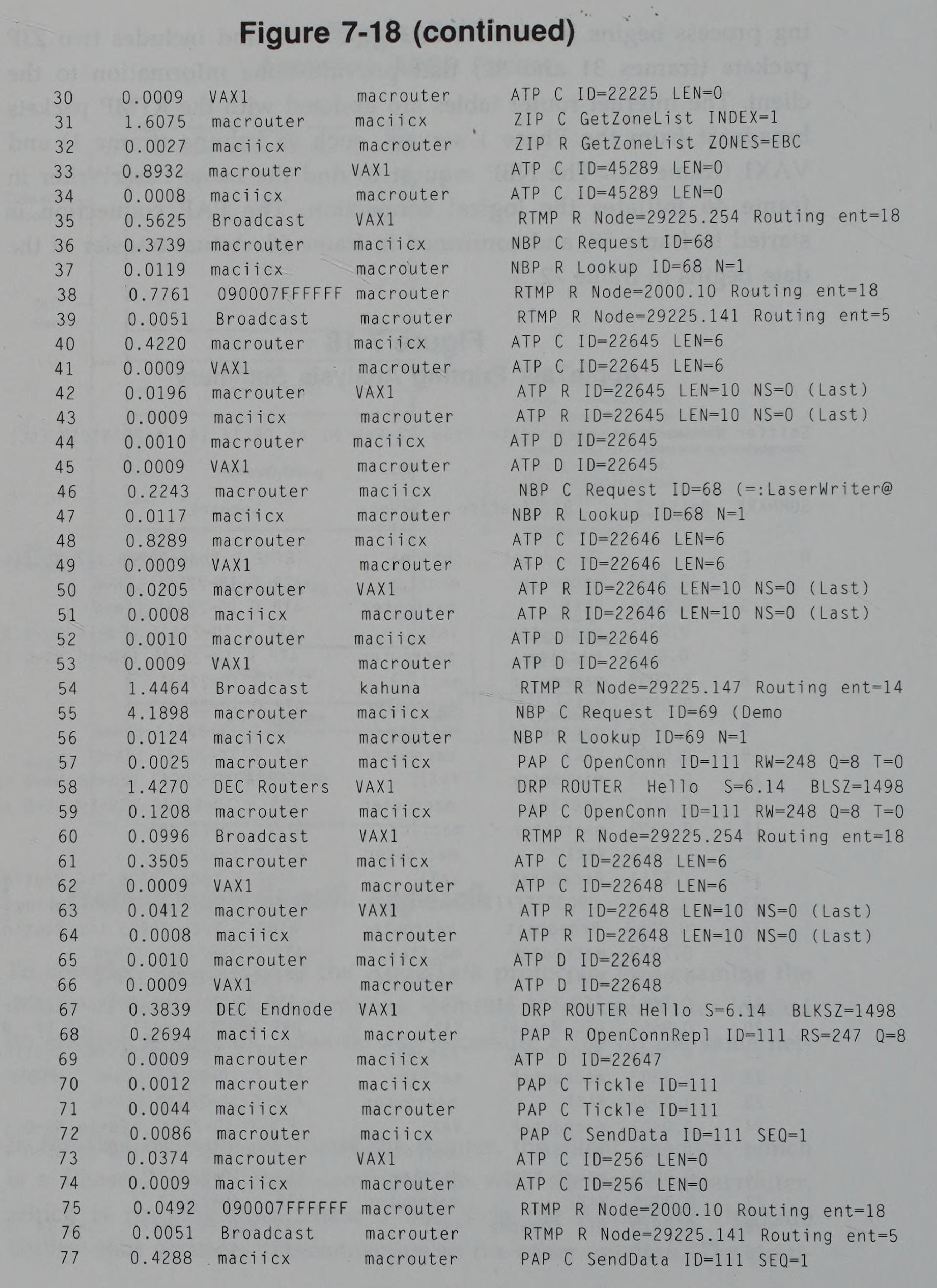

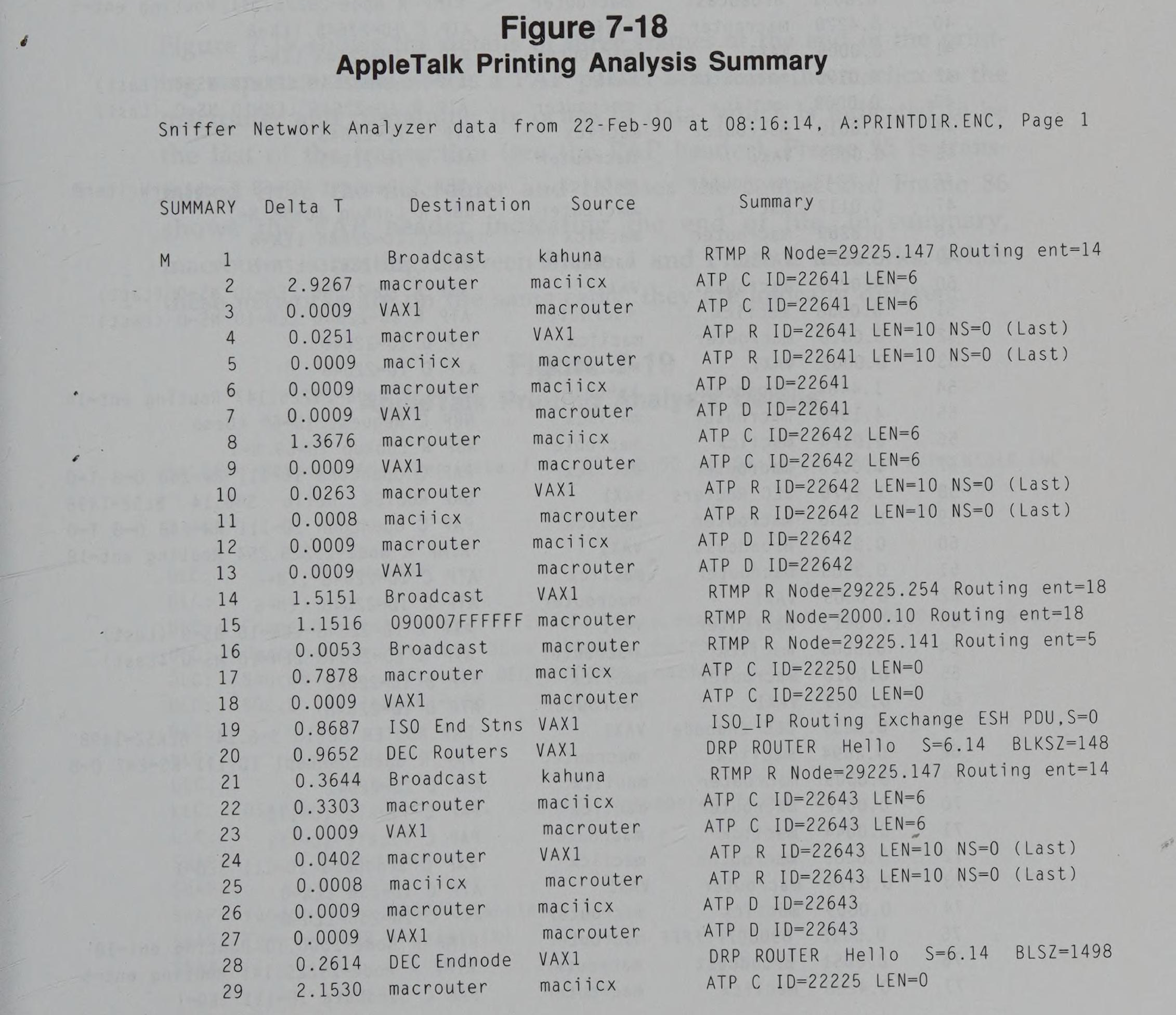

Figure 7-18 AppleTalk Printing Analysis Summary

AppleTalk Printing Analysis Summary Packet capture trace listing for Figure 7-18 (continued) Traffic log for Figure 7-18

Sniffer Network Analyzer data from 22-Feb-90 at 08:16:14, A:PRINTDIR.ENC, Page 1

SUMMARY  Delta T      Destination    Source       Summary

M   1                 Broadcast      kahuna       RTMP R Node=29225.147 Routing ent=14
  2.9267       macrouter      maciicx      ATP C ID=22641 LEN=6
  0.0009       VAX1           macrouter    ATP C ID=22641 LEN=6
  0.0251       macrouter      VAX1         ATP R ID=22641 LEN=10 NS=0 (Last)
  0.0009       maciicx        macrouter    ATP R ID=22641 LEN=10 NS=0 (Last)
  0.0009       macrouter      maciicx      ATP D ID=22641
  0.0009       VAX1           macrouter    ATP D ID=22641
  1.3676       macrouter      maciicx      ATP C ID=22642 LEN=6
  0.0009       VAX1           macrouter    ATP C ID=22642 LEN=6
  0.0263       macrouter      VAX1         ATP R ID=22642 LEN=10 NS=0 (Last)
  0.0008       maciicx        macrouter    ATP R ID=22642 LEN=10 NS=0 (Last)
  0.0009       macrouter      maciicx      ATP D ID=22642
  0.0009       VAX1           macrouter    ATP D ID=22642
  1.5151       Broadcast      VAX1         RTMP R Node=29225.254 Routing ent=18
  1.1516       090007FFFFFF   macrouter    RTMP R Node=2000.10 Routing ent=18
  0.0053       Broadcast      macrouter    RTMP R Node=29225.141 Routing ent=5
  0.7878       macrouter      maciicx      ATP C ID=22250 LEN=0
  0.0009       VAX1           macrouter    ATP C ID=22250 LEN=0
  0.8687       ISO End Stns   VAX1         ISO_IP Routing Exchange ESH PDU,S=0
  0.9652       DEC Routers    VAX1         DRP ROUTER Hello S=6.14 BLKSZ=148
  0.3644       Broadcast      kahuna       RTMP R Node=29225.147 Routing ent=14
  0.3303       macrouter      maciicx      ATP C ID=22643 LEN=6
  0.0009       VAX1           macrouter    ATP C ID=22643 LEN=6
  0.0402       macrouter      VAX1         ATP R ID=22643 LEN=10 NS=0 (Last)
  0.0008       maciicx        macrouter    ATP R ID=22643 LEN=10 NS=0 (Last)
  0.0009       macrouter      maciicx      ATP D ID=22643
  0.0009       VAX1           macrouter    ATP D ID=22643
  0.2614       DEC Endnode    VAX1         DRP ROUTER Hello S=6.14 BLSZ=1498
  2.1530       macrouter      maciicx      ATP C ID=22225 LEN=0
  0.0009       VAX1           macrouter    ATP C ID=22225 LEN=0
  1.6075       macrouter      maciicx      ZIP C GetZoneList INDEX=1
  0.0027       maciicx        macrouter    ZIP R GetZoneList ZONES=EBC
  0.8932       macrouter      VAX1         ATP C ID=45289 LEN=0
  0.0008       maciicx        macrouter    ATP C ID=45289 LEN=0
  0.5625       Broadcast      VAX1         RTMP R Node=29225.254 Routing ent=18
  0.3739       macrouter      maciicx      NBP C Request ID=68
  0.0119       maciicx        macrouter    NBP R Lookup ID=68 N=1
  0.7761       090007FFFFFF   macrouter    RTMP R Node=2000.10 Routing ent=18
  0.0051       Broadcast      macrouter    RTMP R Node=29225.141 Routing ent=5
  0.4220       macrouter      maciicx      ATP C ID=22645 LEN=6
  0.0009       VAX1           macrouter    ATP C ID=22645 LEN=6
  0.0196       macrouter      VAX1         ATP R ID=22645 LEN=10 NS=0 (Last)
  0.0009       maciicx        macrouter    ATP R ID=22645 LEN=10 NS=0 (Last)
  0.0100       macrouter      maciicx      ATP D ID=22645
  0.0009       VAX1           macrouter    ATP D ID=22645
  0.2243       macrouter      maciicx      NBP C Request ID=68 (=:LaserWriter@
  0.0117       maciicx        macrouter    NBP R Lookup ID=68 N=1
  0.8289       macrouter      maciicx      ATP C ID=22646 LEN=6
  0.0009       VAX1           macrouter    ATP C ID=22646 LEN=6
  0.0205       macrouter      VAX1         ATP R ID=22646 LEN=10 NS=0 (Last)
  0.0008       maciicx        macrouter    ATP R ID=22646 LEN=10 NS=0 (Last)
  0.0010       macrouter      maciicx      ATP D ID=22646
  0.0009       VAX1           macrouter    ATP D ID=22646
  1.4464       Broadcast      kahuna       RTMP R Node=29225.147 Routing ent=14
  4.1898       macrouter      maciicx      NBP C Request ID=69 (Demo
  0.0124       maciicx        macrouter    NBP R Lookup ID=69 N=1
  0.0025       macrouter      maciicx      PAP C OpenConn ID=111 RW=248 Q=8 T=0
  1.4270       DEC Routers    VAX1         DRP ROUTER Hello S=6.14 BLSZ=1498
  0.1208       macrouter      maciicx      PAP C OpenConn ID=111 RW=248 Q=8 T=0
  0.0996       Broadcast      VAX1         RTMP R Node=29225.254 Routing ent=18
  0.3505       macrouter      maciicx      ATP C ID=22648 LEN=6
  0.0009       VAX1           macrouter    ATP C ID=22648 LEN=6
  0.0412       macrouter      VAX1         ATP R ID=22648 LEN=10 NS=0 (Last)
  0.0008       maciicx        macrouter    ATP R ID=22648 LEN=10 NS=0 (Last)
  0.0010       macrouter      maciicx      ATP D ID=22648
  0.0009       VAX1           macrouter    ATP D ID=22648
  0.3839       DEC Endnode    VAX1         DRP ROUTER Hello S=6.14 BLSZ=1498
  0.2694       maciicx        macrouter    PAP R OpenConnRepl ID=111 RS=247 Q=8
  0.0009       macrouter      maciicx      ATP D ID=22647
  0.0012       macrouter      maciicx      PAP C Tickle ID=111
  0.0044       maciicx        macrouter    PAP C Tickle ID=111
  0.0086       macrouter      maciicx      PAP C SendData ID=111 SEQ=1
  0.0374       macrouter      VAX1         ATP C ID=256 LEN=0
  0.0009       maciicx        macrouter    ATP C ID=256 LEN=0
  0.0492       090007FFFFFF   macrouter    RTMP R Node=2000.10 Routing ent=18
  0.0051       Broadcast      macrouter    RTMP R Node=29225.141 Routing ent=5
  0.4288       maciicx        macrouter    PAP C SendData ID=111 SEQ=1
  0.0015       macrouter      maciicx      PAP R Data ID=111 LEN=228 More data
  0.0151       maciicx        macrouter    ATP D ID=61457
  0.0044       maciicx        macrouter    PAP C SendData ID=111 SEQ=2
  0.0207       maciicx        macrouter    PAP R Data ID=111 LEN=2 More data
  0.0009       macrouter      maciicx      ATP D ID=22650
  0.0022       macrouter      maciicx      PAP C SendData ID=111 SEQ=2
  0.0027       macrouter      maciicx      PAP R Data ID=111 LEN=6 End of data
  0.0082       maciicx        macrouter    ATP D ID=61458
  0.0143       maciicx        macrouter    PAP R Data ID=111 LEN=0 End of data

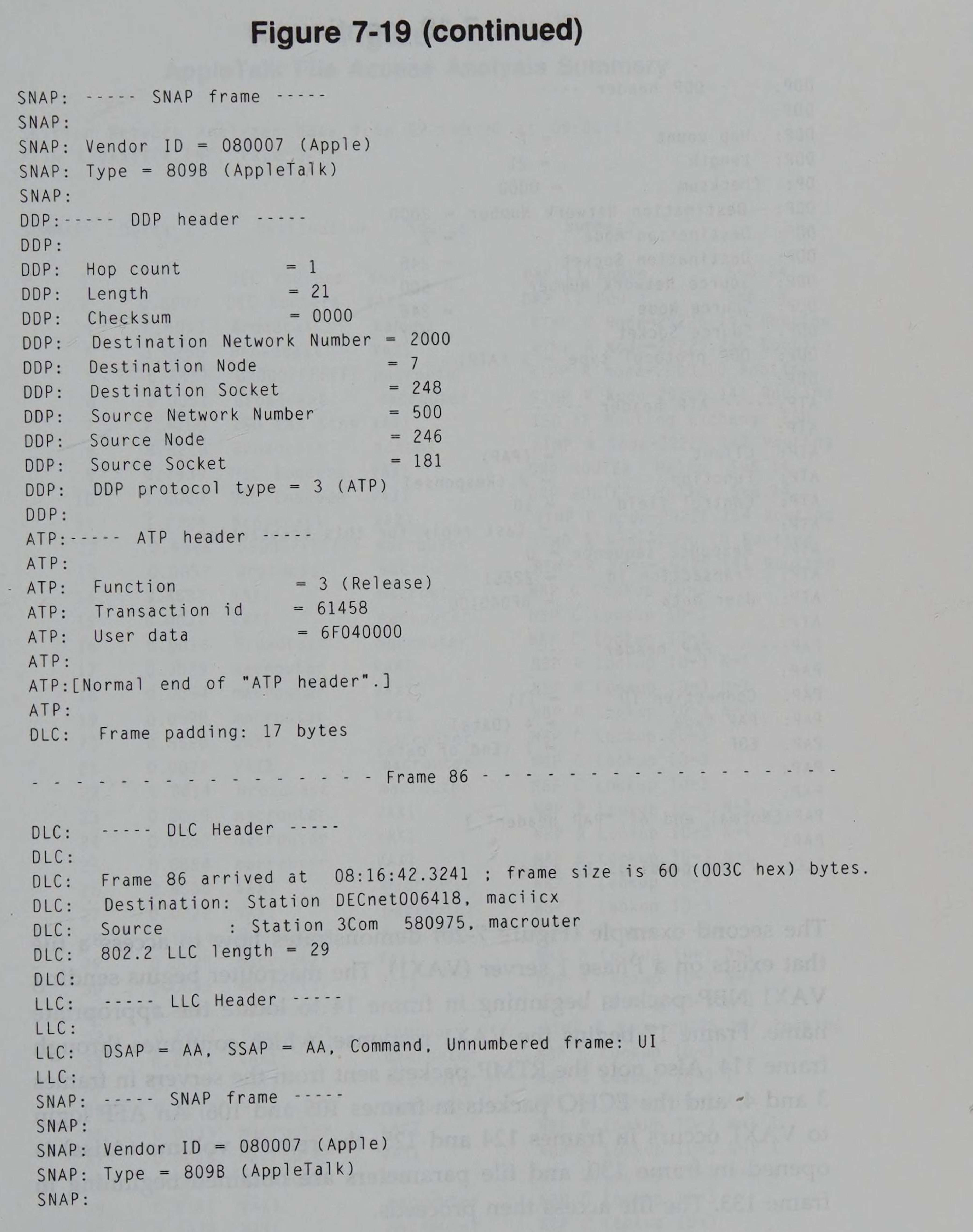

Figure 7-19 shows the details of three frames at the end of the printing sequence. Frame 84 is a PAP packet sent from the maciicx to the macrouter and containing six octets of data, which is indicated to be the last of the transaction (see the PAP header). Frame 85 is transmitted from the macrouter and releases the connection. Frame 86 shows the PAP header indicating the end of file. In summary, macrouter is routing between Phase 1 and Phase 2 networks. While these networks are on the same cable, they are logically different.

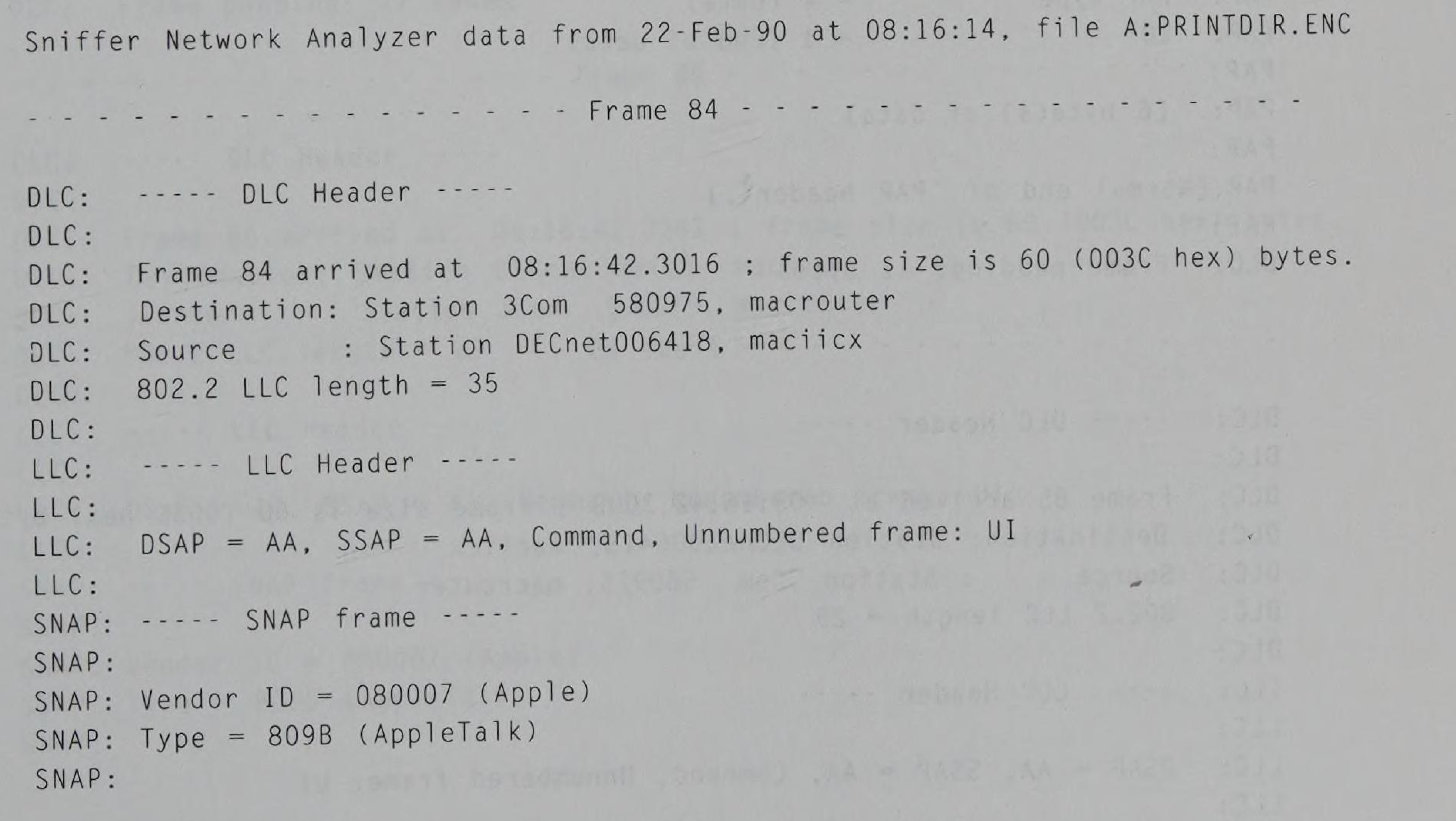

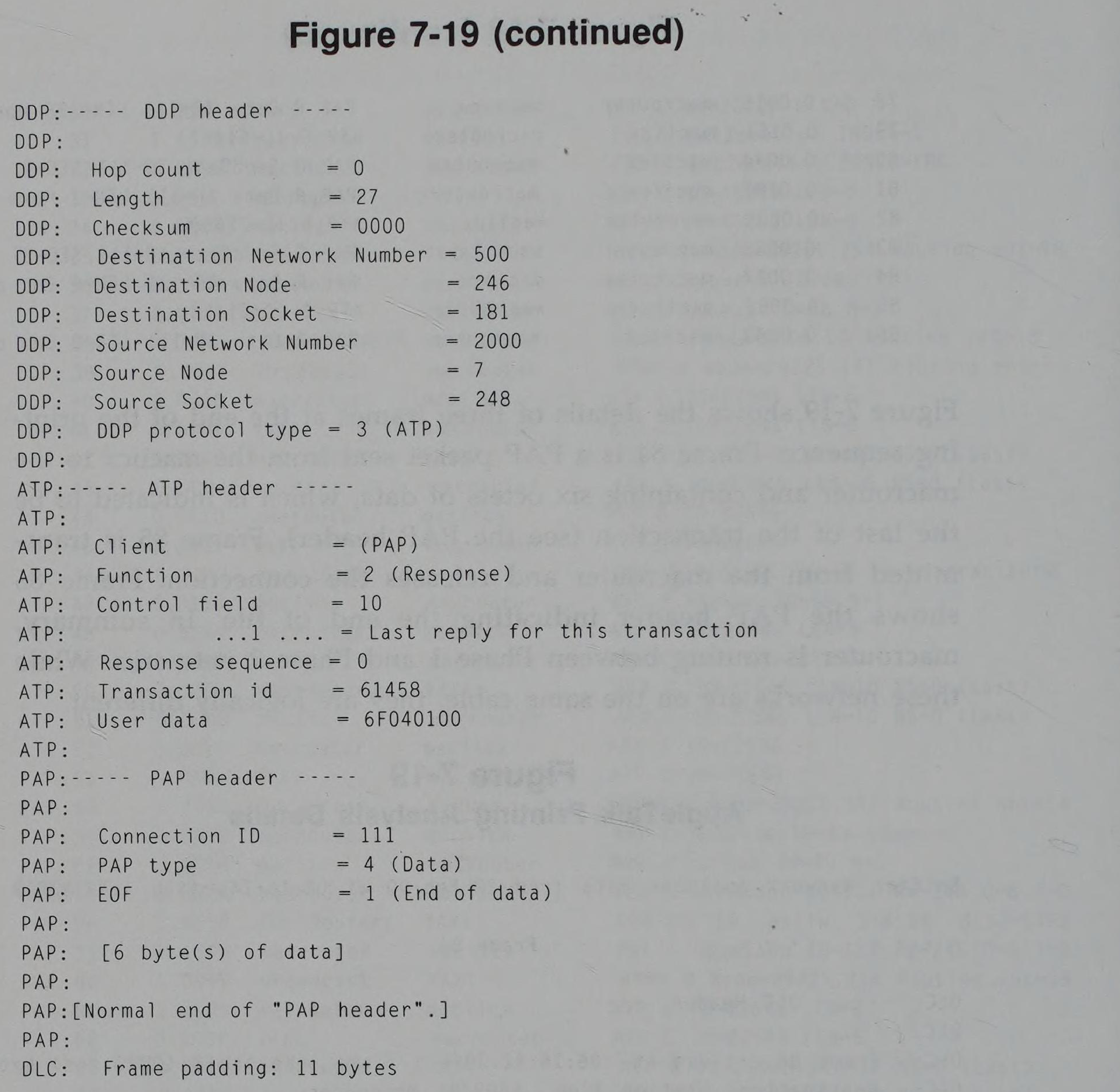

Figure 7-19 AppleTalk Printing Analysis Details

Sniffer analyzer details for Figure 7-19 Analysis of DDP, ATP, and PAP protocol headers DLC and LLC header analysis for Frame 85 Protocol decode trace of AppleTalk frames Protocol decode showing DDP, ATP, and PAP headers

Sniffer Network Analyzer data from 22-Feb-90 at 08:16:14, file A:PRINTDIR.ENC

- - - - - - - - - - - - - - Frame 84 - - - - - - - - - - - - - -

DLC:   ----- DLC Header -----
DLC:
DLC:   Frame 84 arrived at  08:16:42.3016 ; frame size is 60 (003C hex) bytes.
DLC:   Destination: Station 3Com   580975, macrouter
DLC:   Source       : Station DECnet006418, maciicx
DLC:   802.2 LLC length = 35
DLC:
LLC:   ----- LLC Header -----
LLC:
LLC:   DSAP = AA, SSAP = AA, Command, Unnumbered frame: UI
LLC:
SNAP:  ----- SNAP frame -----
SNAP:
SNAP:  Vendor ID = 080007 (Apple)
SNAP:  Type = 809B (AppleTalk)
SNAP:
DDP:----- DDP header -----
DDP:
DDP: Hop count           = 0
DDP: Length              = 27
DDP: Checksum            = 0000
DDP: Destination Network Number = 500
DDP: Destination Node           = 246
DDP: Destination Socket         = 181
DDP: Source Network Number      = 2000
DDP: Source Node                = 7
DDP: Source Socket              = 248
DDP: DDP protocol type = 3 (ATP)
DDP:
ATP:----- ATP header -----
ATP:
ATP: Client              = (PAP)
ATP: Function            = 2 (Response)
ATP: Control field       = 10
ATP:       ...1 ....     = Last reply for this transaction
ATP: Response sequence = 0
ATP: Transaction id    = 61458
ATP: User data         = 6F040100
ATP:
PAP:----- PAP header -----
PAP:
PAP: Connection ID       = 111
PAP: PAP type            = 4 (Data)
PAP: EOF                 = 1 (End of data)
PAP:
PAP: [6 byte(s) of data]
PAP:
PAP: [Normal end of "PAP header".]
PAP:
DLC: Frame padding: 11 bytes

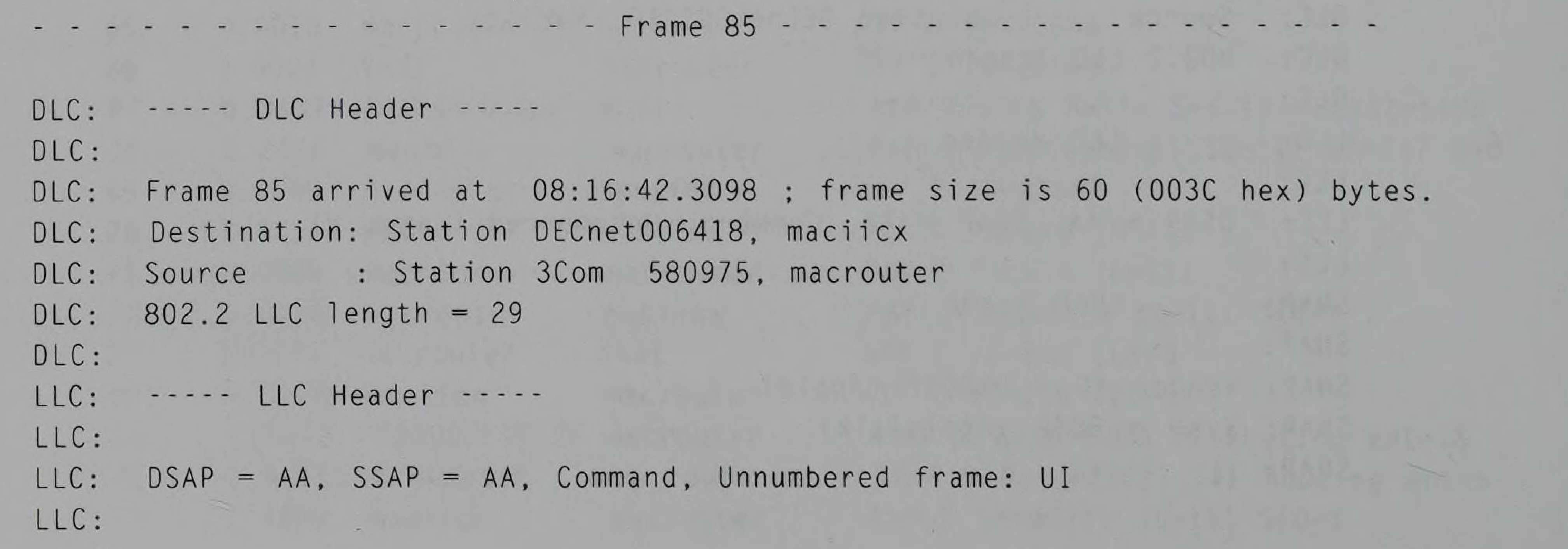

- - - - - - - - - - - - - - - - - Frame 85 - - - - - - - - - - - - - - - - -

DLC: ----- DLC Header -----
DLC:
DLC: Frame 85 arrived at 08:16:42.3098 ; frame size is 60 (003C hex) bytes.
DLC: Destination: Station DECnet006418, maciicx
DLC: Source      : Station 3Com 580975, macrouter
DLC: 802.2 LLC length = 29
DLC:
LLC: ----- LLC Header -----
LLC:
LLC: DSAP = AA, SSAP = AA, Command, Unnumbered frame: UI
LLC:
SNAP: ----- SNAP frame -----
SNAP:
SNAP: Vendor ID = 080007 (Apple)
SNAP: Type = 809B (AppleTalk)
SNAP:
DDP: ----- DDP header -----
DDP:
DDP:  Hop count           = 1
DDP:  Length              = 21
DDP:  Checksum            = 0000
DDP:  Destination Network Number = 2000
DDP:  Destination Node    = 7
DDP:  Destination Socket  = 248
DDP:  Source Network Number = 500
DDP:  Source Node         = 246
DDP:  Source Socket       = 181
DDP:  DDP protocol type = 3 (ATP)
DDP:
ATP: ----- ATP header -----
ATP:
ATP:  Function           = 3 (Release)
ATP:  Transaction id     = 61458
ATP:  User data          = 6F040000
ATP:
ATP: [Normal end of "ATP header".]
ATP:
DLC:  Frame padding: 17 bytes

--------------------------- Frame 86 ---------------------------

DLC: ----- DLC Header -----
DLC:
DLC:  Frame 86 arrived at  08:16:42.3241 ; frame size is 60 (003C hex) bytes.
DLC:  Destination: Station DECnet006418, maciicx
DLC:  Source      : Station 3Com  580975, macrouter
DLC:  802.2 LLC length = 29
DLC:
LLC: ----- LLC Header -----
LLC:
LLC:  DSAP = AA, SSAP = AA, Command, Unnumbered frame: UI
LLC:
SNAP: ----- SNAP frame -----
SNAP:
SNAP: Vendor ID = 080007 (Apple)
SNAP: Type = 809B (AppleTalk)
SNAP:
DDP:----- DDP header -----
DDP:
DDP:  Hop count              = 1
DDP:  Length                 = 21
DP:   Checksum               = 0000
DDP:  Destination Network Number = 2000
DDP:  Destination Node       = 7
DDP:  Destination Socket     = 246
DDP:  Source Network Number  = 500
DDP:  Source Node            = 246
DDP:  Source Socket          = 247
DDP:  DDP protocol type = 3 (ATP)
DDP:
ATP:----- ATP header -----
ATP:
ATP:  Client                 = (PAP)
ATP:  Function               = 2 (Response)
ATP:  Control field          = 10
ATP:           ...1 ....     = Last reply for this transaction
ATP:  Response sequence = 0
ATP:  Transaction id    = 22651
ATP:  User data         = 6F040100
ATP:
PAP:----- PAP header -----
PAP:
PAP:  Connection ID          = 111
PAP:  PAP type               = 4 (Data)
PAP:  EOF                    = 1 (End of data)
PAP:
PAP:
PAP:[Normal end of "PAP header".]
PAP:
DLC:  Frame padding: 17 bytes

The second example (Figure 7-20) demonstrates how to access a file that exists on a Phase 1 server (VAX1). The macrouter begins sending VAX1 NBP packets beginning in frame 14 to locate the appropriate name. Frame 17 begins the VAX1 response, which continues through frame 114. Also note the RTMP packets sent from the servers in frames 3 and 4, and the ECHO packets in frames 105 and 106. An AFP login to VAX1 occurs in frames 124 and 125, the remote volume (Alisa) is opened in frame 130, and file parameters are obtained beginning in frame 133. The file access then proceeds.

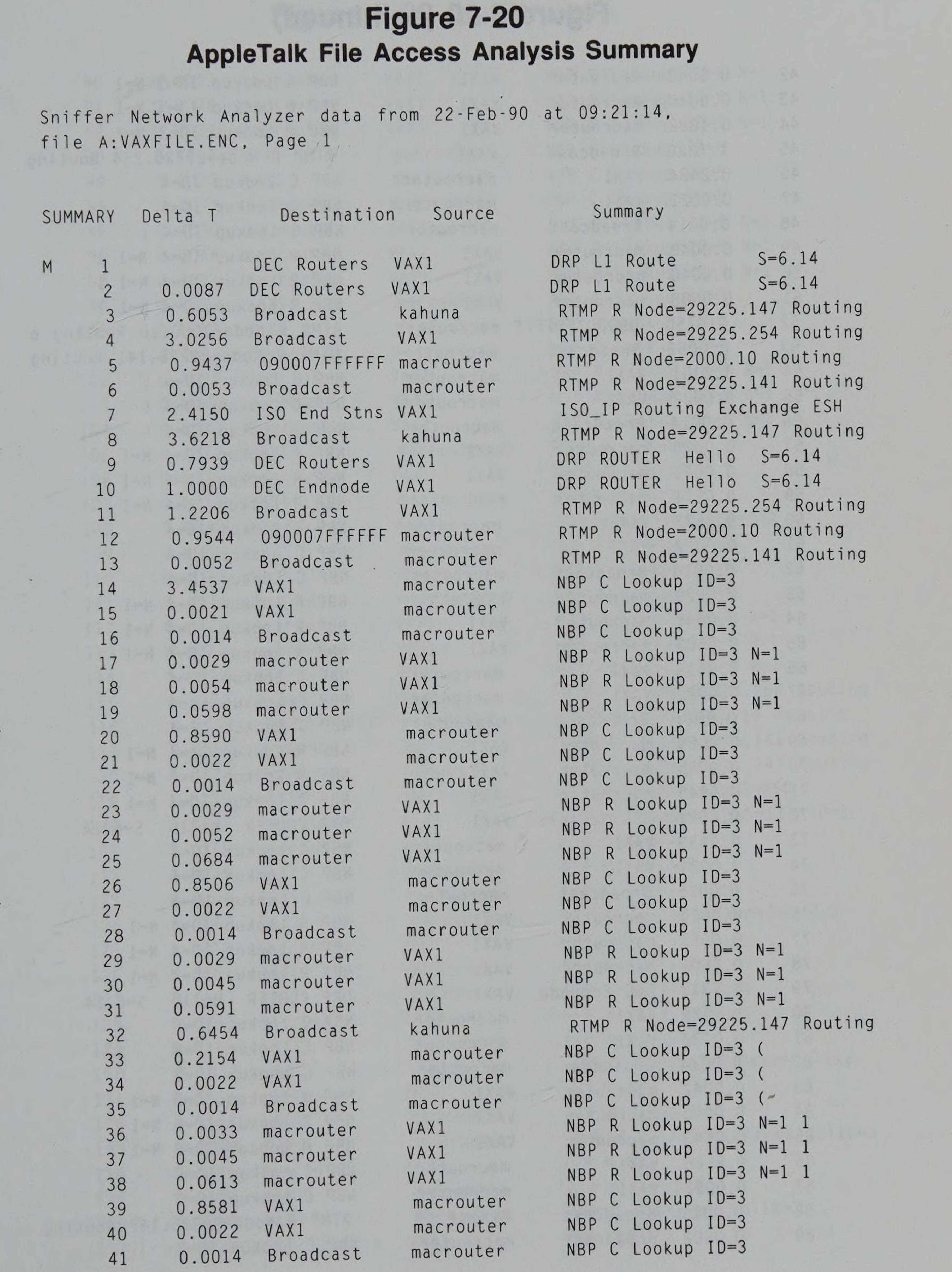

Figure 7-20 AppleTalk File Access Analysis Summary

Sniffer Network Analyzer data from 22-Feb-90 at 09:21:14. file A:VAXFILE.ENC, Page 1

AppleTalk File Access Analysis Summary trace listing AppleTalk network trace log Packet trace table continued from previous page. Packet trace summary continuation

SUMMARY	Delta T	Destination	Source	Summary
M 1		DEC Routers	VAX1	DRP L1 Route S=6.14
2	0.0087	DEC Routers	VAX1	DRP L1 Route S=6.14
3	0.6053	Broadcast	kahuna	RTMP R Node=29225.147 Routing
4	3.0256	Broadcast	VAX1	RTMP R Node=29225.254 Routing
5	0.9437	090007FFFFFF	macrouter	RTMP R Node=2000.10 Routing
6	0.0053	Broadcast	macrouter	RTMP R Node=29225.141 Routing
7	2.4150	ISO End Stns	VAX1	ISO_IP Routing Exchange ESH
8	3.6218	Broadcast	kahuna	RTMP R Node=29225.147 Routing
9	0.7939	DEC Routers	VAX1	DRP ROUTER Hello S=6.14
10	1.0000	DEC Endnode	VAX1	DRP ROUTER Hello S=6.14
11	1.2206	Broadcast	VAX1	RTMP R Node=29225.254 Routing
12	0.9544	090007FFFFFF	macrouter	RTMP R Node=2000.10 Routing
13	0.0052	Broadcast	macrouter	RTMP R Node=29225.141 Routing
14	3.4537	VAX1	macrouter	NBP C Lookup ID=3
15	0.0021	VAX1	macrouter	NBP C Lookup ID=3
16	0.0014	Broadcast	macrouter	NBP C Lookup ID=3
17	0.0029	macrouter	VAX1	NBP R Lookup ID=3 N=1
18	0.0054	macrouter	VAX1	NBP R Lookup ID=3 N=1
19	0.0598	macrouter	VAX1	NBP R Lookup ID=3 N=1
20	0.8590	VAX1	macrouter	NBP C Lookup ID=3
21	0.0022	VAX1	macrouter	NBP C Lookup ID=3
22	0.0014	Broadcast	macrouter	NBP C Lookup ID=3
23	0.0029	macrouter	VAX1	NBP R Lookup ID=3 N=1
24	0.0052	macrouter	VAX1	NBP R Lookup ID=3 N=1
25	0.0684	macrouter	VAX1	NBP R Lookup ID=3 N=1
26	0.8506	VAX1	macrouter	NBP C Lookup ID=3
27	0.0022	VAX1	macrouter	NBP C Lookup ID=3
28	0.0014	Broadcast	macrouter	NBP C Lookup ID=3
29	0.0029	macrouter	VAX1	NBP R Lookup ID=3 N=1
30	0.0045	macrouter	VAX1	NBP R Lookup ID=3 N=1
31	0.0591	macrouter	VAX1	NBP R Lookup ID=3 N=1
32	0.6454	Broadcast	kahuna	RTMP R Node=29225.147 Routing
33	0.2154	VAX1	macrouter	NBP C Lookup ID=3 (
34	0.0022	VAX1	macrouter	NBP C Lookup ID=3 (
35	0.0014	Broadcast	macrouter	NBP C Lookup ID=3 (-
36	0.0033	macrouter	VAX1	NBP R Lookup ID=3 N=1 1
37	0.0045	macrouter	VAX1	NBP R Lookup ID=3 N=1 1
38	0.0613	macrouter	VAX1	NBP R Lookup ID=3 N=1 1
39	0.8581	VAX1	macrouter	NBP C Lookup ID=3
40	0.0022	VAX1	macrouter	NBP C Lookup ID=3
41	0.0014	Broadcast	macrouter	NBP C Lookup ID=3

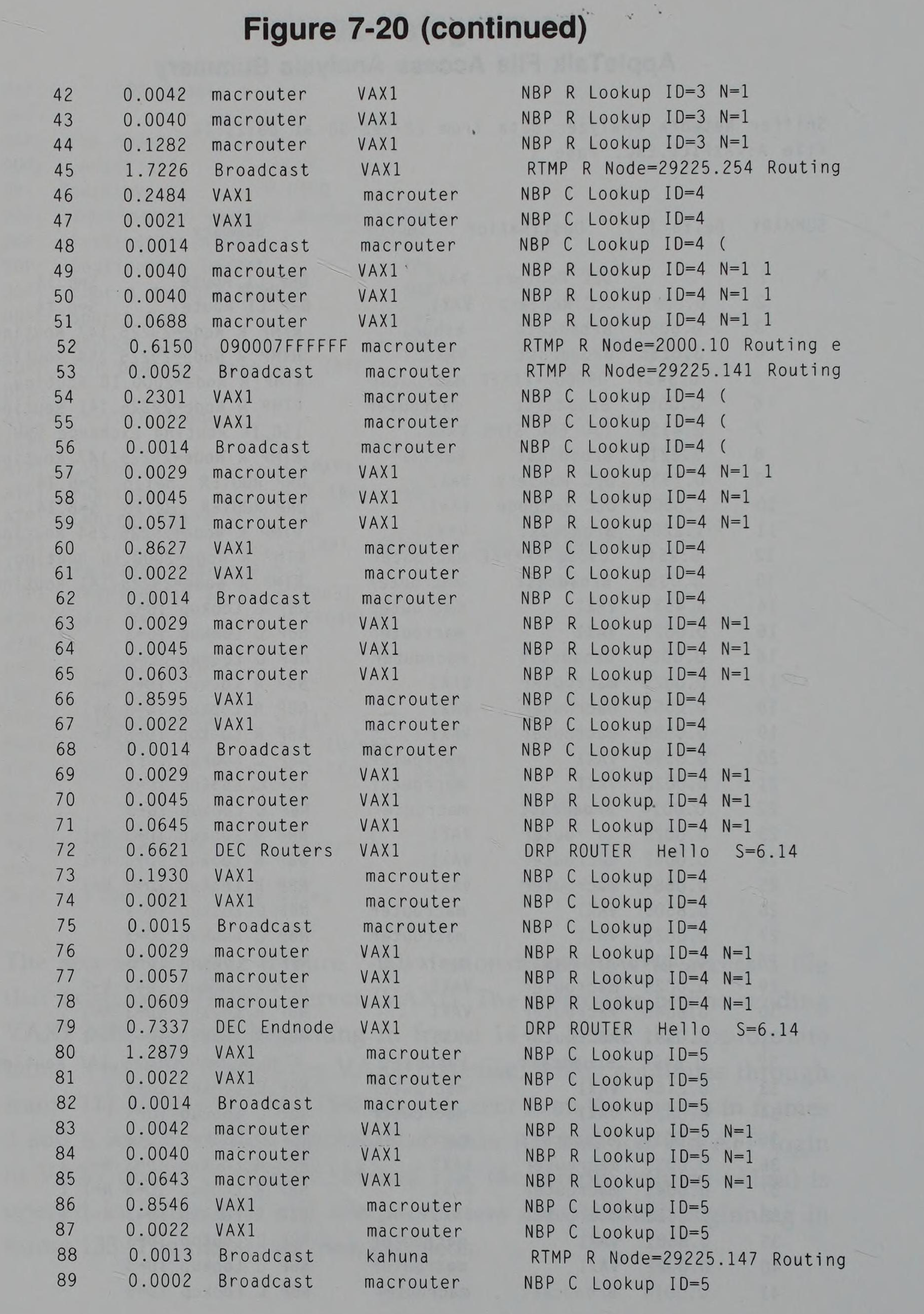

42	0.0042	macrouter	VAX1	NBP R Lookup ID=3 N=1
43	0.0040	macrouter	VAX1	NBP R Lookup ID=3 N=1
44	0.1282	macrouter	VAX1	NBP R Lookup ID=3 N=1
45	1.7226	Broadcast	VAX1	RTMP R Node=29225.254 Routing
46	0.2484	VAX1	macrouter	NBP C Lookup ID=4
47	0.0021	VAX1	macrouter	NBP C Lookup ID=4
48	0.0014	Broadcast	macrouter	NBP C Lookup ID=4 (
49	0.0040	macrouter	VAX1	NBP R Lookup ID=4 N=1 1
50	0.0040	macrouter	VAX1	NBP R Lookup ID=4 N=1 1
51	0.0688	macrouter	VAX1	NBP R Lookup ID=4 N=1 1
52	0.6150	090007FFFFF	macrouter	RTMP R Node=2000.10 Routing e
53	0.0052	Broadcast	macrouter	RTMP R Node=29225.141 Routing
54	0.2301	VAX1	macrouter	NBP C Lookup ID=4 (
55	0.0022	VAX1	macrouter	NBP C Lookup ID=4 (
56	0.0014	Broadcast	macrouter	NBP C Lookup ID=4 (
57	0.0029	macrouter	VAX1	NBP R Lookup ID=4 N=1 1
58	0.0045	macrouter	VAX1	NBP R Lookup ID=4 N=1
59	0.0571	macrouter	VAX1	NBP R Lookup ID=4 N=1
60	0.8627	VAX1	macrouter	NBP C Lookup ID=4
61	0.0022	VAX1	macrouter	NBP C Lookup ID=4
62	0.0014	Broadcast	macrouter	NBP C Lookup ID=4
63	0.0029	macrouter	VAX1	NBP R Lookup ID=4 N=1
64	0.0045	macrouter	VAX1	NBP R Lookup ID=4 N=1
65	0.0603	macrouter	VAX1	NBP R Lookup ID=4 N=1
66	0.8595	VAX1	macrouter	NBP C Lookup ID=4
67	0.0022	VAX1	macrouter	NBP C Lookup ID=4
68	0.0014	Broadcast	macrouter	NBP C Lookup ID=4
69	0.0029	macrouter	VAX1	NBP R Lookup ID=4 N=1
70	0.0045	macrouter	VAX1	NBP R Lookup ID=4 N=1
71	0.0645	macrouter	VAX1	NBP R Lookup ID=4 N=1
72	0.6621	DEC Routers	VAX1	DRP ROUTER Hello S=6.14
73	0.1930	VAX1	macrouter	NBP C Lookup ID=4
74	0.0021	VAX1	macrouter	NBP C Lookup ID=4
75	0.0015	Broadcast	macrouter	NBP C Lookup ID=4
76	0.0029	macrouter	VAX1	NBP R Lookup ID=4 N=1
77	0.0057	macrouter	VAX1	NBP R Lookup ID=4 N=1
78	0.0609	macrouter	VAX1	NBP R Lookup ID=4 N=1
79	0.7337	DEC Endnode	VAX1	DRP ROUTER Hello S=6.14
80	1.2879	VAX1	macrouter	NBP C Lookup ID=5
81	0.0022	VAX1	macrouter	NBP C Lookup ID=5
82	0.0014	Broadcast	macrouter	NBP C Lookup ID=5
83	0.0042	macrouter	VAX1	NBP R Lookup ID=5 N=1
84	0.0040	macrouter	VAX1	NBP R Lookup ID=5 N=1
85	0.0643	macrouter	VAX1	NBP R Lookup ID=5 N=1
86	0.8546	VAX1	macrouter	NBP C Lookup ID=5
87	0.0022	VAX1	macrouter	NBP C Lookup ID=5
88	0.0013	Broadcast	kahuna	RTMP R Node=29225.147 Routing
89	0.0002	Broadcast	macrouter	NBP C Lookup ID=5

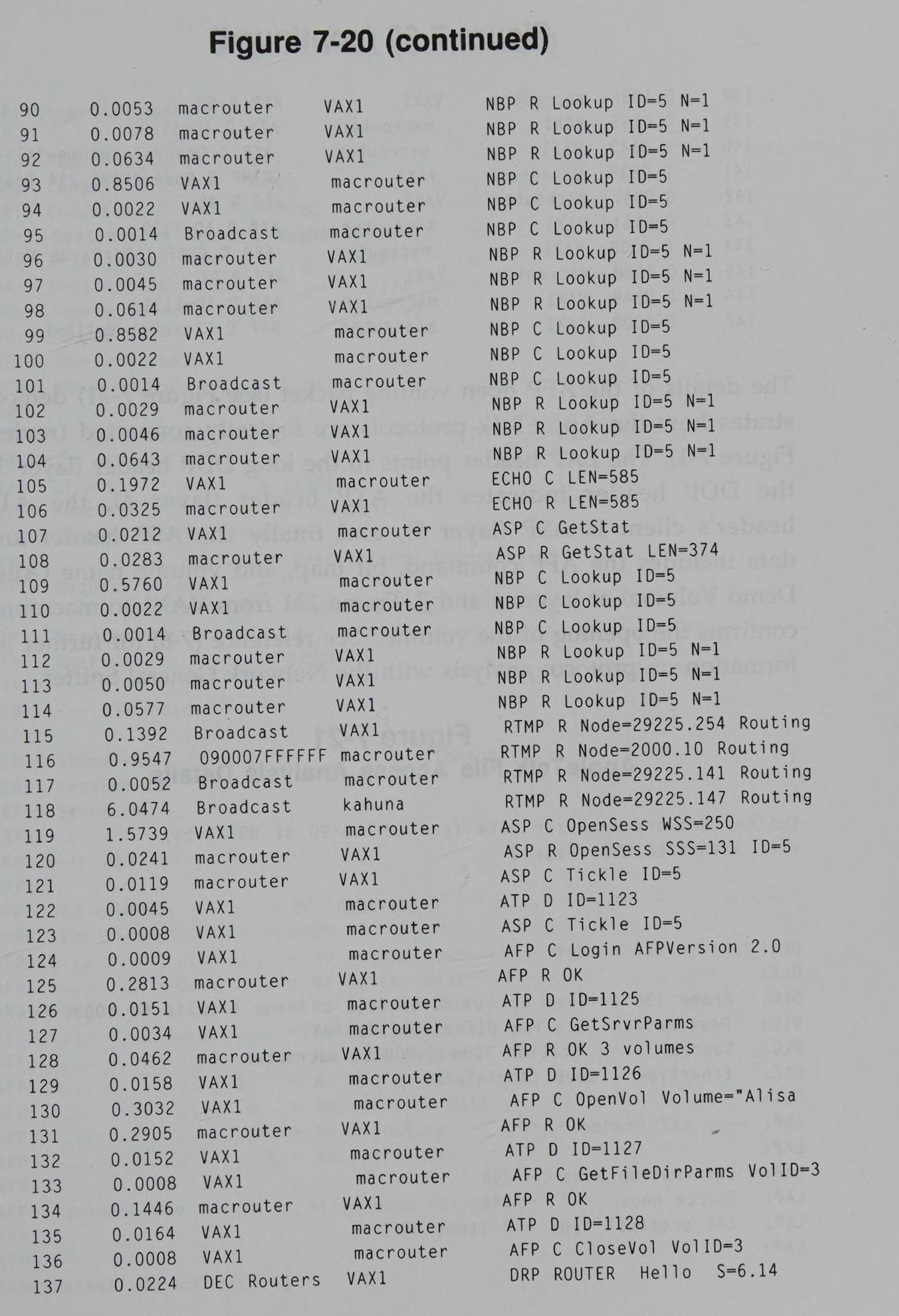

90	0.0053	macrouter	VAX1	NBP R Lookup ID=5 N=1
91	0.0078	macrouter	VAX1	NBP R Lookup ID=5 N=1
92	0.0634	macrouter	VAX1	NBP R Lookup ID=5 N=1
93	0.8506	VAX1	macrouter	NBP C Lookup ID=5
94	0.0022	VAX1	macrouter	NBP C Lookup ID=5
95	0.0014	Broadcast	macrouter	NBP C Lookup ID=5
96	0.0030	macrouter	VAX1	NBP R Lookup ID=5 N=1
97	0.0045	macrouter	VAX1	NBP R Lookup ID=5 N=1
98	0.0614	macrouter	VAX1	NBP R Lookup ID=5 N=1
99	0.8582	VAX1	macrouter	NBP C Lookup ID=5
100	0.0022	VAX1	macrouter	NBP C Lookup ID=5
101	0.0014	Broadcast	macrouter	NBP C Lookup ID=5
102	0.0029	macrouter	VAX1	NBP R Lookup ID=5 N=1
103	0.0046	macrouter	VAX1	NBP R Lookup ID=5 N=1
104	0.0643	macrouter	VAX1	NBP R Lookup ID=5 N=1
105	0.1972	VAX1	macrouter	ECHO C LEN=585
106	0.0325	macrouter	VAX1	ECHO R LEN=585
107	0.0212	VAX1	macrouter	ASP C GetStat
108	0.0283	macrouter	VAX1	ASP R GetStat LEN=374
109	0.5760	VAX1	macrouter	NBP C Lookup ID=5
110	0.0022	VAX1	macrouter	NBP C Lookup ID=5
111	0.0014	Broadcast	macrouter	NBP C Lookup ID=5
112	0.0029	macrouter	VAX1	NBP R Lookup ID=5 N=1
113	0.0050	macrouter	VAX1	NBP R Lookup ID=5 N=1
114	0.0577	macrouter	VAX1	NBP R Lookup ID=5 N=1
115	0.1392	Broadcast	VAX1	RTMP R Node=29225.254 Routing
116	0.9547	090007FFFFFF	macrouter	RTMP R Node=2000.10 Routing
117	0.0052	Broadcast	macrouter	RTMP R Node=29225.141 Routing
118	6.0474	Broadcast	kahuna	RTMP R Node=29225.147 Routing
119	1.5739	VAX1	macrouter	ASP C OpenSess WSS=250
120	0.0241	macrouter	VAX1	ASP R OpenSess SSS=131 ID=5
121	0.0119	macrouter	VAX1	ASP C Tickle ID=5
122	0.0045	VAX1	macrouter	ATP D ID=1123
123	0.0008	VAX1	macrouter	ASP C Tickle ID=5
124	0.0009	VAX1	macrouter	AFP C Login AFPVersion 2.0
125	0.2813	macrouter	VAX1	AFP R OK
126	0.0151	VAX1	macrouter	ATP D ID=1125
127	0.0034	VAX1	macrouter	AFP C GetSrvrParms
128	0.0462	macrouter	VAX1	AFP R OK 3 volumes
129	0.0158	VAX1	macrouter	ATP D ID=1126
130	0.3032	VAX1	macrouter	AFP C OpenVol Volume=”Alisa”
131	0.2905	macrouter	VAX1	AFP R OK
132	0.0152	VAX1	macrouter	ATP D ID=1127
133	0.0008	VAX1	macrouter	AFP C GetFileDirParms VolID=3
134	0.1446	macrouter	VAX1	AFP R OK
135	0.0164	VAX1	macrouter	ATP D ID=1128
136	0.0008	VAX1	macrouter	AFP C CloseVol VolID=3
137	0.0224	DEC Routers	VAX1	DRP ROUTER Hello S=6.14

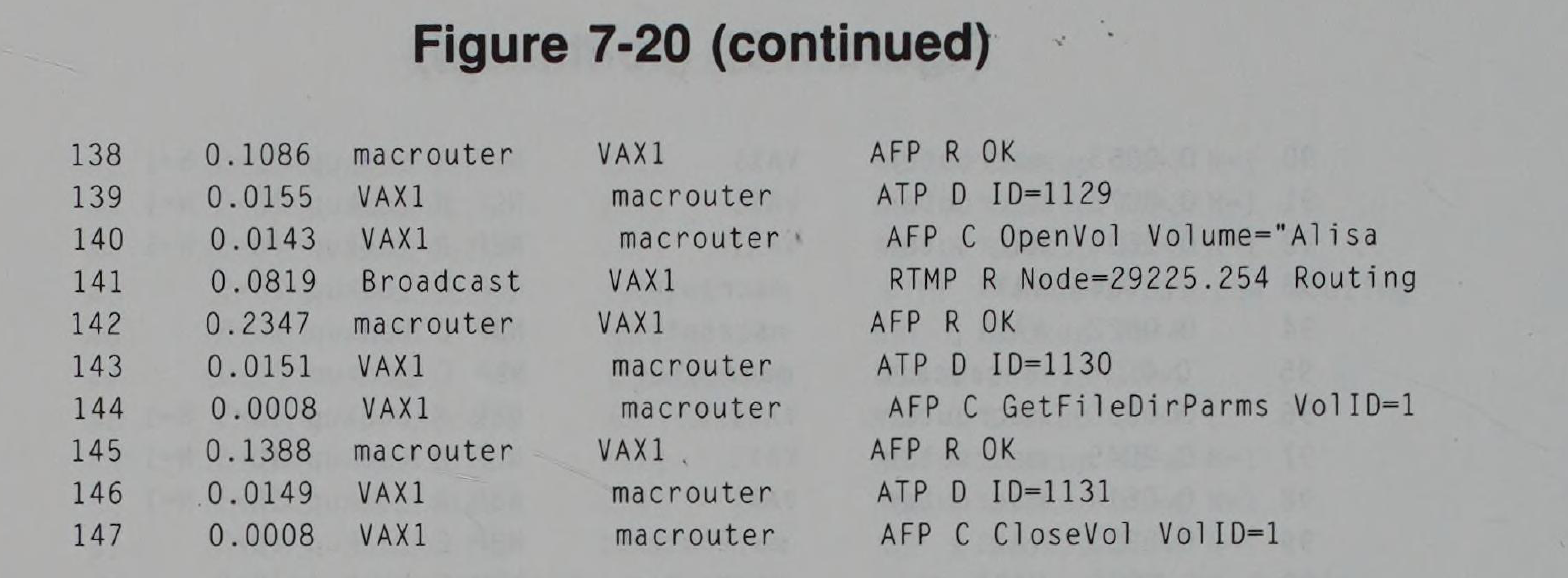

138	0.1086	macrouter	VAX1	AFP R OK
139	0.0155	VAX1	macrouter	ATP D ID=1129
140	0.0143	VAX1	macrouter	AFP C OpenVol Volume=”Alisa
141	0.0819	Broadcast	VAX1	RTMP R Node=29225.254 Routing
142	0.2347	macrouter	VAX1	AFP R OK
143	0.0151	VAX1	macrouter	ATP D ID=1130
144	0.0008	VAX1	macrouter	AFP C GetFileDirParms VolID=1
145	0.1388	macrouter	VAX1	AFP R OK
146	0.0149	VAX1	macrouter	ATP D ID=1131
147	0.0008	VAX1	macrouter	AFP C CloseVol VolID=1

The details of the AFP open volume packet (see Figure 7-21) demonstrates how the AppleTalk protocols are logically connected (review Figure 7-1). The LAP header points to the long DDP header (layer 3), the DDP header indicates the ATP header (layer 4), the ATP header’s client is ASP (layer 5), and finally the ASP header and data includes the AFP command, bit map, and volume name (Alisa Demo Volume) at layers 6 and 7. Frame 131 from VAX1 to macrouter confirms the opening of the volume. See reference [7-8] for further information on protocol analysis with the Network General Sniffer.

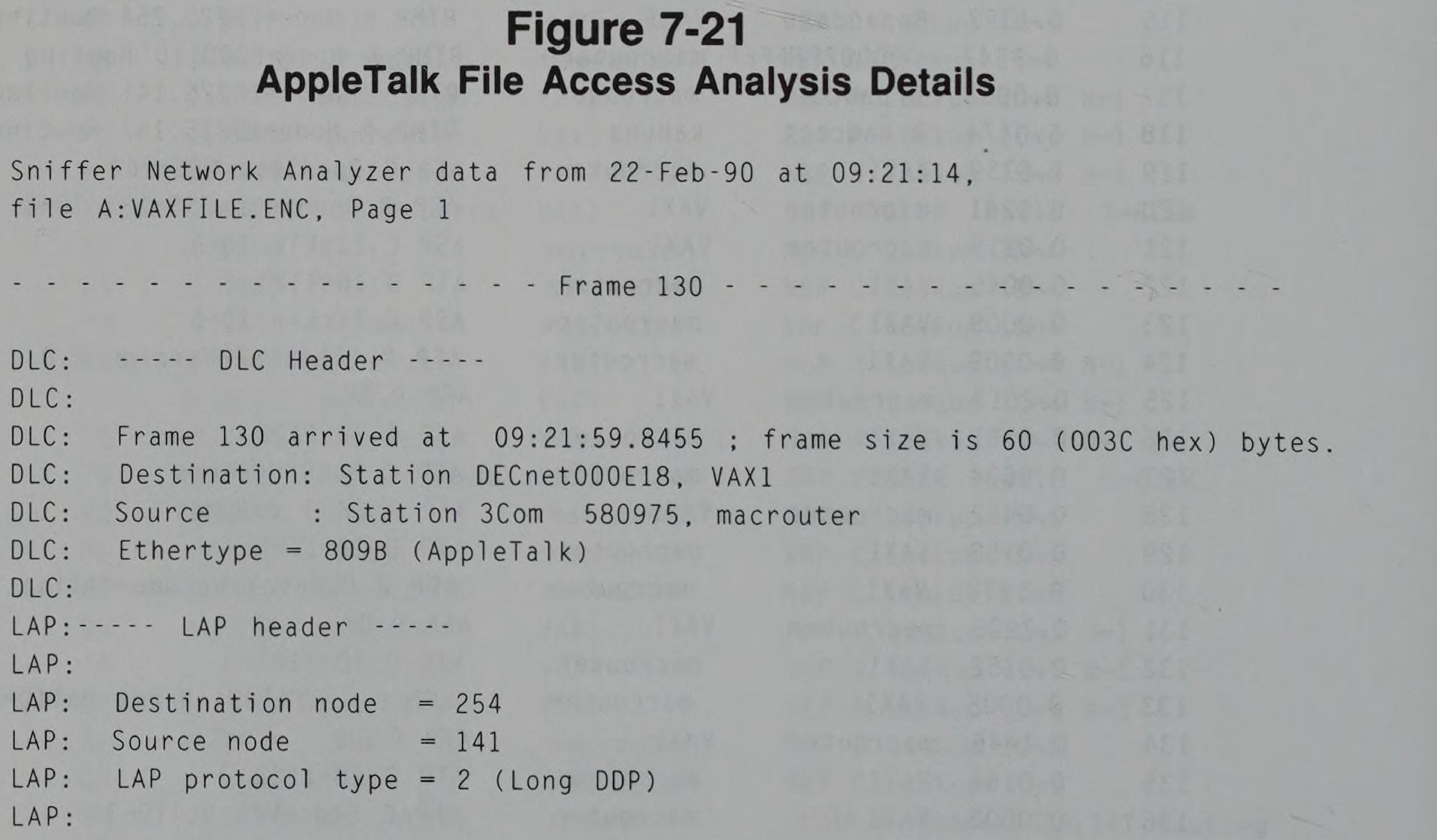

Figure 7-21 AppleTalk File Access Analysis Details

AppleTalk File Access Analysis Details Protocol decode for Figure 7-21 continued Protocol decode of Frame 131 showing DLC, LAP, DDP, ATP, ASP, and AFP layers. AFP Protocol trace bits for Volume ID request

Sniffer Network Analyzer data from 22-Feb-90 at 09:21:14,
file A:VAXFILE.ENC, Page 1

- - - - - - - - - - - - - - - - - - Frame 130 - - - - - - - - - - - - - - - - -

DLC:  - - - - DLC Header - - - - -
DLC:
DLC:  Frame 130 arrived at  09:21:59.8455 ; frame size is 60 (003C hex) bytes.
DLC:  Destination: Station DECnet000E18, VAX1
DLC:  Source       : Station 3Com    580975, macrouter
DLC:  Ethertype = 809B (AppleTalk)
DLC:
LAP: - - - - LAP header - - - - -
LAP:
LAP:  Destination node = 254
LAP:  Source node      = 141
LAP:  LAP protocol type = 2 (Long DDP)
LAP:

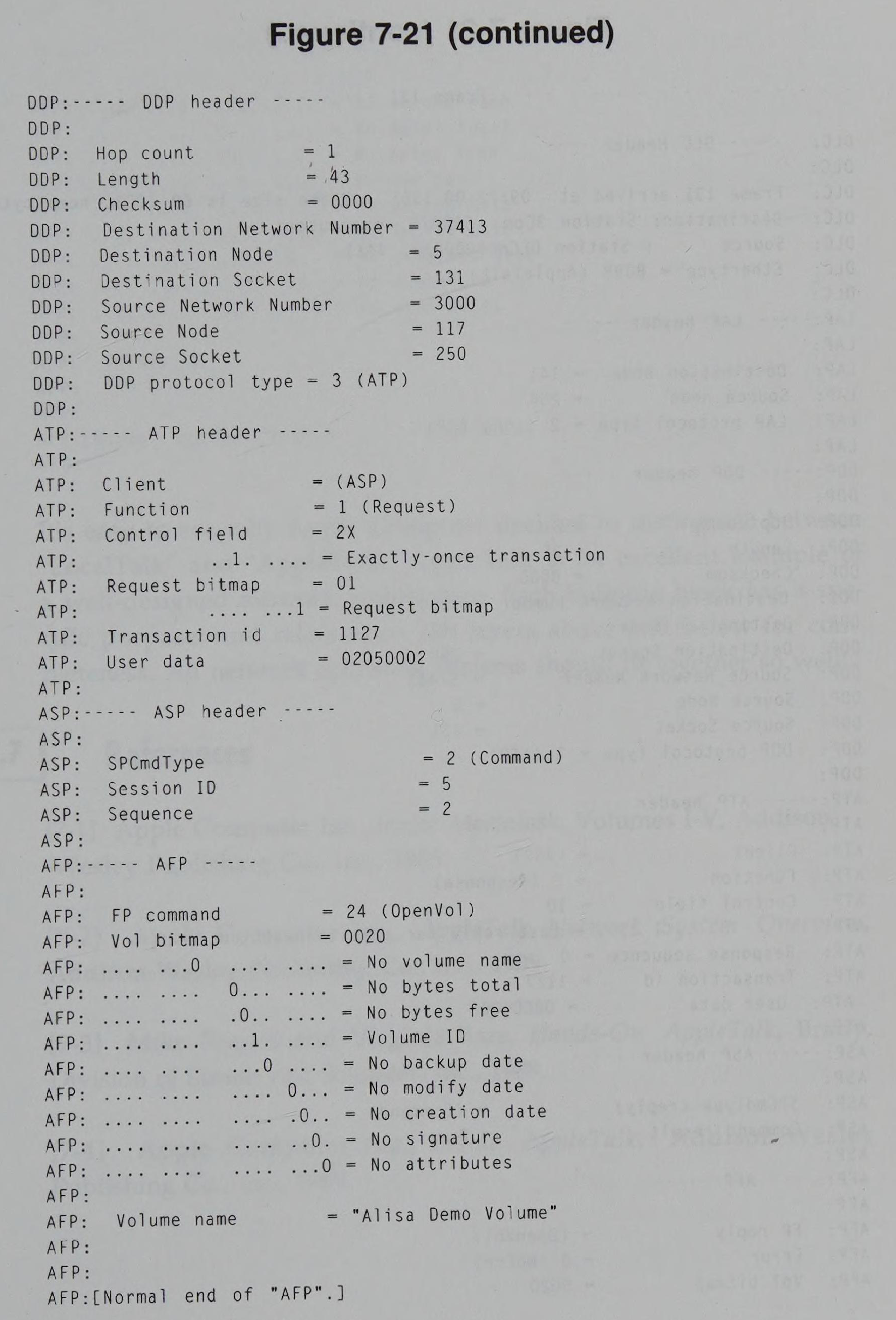

DDP:----- DDP header -----
DDP:
DDP:  Hop count                  = 1
DDP:  Length                     = 43
DDP:  Checksum                   = 0000
DDP:  Destination Network Number = 37413
DDP:  Destination Node           = 5
DDP:  Destination Socket         = 131
DDP:  Source Network Number      = 3000
DDP:  Source Node                = 117
DDP:  Source Socket              = 250
DDP:  DDP protocol type = 3 (ATP)
DDP:
ATP:----- ATP header -----
ATP:
ATP:  Client                     = (ASP)
ATP:  Function                   = 1 (Request)
ATP:  Control field              = 2X
ATP:              ..1. ....      = Exactly-once transaction
ATP:  Request bitmap             = 01
ATP:              .... ...1      = Request bitmap
ATP:  Transaction id             = 1127
ATP:  User data                  = 02050002
ATP:
ASP:----- ASP header -----
ASP:
ASP:  SPCmdType                  = 2 (Command)
ASP:  Session ID                 = 5
ASP:  Sequence                   = 2
ASP:
AFP:----- AFP -----
AFP:
AFP:  FP command                 = 24 (OpenVol)
AFP:  Vol bitmap                 = 0020
AFP:  ....  ...0  ....  ....     = No volume name
AFP:  ....  ....  0...  ....     = No bytes total
AFP:  ....  ....  .0..  ....     = No bytes free
AFP:  ....  ....  ..1.  ....     = Volume ID
AFP:  ....  ....  ...0  ....     = No backup date
AFP:  ....  ....  ....  0...     = No modify date
AFP:  ....  ....  ....  .0..     = No creation date
AFP:  ....  ....  ....  ..0.     = No signature
AFP:  ....  ....  ....  ...0     = No attributes
AFP:
AFP:  Volume name                = "Alisa Demo Volume"
AFP:
AFP:
AFP:[Normal end of "AFP".]

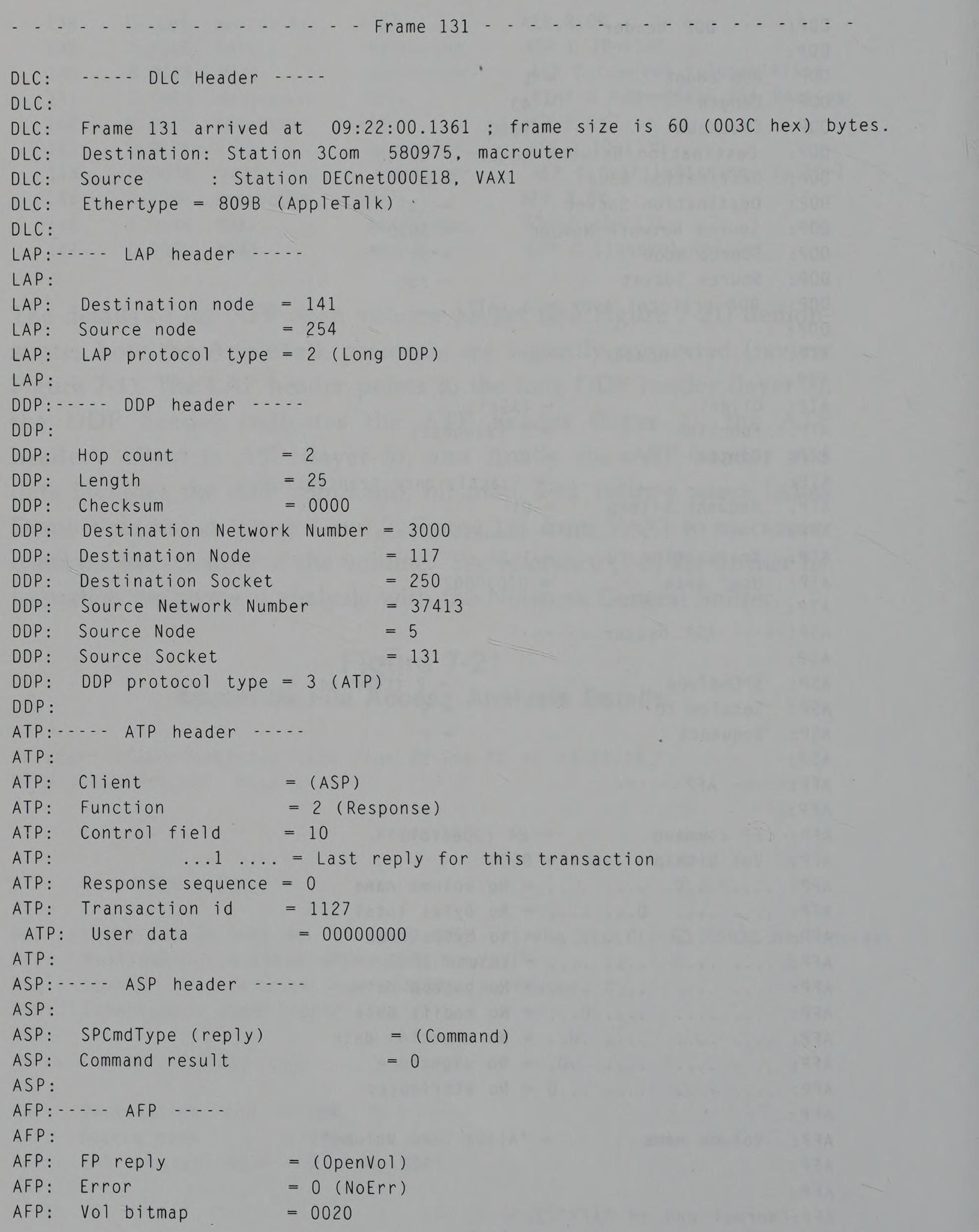

- - - - - - - - - - - - Frame 131 - - - - - - - - - - - -

DLC: ----- DLC Header -----
DLC:
DLC: Frame 131 arrived at 09:22:00.1361 ; frame size is 60 (003C hex) bytes.
DLC: Destination: Station 3Com 580975, macrouter
DLC: Source      : Station DECnet000E18, VAX1
DLC: Ethertype = 809B (AppleTalk)
DLC:
LAP:---- LAP header -----
LAP:
LAP: Destination node = 141
LAP: Source node      = 254
LAP: LAP protocol type = 2 (Long DDP)
LAP:
DDP:----- DDP header -----
DDP:
DDP: Hop count              = 2
DDP: Length                 = 25
DDP: Checksum               = 0000
DDP: Destination Network Number = 3000
DDP: Destination Node           = 117
DDP: Destination Socket         = 250
DDP: Source Network Number      = 37413
DDP: Source Node                = 5
DDP: Source Socket              = 131
DDP: DDP protocol type = 3 (ATP)
DDP:
ATP:---- ATP header -----
ATP:
ATP: Client             = (ASP)
ATP: Function           = 2 (Response)
ATP: Control field      = 10
ATP:           ...1 .... = Last reply for this transaction
ATP: Response sequence  = 0
ATP: Transaction id     = 1127
ATP: User data          = 00000000
ATP:
ASP:---- ASP header -----
ASP:
ASP: SPCmdType (reply)       = (Command)
ASP: Command result          = 0
ASP:
AFP:---- AFP -----
AFP:
AFP: FP reply           = (OpenVol)
AFP: Error              = 0 (NoErr)
AFP: Vol bitmap         = 0020

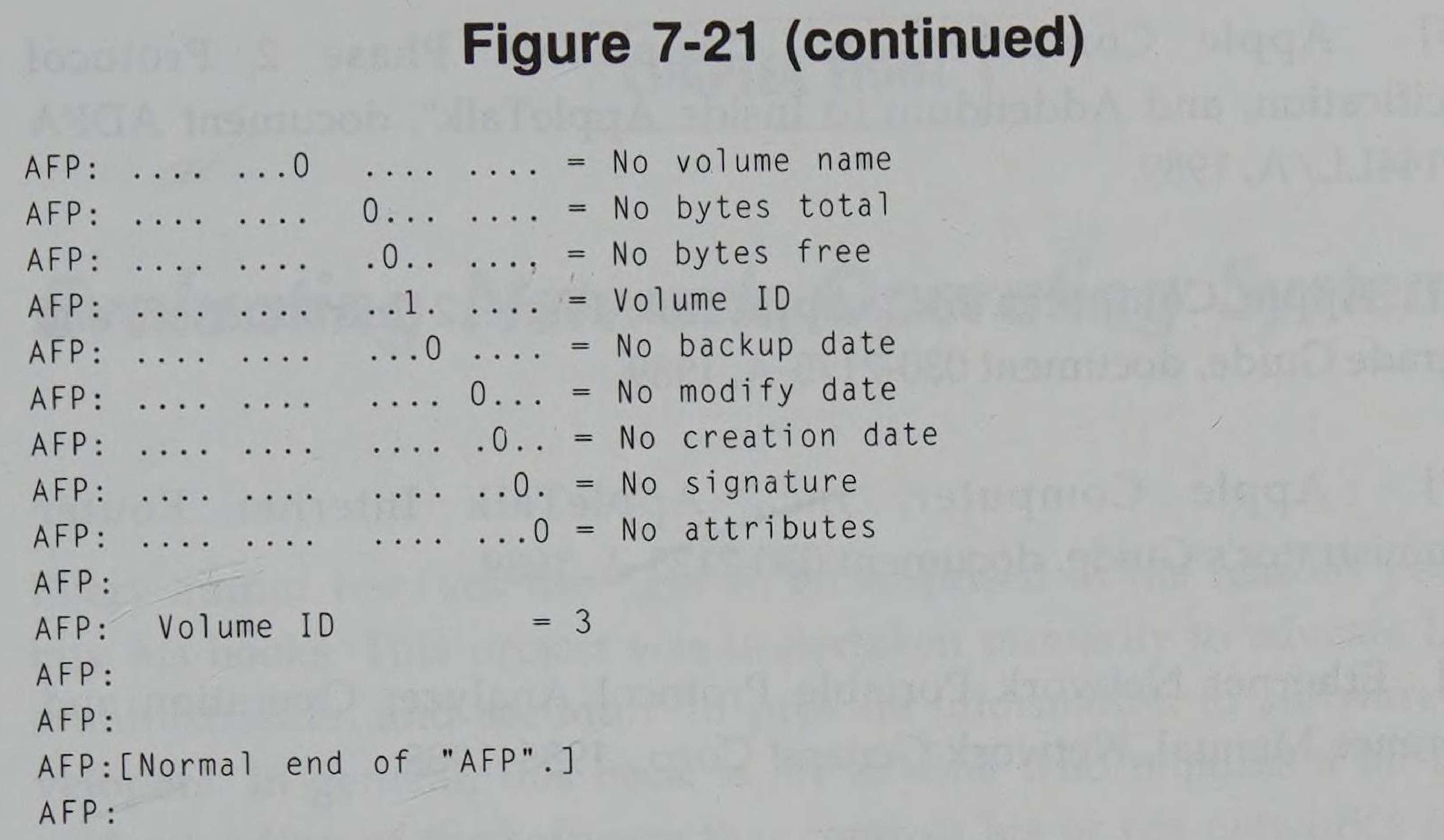

AFP: .... ...0           = No volume name
AFP: .... .... 0... .... = No bytes total
AFP: .... .... .0.. .... = No bytes free
AFP: .... .... ..1. .... = Volume ID
AFP: .... .... ...0 .... = No backup date
AFP: .... .... .... 0... = No modify date
AFP: .... .... .... .0.. = No creation date
AFP: .... .... .... ..0. = No signature
AFP: .... .... .... ...0 = No attributes
AFP:
AFP: Volume ID           = 3
AFP:
AFP:
AFP: [Normal end of "AFP".]
AFP:

packet-beta
0: "Attributes"
1: "Signature"
2: "Creation Date"
3: "Modification Date"
4: "Backup Date"
5: "Volume ID"
6: "Bytes Free"
7: "Bytes Total"
8: "Volume Name"
9-15: "Reserved"

Field	Bit offset	Width (bits)	Description
Attributes	0	1	Flag for volume attributes
Signature	1	1	Flag for volume signature
Creation Date	2	1	Flag for volume creation date
Modification Date	3	1	Flag for volume modification date
Backup Date	4	1	Flag for volume backup date
Volume ID	5	1	Flag for Volume ID
Bytes Free	6	1	Flag for bytes free on volume
Bytes Total	7	1	Flag for total bytes on volume
Volume Name	8	1	Flag for volume name
Reserved	9	7	Reserved bits

It’s easy to see why Apple Computer decided to distinguish between “LocalTalk” and “AppleTalk.” AppleTalk is an excellent example of a well-designed network architecture. Each building block has a specific purpose, and relies upon the layers above and below for completeness. All network operating systems should fit together so well!

7.7 References

[7-1] Apple Computer Inc., Inside Macintosh, Volumes I-V, Addison-Wesley Publishing Co., Inc., 1985

[7-2] Apple Computer Inc., AppleTalk Network System Overview, Addison-Wesley Publishing Co., Inc., 1989.

[7-3] Mike Rogers and Virginia Bare, Hands-On AppleTalk, Brady, Division of Simon and Schuster, Inc., 1989.

[7-4] Apple Computer Inc., Inside AppleTalk, Addison-Wesley Publishing Co., Inc., 1989.

[7-5] Apple Computer Inc., “AppleTalk Phase 2 Protocol Specification, and Addendum to Inside AppleTalk”, document ADPA #C0144LL/A, 1989.

[7-6] Apple Computer Inc., AppleTalk Phase 2 Introduction and Upgrade Guide, document 030-2175-A, 1989.

[7-7] Apple Computer, Inc., AppleTalk Internet Router Administrator’s Guide, document 030-2175-A, 1989.

[7-8] Ethernet Network Portable Protocol Analyzer Operation and Reference Manual, Network General Corp., 1986–1988.
