This appendix summarizes various numerical quantities used in the AppleTalk protocols. This information is organized into subsections, one for each relevant protocol. A $ symbol is used to denote hexadecimal; a % symbol represents binary numbers. All other numerals are decimal.

LLAP parameters

This section provides values for the LLAP type field, timing constants used by LLAP, and LLAP frame parameters.

LLAP type field values Description
$00 invalid LLAP type value (do not use)
$01 through $7F valid LLAP type values for use in LLAP client packets
    $01 through $0F reserved for Apple Computer’s use only
        $01 DDP short-form header packet
        $02 DDP extended-form header packet
        $0F experimental LLAP packet (reserved for Apple Computer’s use only)
$80 through $FF reserved for LLAP control frames
    $81 lapENQ packet
    $82 lapACK packet
    $84 lapRTS packet
    $85 lapCTS packet

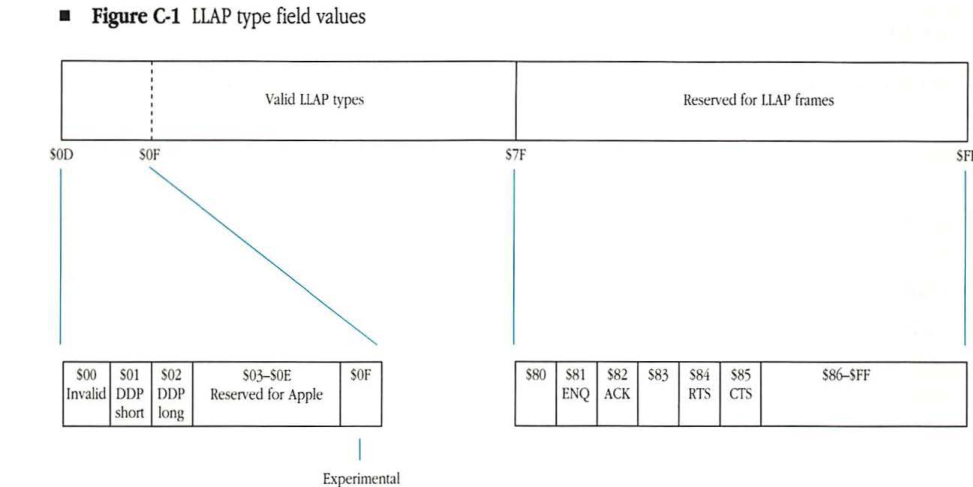

Figure C-1 LLAP type field values

Diagram showing the allocation of values for the LLAP type field, with specific ranges for valid LLAP types and reserved LLAP frames.

packet-beta
0-7: "LLAP Type Field"
Value (Hex) Bit offset Width (bits) Description
$00 0 8 Invalid
$01 0 8 DDP short
$02 0 8 DDP long
$03–$0E 0 8 Reserved for Apple
$0F 0 8 Experimental
$10–$7F 0 8 Valid LLAP types
$81 0 8 ENQ (Control frame)
$82 0 8 ACK (Control frame)
$84 0 8 RTS (Control frame)
$85 0 8 CTS (Control frame)
$80, $83, $86–$FF 0 8 Reserved for LLAP frames
LLAP timing constant Value
interframe gap (IFG) less than 200 microseconds
interdialogue gap (IDG) at least 400 microseconds
IDG slot time 100 microseconds
LLAP frame parameter Description
flag byte used for framing an LLAP packet %01111110
number of flag bytes needed at the start of a frame 2 or more flag bytes
number of bits in abort sequence 12–18 bits
maximum number of data bytes in LLAP packet (not including LLAP header, frame preamble, and frame trailer) 600 bytes

AARP parameters

AARP packet parameter Description
SNAP protocol discriminator for AARP packets $00000080F3
broadcast destination address for AARP packets on Ethernet $090007FFFFFF
broadcast destination address for AARP packets on token ring $C00040000000
AARP command Value
AARP Request 1
AARP Response 2
AARP Probe 3

EtherTalk and TokenTalk parameters

Packet parameter Description
SNAP protocol discriminator for AppleTalk packets $080007809B
broadcast destination address for AppleTalk packets on Ethernet $090007FFFFFF (EtherTalk)
broadcast destination address for AppleTalk packets on token ring $C00040000000 (TokenTalk)
AARP values as used for EtherTalk Description
hardware type indicating Ethernet 1
hardware type indicating token ring 2
protocol type indicating AppleTalk $809B
Ethernet hardware address length 6 bytes
AppleTalk protocol address length 4 bytes (high byte must be 0)
AARP probe retransmission interval 1/5 of a second
AARP probe retry count 10

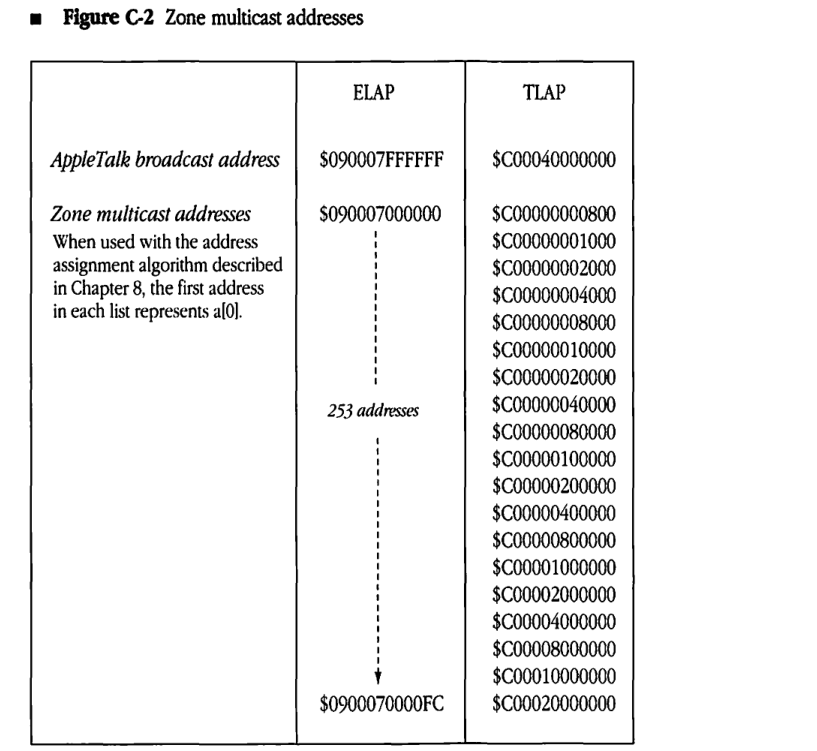

Figure C-2 Zone multicast addresses

Zone multicast addresses

  ELAP TLAP
AppleTalk broadcast address $090007FFFFFF $C00040000000
Zone multicast addresses
When used with the address assignment algorithm described in Chapter 8, the first address in each list represents a[0].		 $090007000000
⋮
253 addresses
⋮
$0900070000FC		 $C00000000800
$C00000001000
$C00000002000
$C00000004000
$C00000008000
$C00000010000
$C00000020000
$C00000040000
$C00000080000
$C00000100000
$C00000200000
$C00000400000
$C00000800000
$C00001000000
$C00002000000
$C00004000000
$C00008000000
$C00010000000
$C00020000000

DDP parameters

This section provides values for DDP packet parameters, protocol type fields, and socket numbers.

DDP packet parameter Description
LLAP type value for short-form header DDP packet 1
LLAP type value for extended-form header DDP packet 2
maximum number of data bytes in a DDP packet 586 bytes
DDP type field value Description
$00 invalid DDP type value (do not use)
$01 through $FF valid DDP type values for use in DDP client packets
    $01 through $0F reserved for Apple Computer’s use only
        $01 RTMP Response or Data packet
        $02 NBP packet
        $03 ATP packet
        $04 AEP packet
        $05 RTMP Request packet
        $06 ZIP packet
        $07 ADSP packet

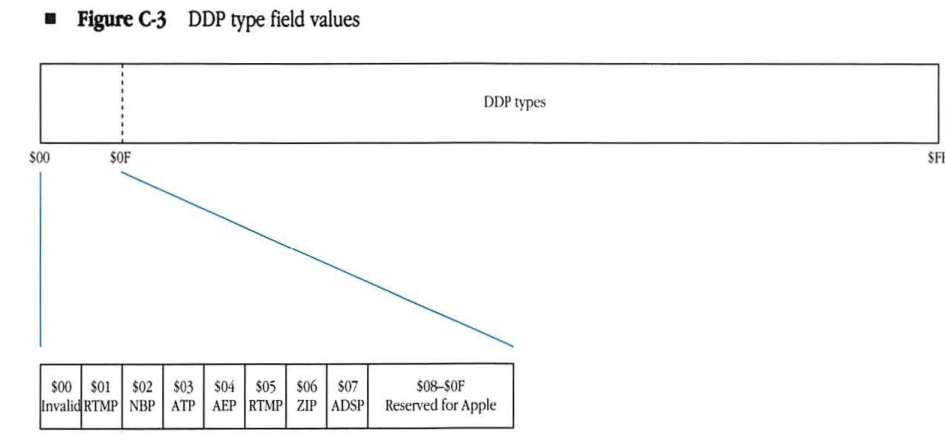

Figure C-3 DDP type field values

DDP type field values

Hex Value Assigned Value/Meaning
$00 Invalid
$01 RTMP
$02 NBP
$03 ATP
$04 AEP
$05 RTMP
$06 ZIP
$07 ADSP
$08–$0F Reserved for Apple
$10–$FF DDP types
DDP socket value Description
$00 invalid (do not use)
$FF invalid (do not use)
$01 through $FE valid DDP sockets
  $01 through $7F statically assigned sockets
    $01 through $3F reserved for Apple Computer’s use only
      $01 RTMP socket
      $02 names information socket (NIS)
      $04 Echoer socket
      $06 zone information socket (ZIS)
  $40 through $7F experimental use only (do not use in released products)

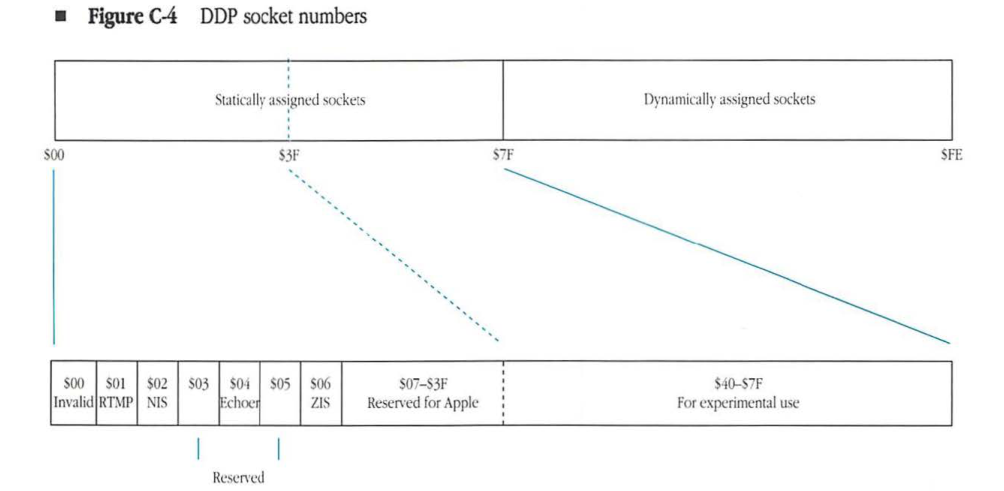

Figure C-4 DDP socket numbers

DDP socket numbers diagram showing statically and dynamically assigned socket ranges.

RTMP parameters

RTMP packet parameter Description
DDP type value for RTMP Response and Data packets 1
DDP type value for RTMP Request packets 5
RTMP Request packet function field value 1
RTMP Route Data Request packet function value 2 (split horizon processed)
3 (no split horizon processing)
RTMP timer value Description
send-RTMP timer 10 seconds
validity timer 20 seconds
timer for aging A-ROUTER in a nonrouter node 50 seconds
Miscellaneous value Description
RTMP listening socket socket 1
maximum number of hops supported 16 hops

AEP parameters

AEP socket parameter Number
AEP socket socket 4
AEP packet parameter Description
DDP type value for AEP packets 4
Echo function values 1 = Echo Request
2 = Echo Reply
maximum data size 585 bytes

NBP parameters

NBP socket parameter Description
names information socket (NIS) socket 2
maximum number of characters in object, type, or zone fields 32 characters
Wildcard symbol Description
* used only in the zone field of an entity name to mean the zone of the packet’s sender
= used as the object and/or type field of an entity name to mean all objects and/or all types (cannot be used as the zone field)
≈ characters within object and/or type field used to match zero or more characters. Maximum of one per field.
NBP packet parameter Description
DDP type value for NBP packets 2
NBP control field value 1 = BrRq
2 = LkUp
3 = LkUp-Reply
4 = FwdReq

ZIP parameters

ZIP socket parameter Number
zone information socket socket 6
ZIP function Value
ZIP Query 1
ZIP Reply 2
ZIP GetNetInfo 5
ZIP GetNetInfoReply 6
ZIP Extended Reply 8
ZIP Notify 7
ZIP GetMyZone 7 (in ATP user bytes)
ZIP GetZoneList 8 (in ATP user bytes)
ZIP GetLocalZones 9 (in ATP user bytes)
ZIP timer value Description
Query retransmission time 10 seconds
ZIP bringback time 10 minutes

ATP parameters

ATP packet parameter Description
DDP type value for ATP packets 3
function code values %01 = TReq
%10 = TResp
%11 = TRel
maximum size of data in ATP packet 578 bytes
ATP TRel timer indicator Value
000 30 seconds
001 1 minute
100 8 minutes

PAP parameters

PAP type Value
OpenConn 1
OpenConnReply 2
SendData 3
Data 4
Tickle 5
CloseConn 6
CloseConnReply 7
SendStatus 8
StatusReply 9
PAP packet parameter Description
maximum data size 512 bytes
maximum length of status string 255 bytes (not including the length byte)
PAP timer value Description
OpenConn request ATP retry timer 2 seconds
tickle timer 60 seconds
connection timer 2 minutes
SendData request retry timer 15 seconds
PAP retry count value Description
OpenConn request retry count 5
PAP result code Description
PrinterBusy $FFFF

ASP parameters

SPFunction Value
CloseSession 1
Command 2
GetStatus 3
OpenSess 4
Tickle 5
Write 6
WriteContinue 7
Attention 8
ASP timer value Description
tickle timer 30 seconds
session maintenance timer 2 minutes
Decimal value Hex value SPError
0 ($00) NoError*
-1066 $FBD6 BadVersNum†
-1067 $FBD5 BufTooSmall†
-1068 $FBD4 NoMoreSessions*
-1069 $FBD3 NoServers†
-1070 $FBD2 ParamErr*
-1071 $FBD1 ServerBusy†
-1072 $FBD0 SessClosed*
-1073 $FBCF SizeErr*
-1074 $FBCE TooManyClients‡
-1075 $FBCD NoAck‡
  • This error can be returned on both workstation and server ends. † This error can be returned on the workstation end only. ‡ This error can be returned on the server end only.

The ASP version number described in Chapter 11, “AppleTalk Session Protocol,” is version $0100.

The values -1060 to 1065 are reserved for implementation-dependent errors. All other values are invalid in this field. The following error codes are the only ones actually transmitted through ATP (on the OpenSession call): NoError, BadVersNum, and ServerBusy.

ADSP parameters

ADSP control code Value
Probe or Acknowledgment 0
Open Connection Request 1
Open Connection Acknowledgment 2
Open Connection Request and Acknowledgment 3
Open Connection Denial 4
Close Connection Advice 5
Forward Reset 6
Forward Reset Acknowledgment 7
Retransmit Advice 8
ADSP packet parameter Description
DDP type value for ZIP packets 7
maximum data size 572 bytes

AFP parameters

Each function code is a 16-bit integer sent in the packet high-byte first.

Decimal value Hex value AFP function
1 $01 ByteRangeLock
2 $02 CloseVol
3 $03 CloseDir
4 $04 CloseFork
5 $05 CopyFile
6 $06 CreateDir
7 $07 CreateFile
8 $08 Delete
9 $09 Enumerate
10 $0A Flush
11 $0B FlushFork
14 $0E GetForkParms
15 $0F GetSrvrInfo
16 $10 GetSrvrParms
17 $11 GetVolParms
18 $12 Login
19 $13 LoginCont
20 $14 Logout
21 $15 MapID
22 $16 MapName
23 $17 MoveAndRename
24 $18 OpenVol
25 $19 OpenDir
26 $1A OpenFork
27 $1B Read
28 $1C Rename
29 $1D SetDirParms
30 $1E SetFileParms
31 $1F SetForkParms
32 $20 SetVolParms
33 $21 Write
34 $22 GetFileDirParms
35 $23 SetFileDirParms
36 $24 ChangePassword
37 $25 GetUserInfo
48 $30 OpenDT
49 $31 CloseDT
51 $33 GetIcon
52 $34 GetIconInfo
53 $35 AddAPPL
54 $36 RmvAPPL
55 $37 GetAPPL
56 $38 AddComment
57 $39 RmvComment
58 $3A GetComment
192 $C0 AddIcon

Each call returns a result code, which is a 4-byte integer.

Decimal value Hex value FPError
0 $0 NoErr
-5000 $FFFFEC78 AccessDenied
-5001 $FFFFEC77 AuthContinue
-5002 $FFFFEC76 BadUAM
-5003 $FFFFEC75 BadVersNum
-5004 $FFFFEC74 BitmapErr
-5005 $FFFFEC73 CantMove
-5006 $FFFFEC72 DenyConflict
-5007 $FFFFEC71 DirNotEmpty
-5008 $FFFFEC70 DiskFull
-5009 $FFFFEC6F EOFErr
-5010 $FFFFEC6E FileBusy
-5011 $FFFFEC6D FlatVol
-5012 $FFFFEC6C ItemNotFound
-5013 $FFFFEC6B LockErr
-5014 $FFFFEC6A MiscErr
-5015 $FFFFEC69 NoMoreLocks
-5016 $FFFFEC68 NoServer
-5017 $FFFFEC67 ObjectExists
-5018 $FFFFEC66 ObjectNotFound
-5019 $FFFFEC65 ParamErr
-5020 $FFFFEC64 RangeNotLocked
-5021 $FFFFEC63 RangeOverlap
-5022 $FFFFEC62 SessClosed
-5023 $FFFFEC61 UserNotAuth
-5024 $FFFFEC60 CallNotSupported
-5025 $FFFFEC5F ObjectTypeErr
-5026 $FFFFEC5E TooManyFilesOpen
-5027 $FFFFEC5D ServerGoingDown
-5028 $FFFFEC5C CantRename
-5029 $FFFFEC5B DirNotFound
-5030 $FFFFEC5A IconTypeError
-5031 $FFFFEC59 VolLocked
-5032 $FFFFEC58 ObjectLocked
